Front Seat Belt Buckle Replacement

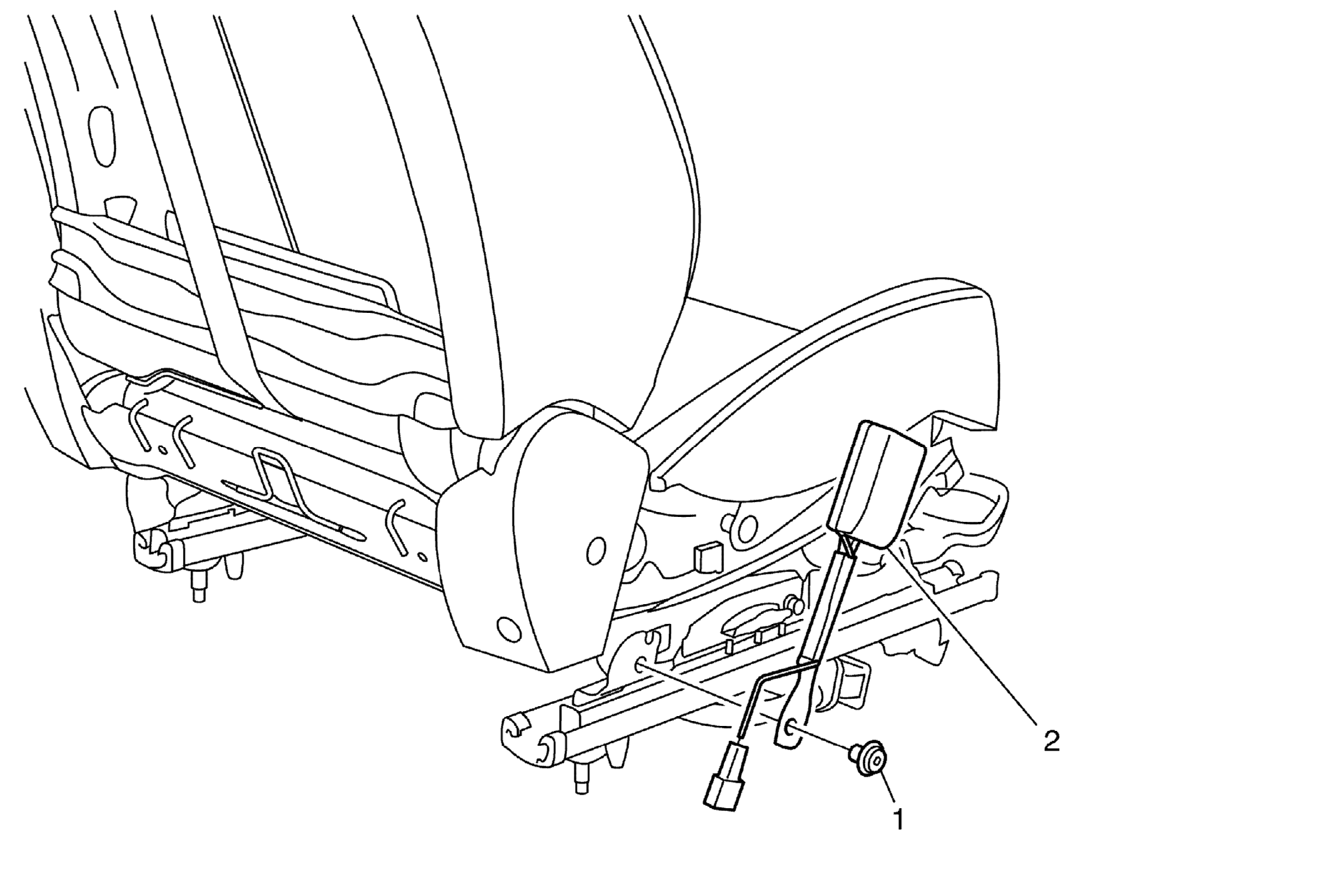

Fig 1: Driver Or Passenger Seat Belt Buckle

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the driver or passenger seat. Refer to Driver or Passenger Seat Replacement (Oshawa 2/4/6-Way Hybrid, 6-Way Sport) .
1	Driver or Passenger Seat Belt Buckle Fastener CAUTION: Refer to Fastener Caution . Tighten 45 N.m (33 lb ft)
2	Driver or Passenger Seat Belt Buckle Procedure Disconnect the electrical connector.
