Steering Gear Drive Coupling Replacement

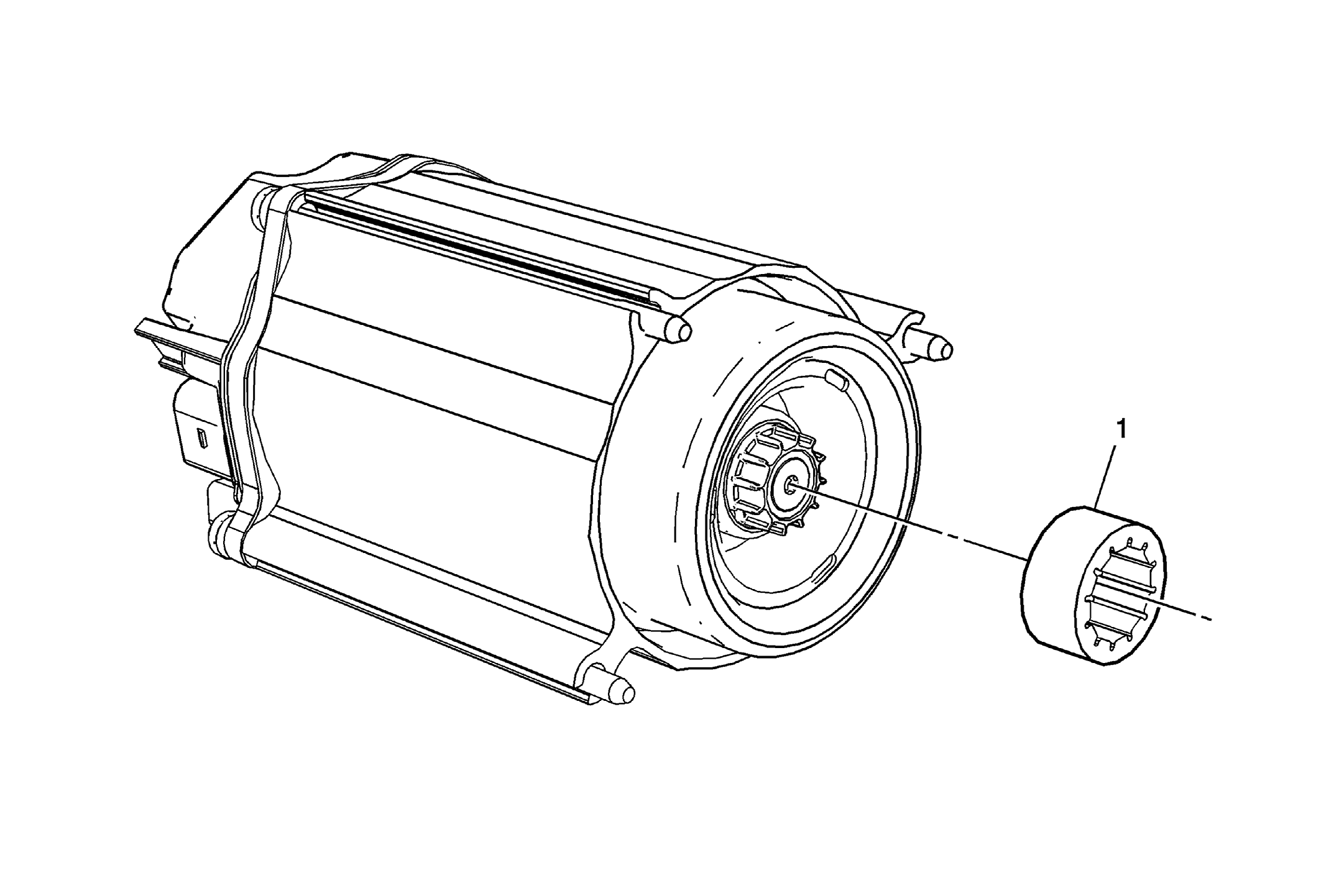

Fig 1: Steering Gear Drive Coupling
GM2262002Courtesy of GENERAL MOTORS COMPANY
Steering Gear Drive Coupling Replacement

Callout Component Name
Preliminary Procedure
Remove the power steering assist motor. Refer to Power Steering Assist Motor Replacement
1 Steering Gear Coupling
TIP:  The steering gear coupling connects the power steering assist motor to the steering gear.
