Steering Power Variable Control Module Replacement

Procedure

1. Disconnect the battery, refer to Battery Negative Cable Disconnection and Connection
2. Remove the Instrument panel lower trim panel insulator, refer to Instrument Panel Lower Trim Panel Insulator Replacement

Procedure

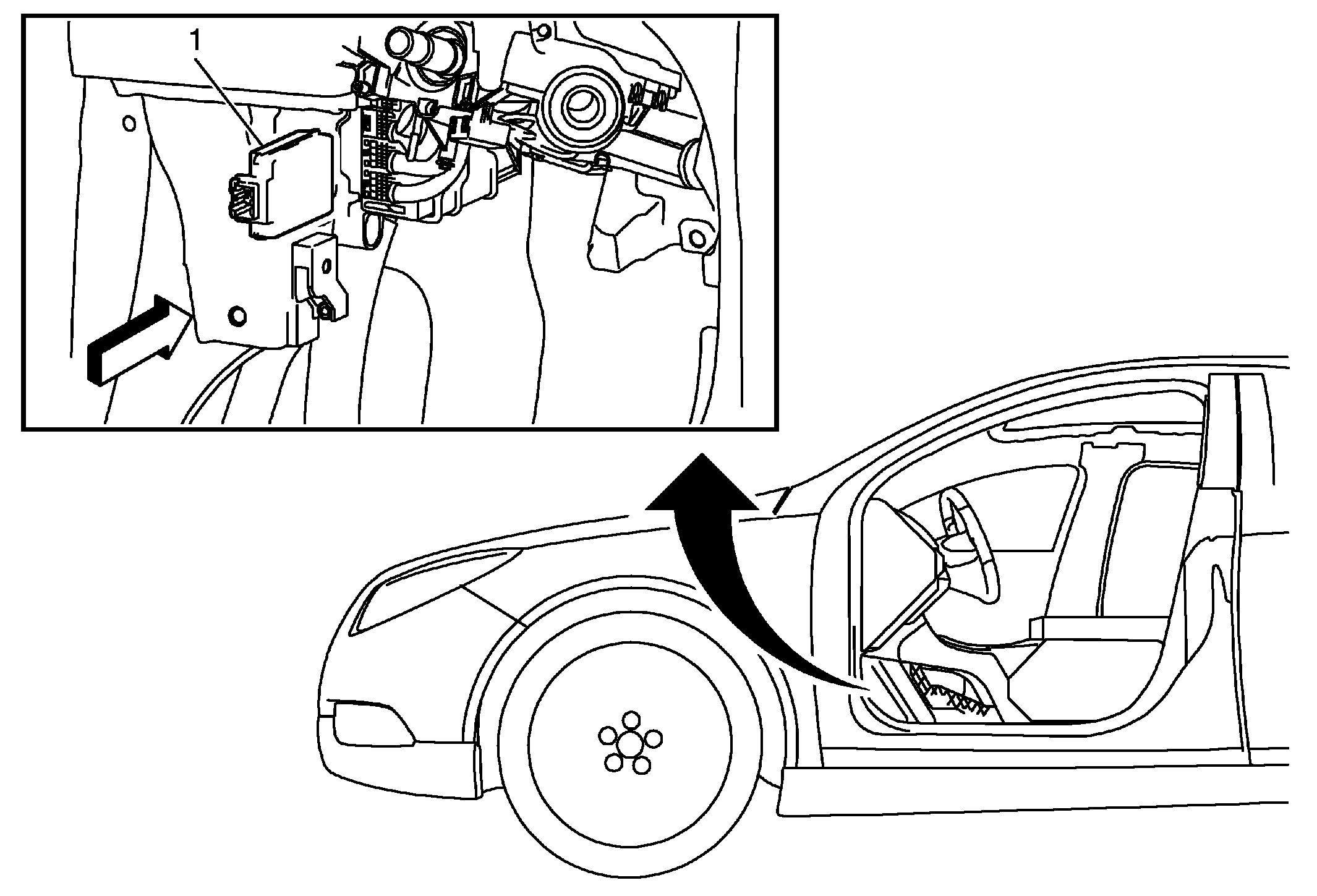

1. Release the control module from its clips.
2. Disconnect the connector from the control module.
3. Refer to Control Module References for programming and setup information.
