Manifold Absolute Pressure Sensor Replacement

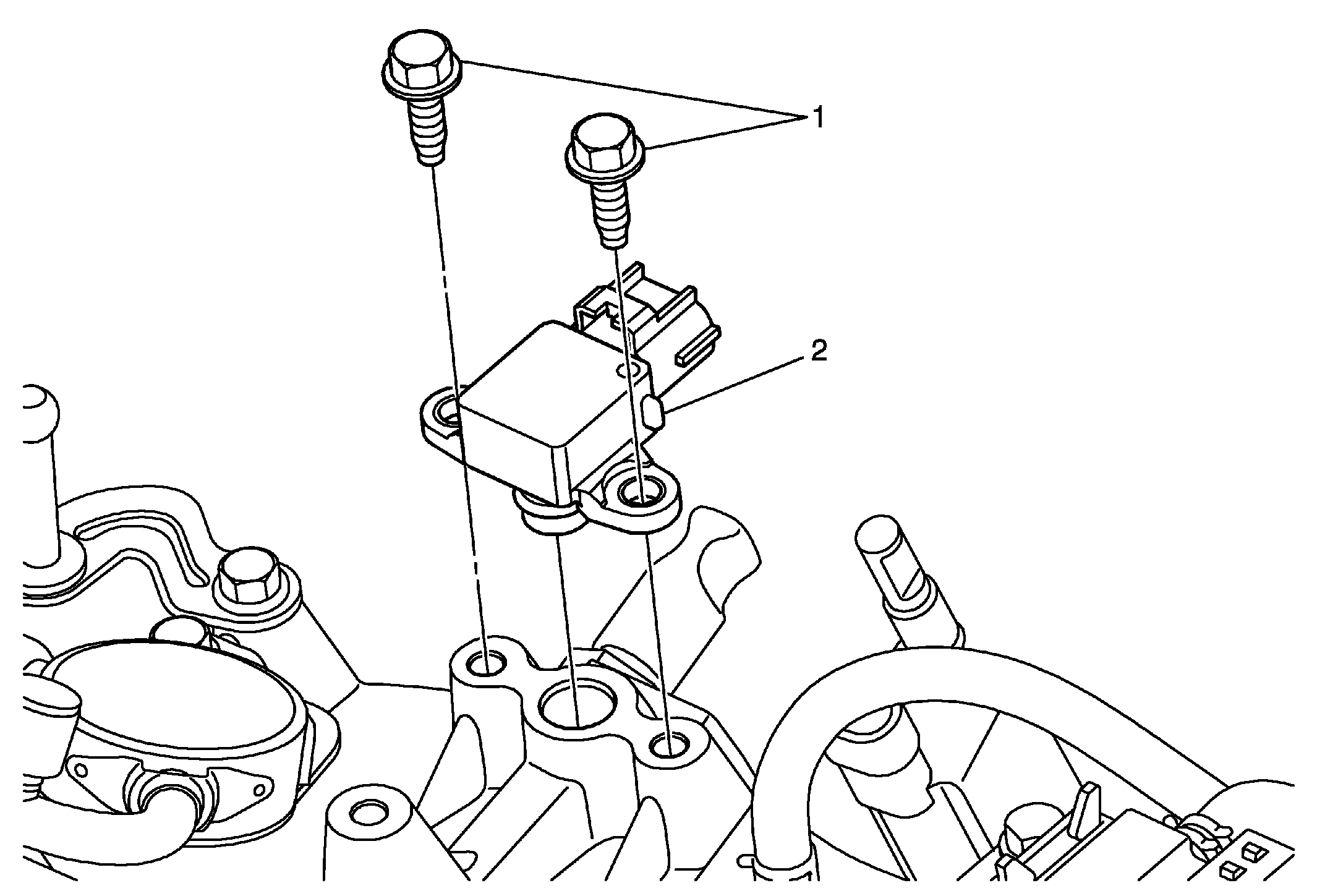

Fig 1: Manifold Absolute Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Manifold Absolute Pressure Sensor Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 4 N.m (36 lb in)
2	Manifold Absolute Pressure Sensor
