Multifunction Switch 2 - Instrument Panel

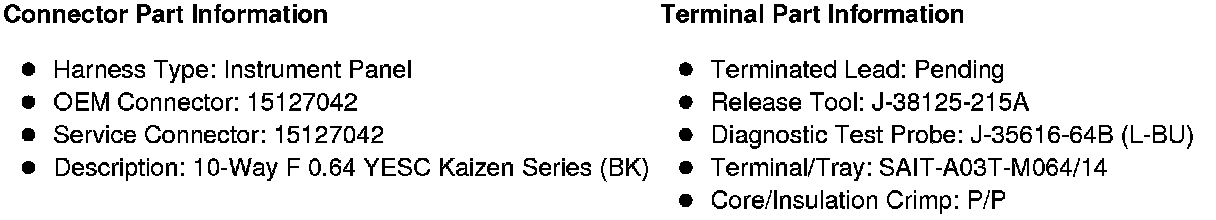

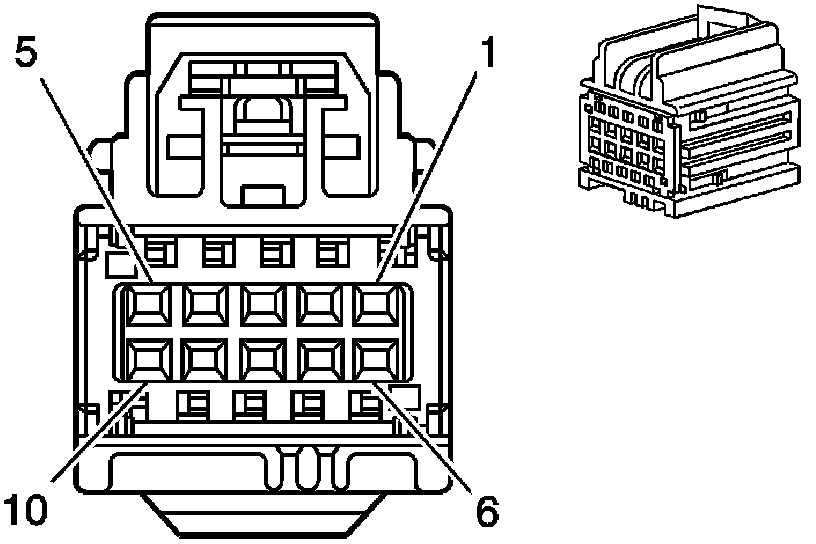

Component Connector End Views

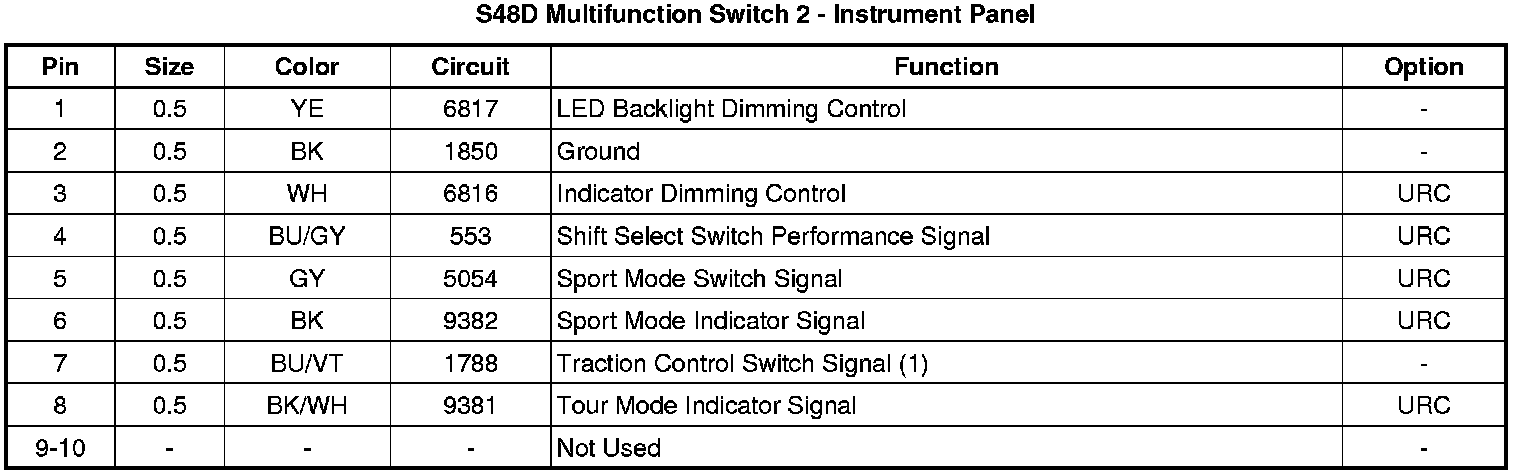

S48D Multifunction Switch 2 - Instrument Panel
