Front Subframe Mount: Service and Repair

Drivetrain and Front Suspension Frame Insulator Replacement


Special Tools


CH-49384 Remover/Installer

For equivalent regional tools, refer to Special Tools .

Removal Procedure

1.Separate the frame from the body approximately 70 mm. Refer to Drivetrain and Front Suspension Frame Replacement .

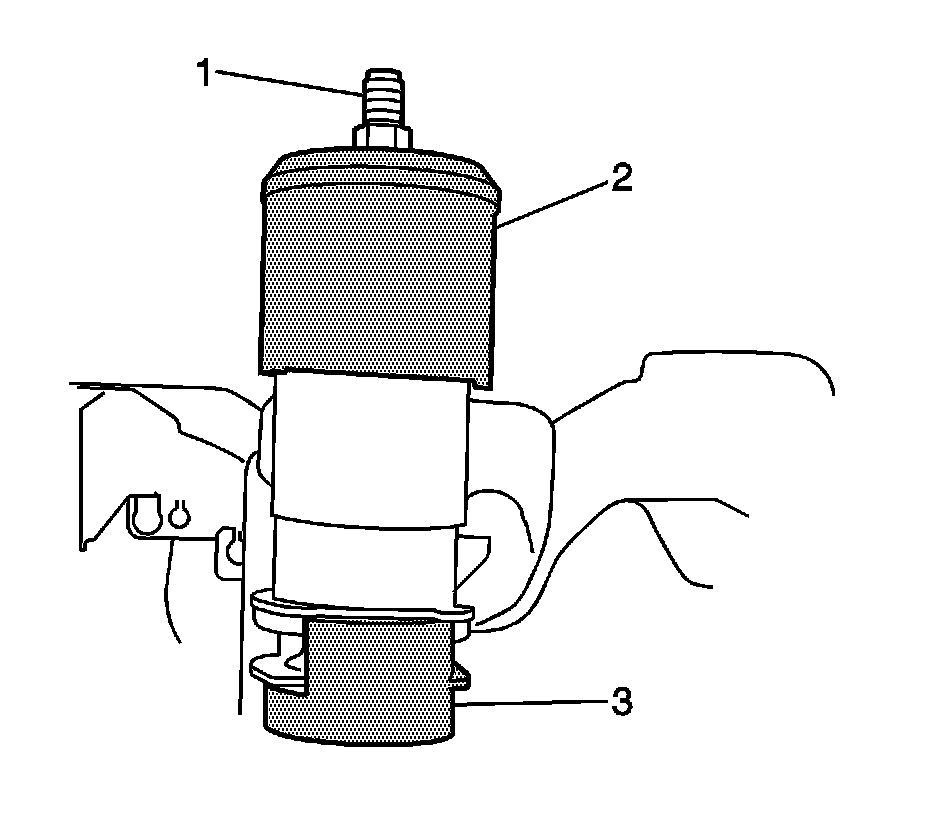

2.Remove the bushings using a
CH-49384 remover/installer (2).

Installation Procedure

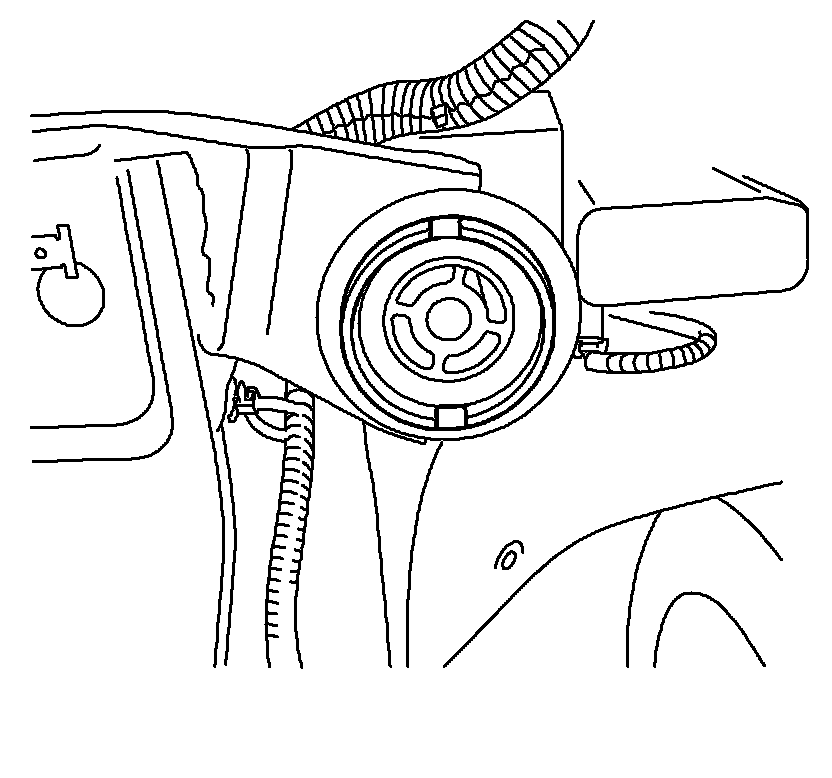

1.Locate the front bushings as shown.





2.Install the bushings using
CH-49384 remover/installer.

3.Install the frame to the body. Refer to Drivetrain and Front Suspension Frame Replacement .
