Telematics Communication Interface Control Module Battery

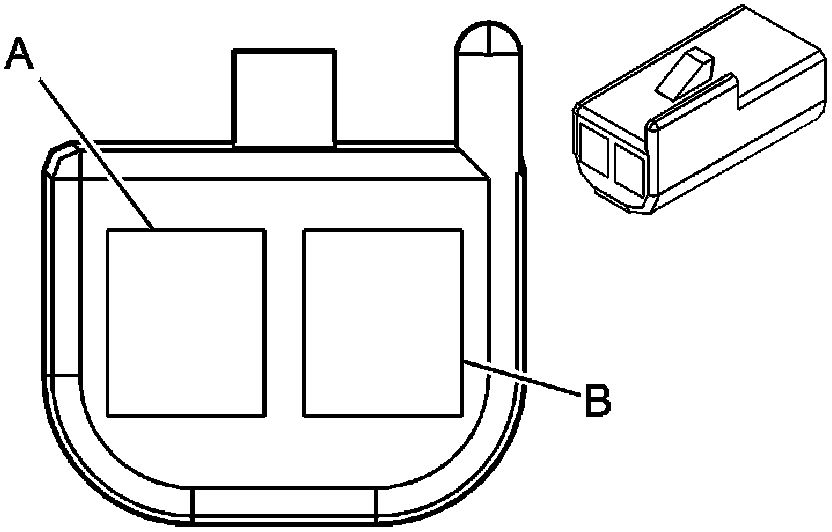

Component Connector End Views

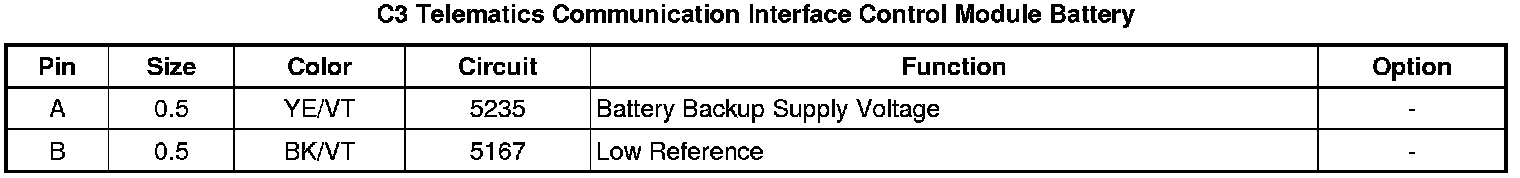

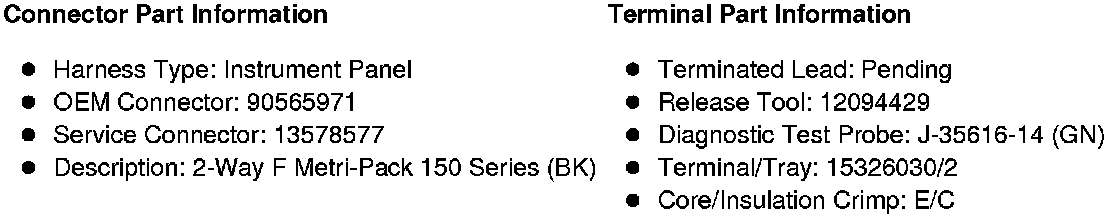

C3 Telematics Communication Interface Control Module Battery
