Starter/Generator Control Module Coolant Pump (HP6)

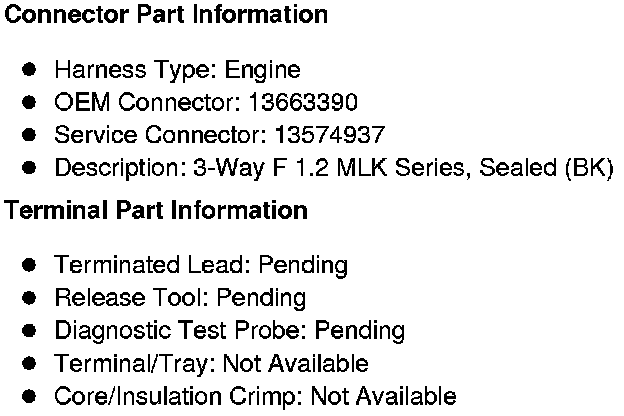

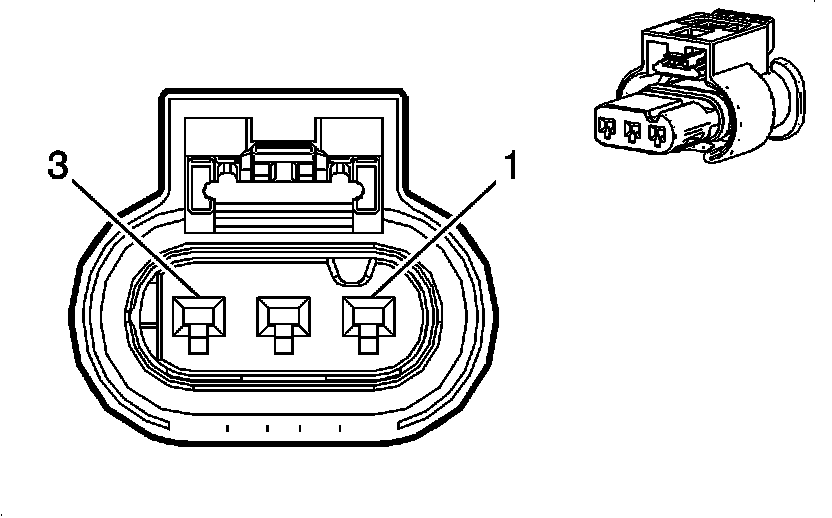

Component Connector End Views

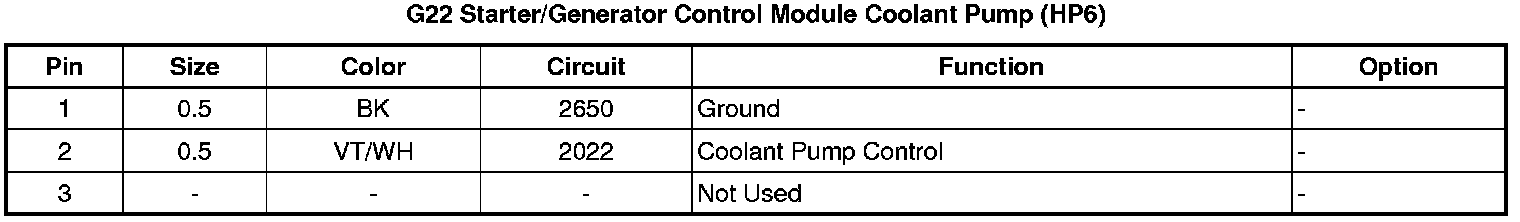

G22 Starter/Generator Control Module Coolant Pump (HP6)
