Starter/Generator Control Module X3 (HP6)

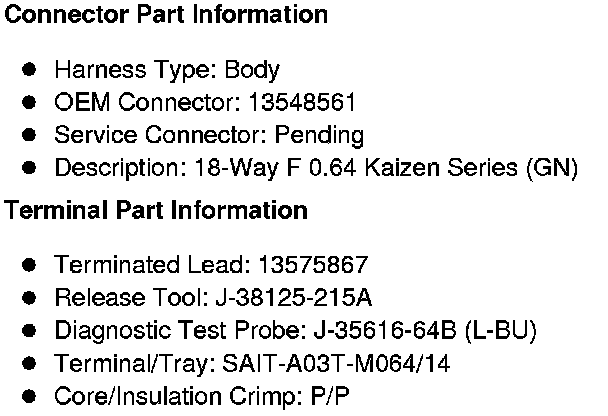

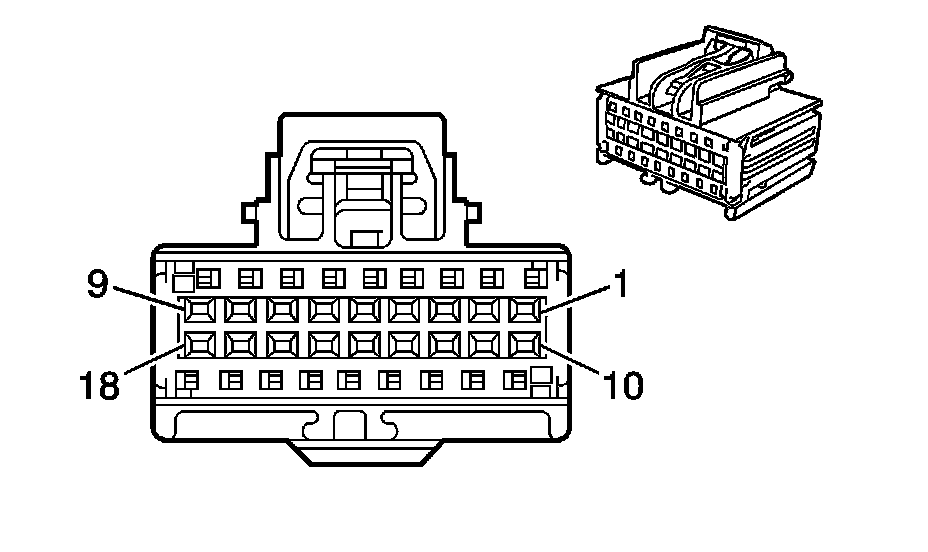

Component Connector End Views

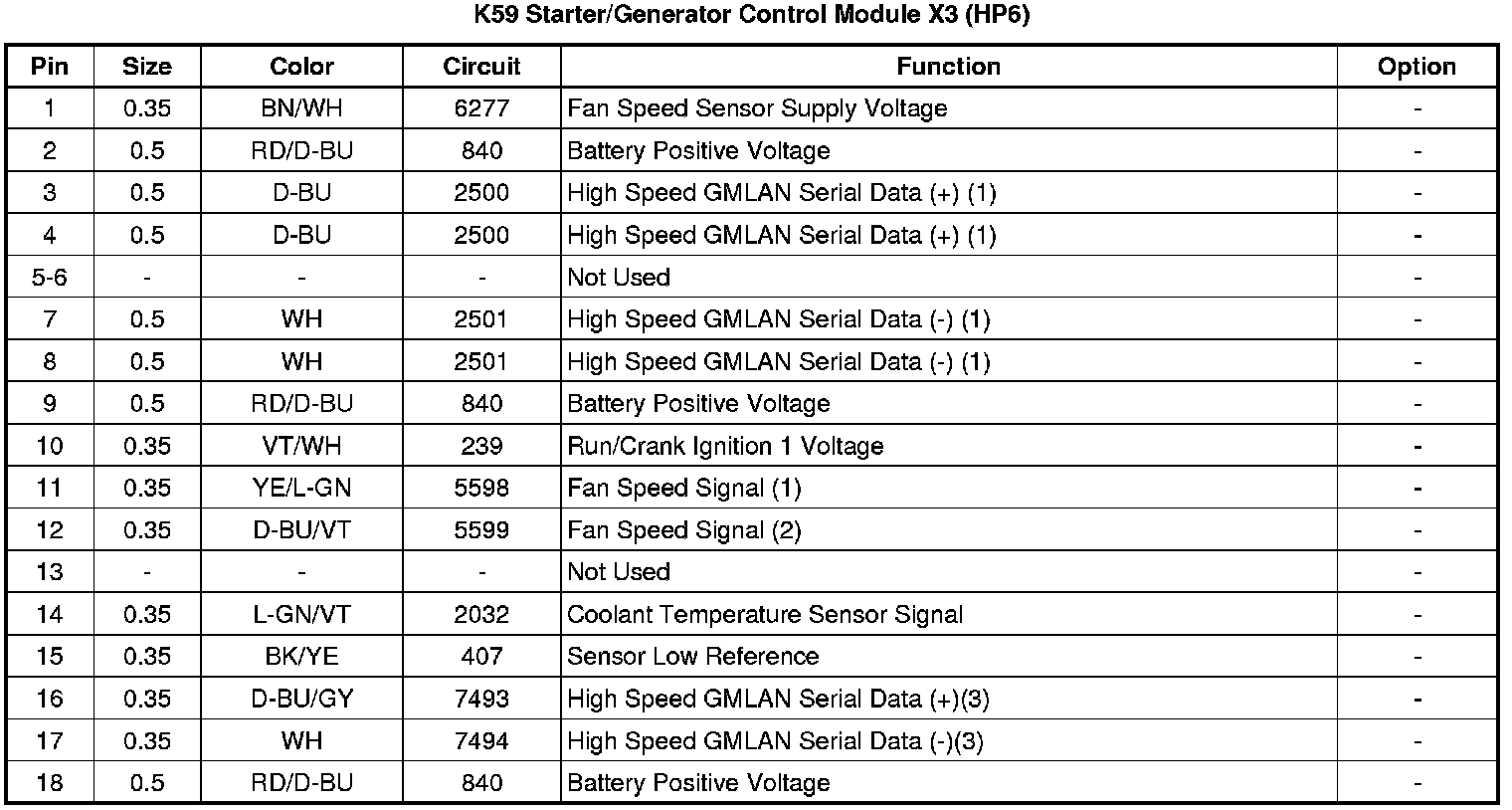

K59 Starter/Generator Control Module X3 (HP6)
