Starter/Generator Control Module X4 (HP6)

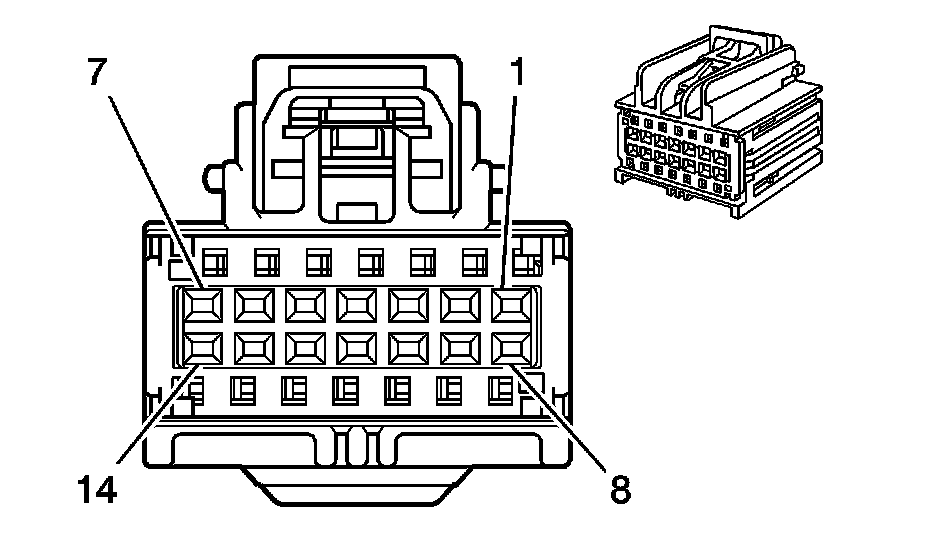

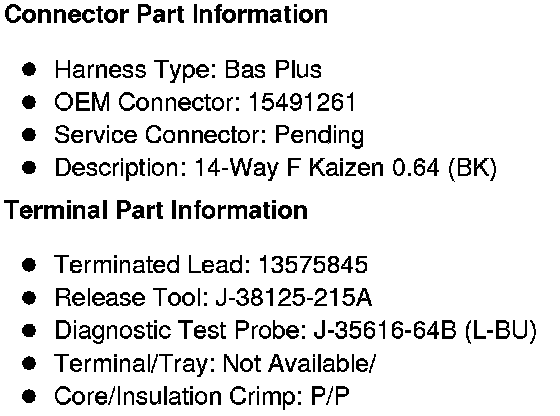

Component Connector End Views

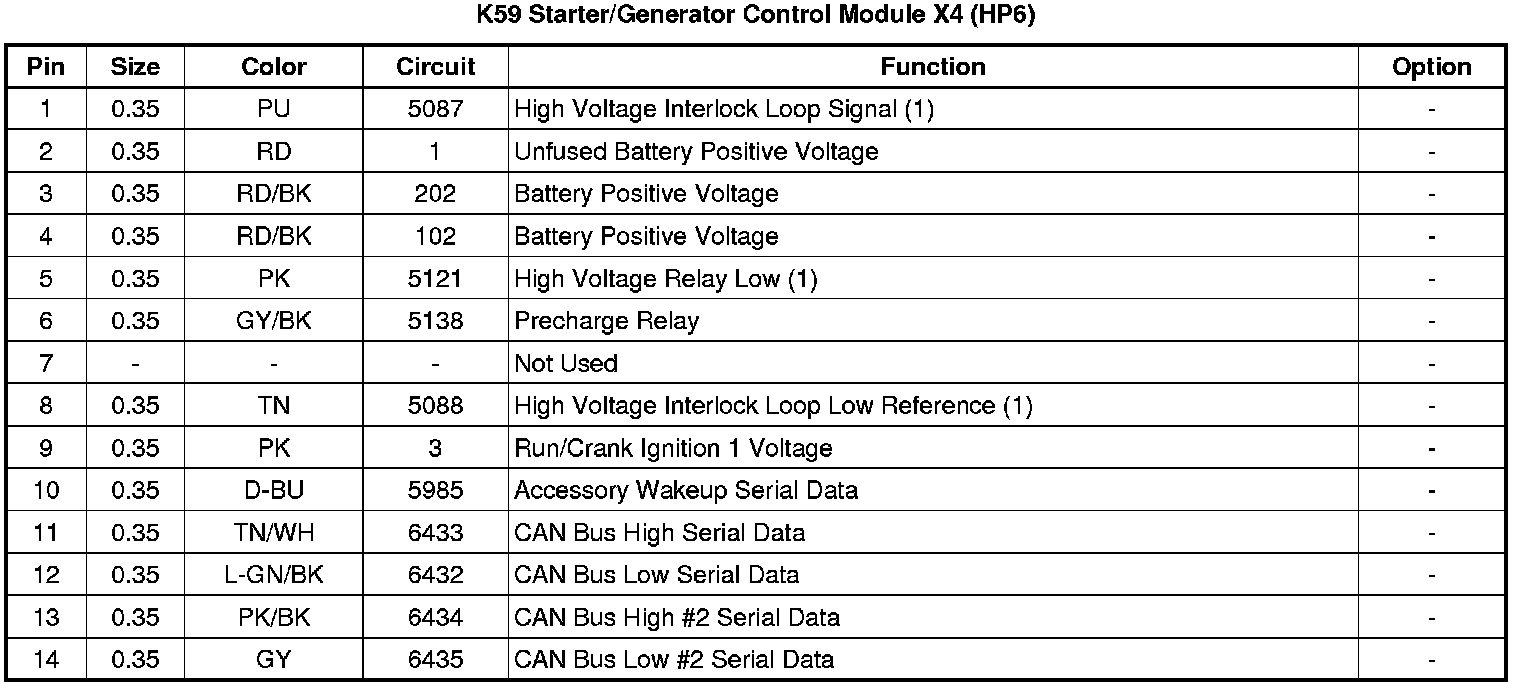

K59 Starter/Generator
Control Module
X4 (HP6)
