Multifunction Switch 1 - Instrument Panel

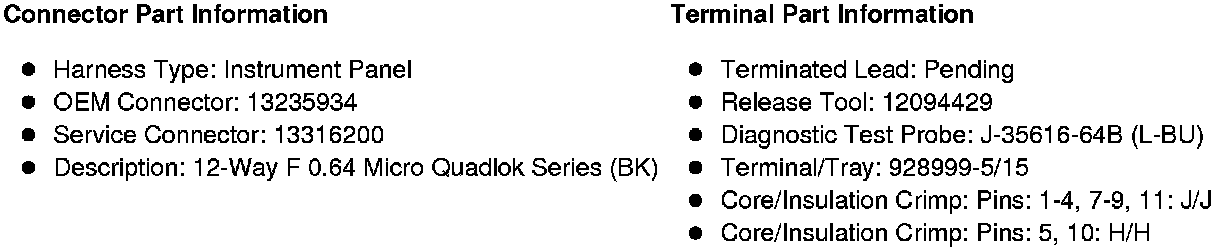

Component Connector End Views

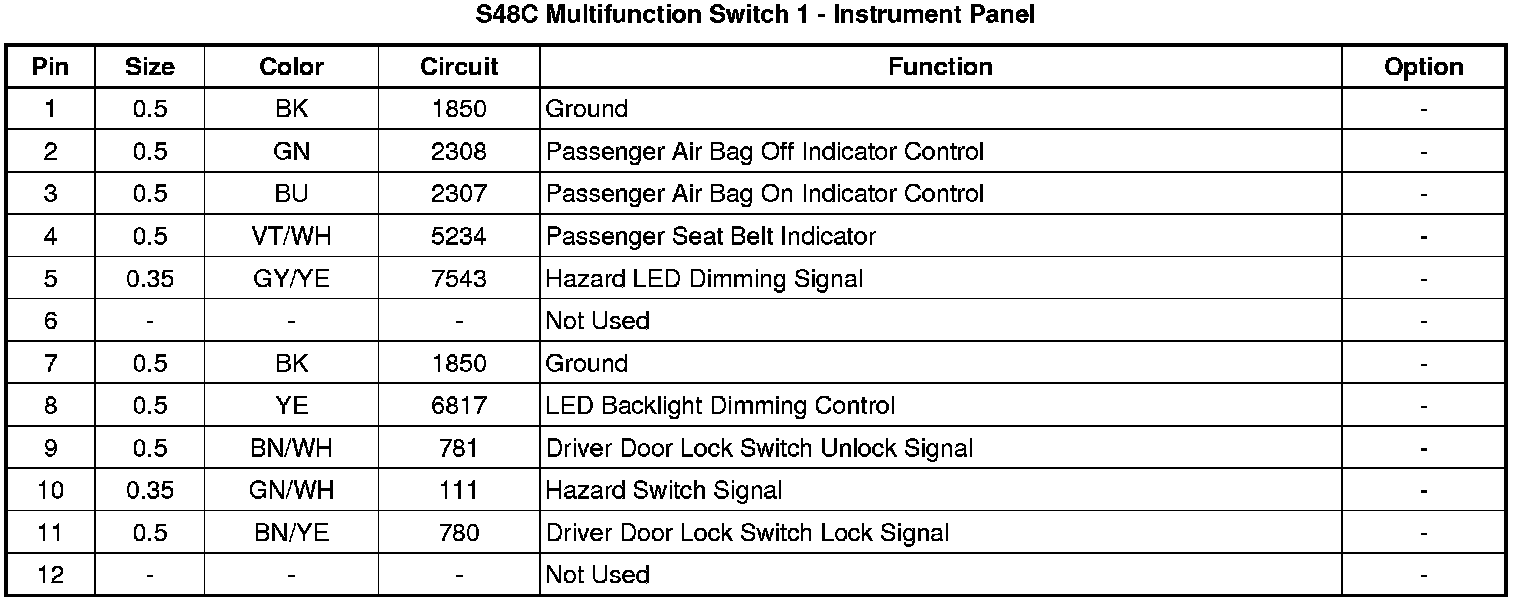

S48C Multifunction Switch 1 - Instrument Panel
