Transmission Control Module X2 (MDK)

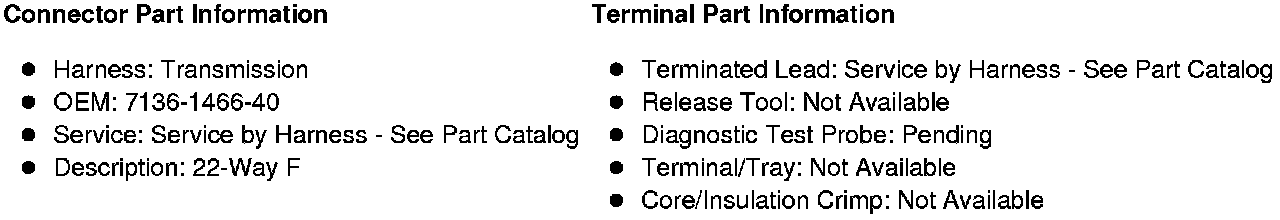

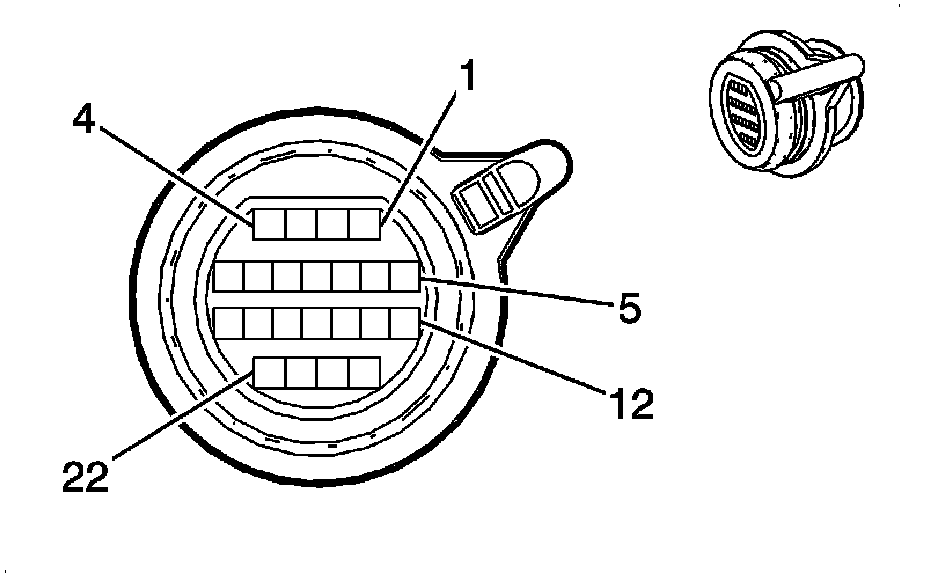

Component Connector End Views

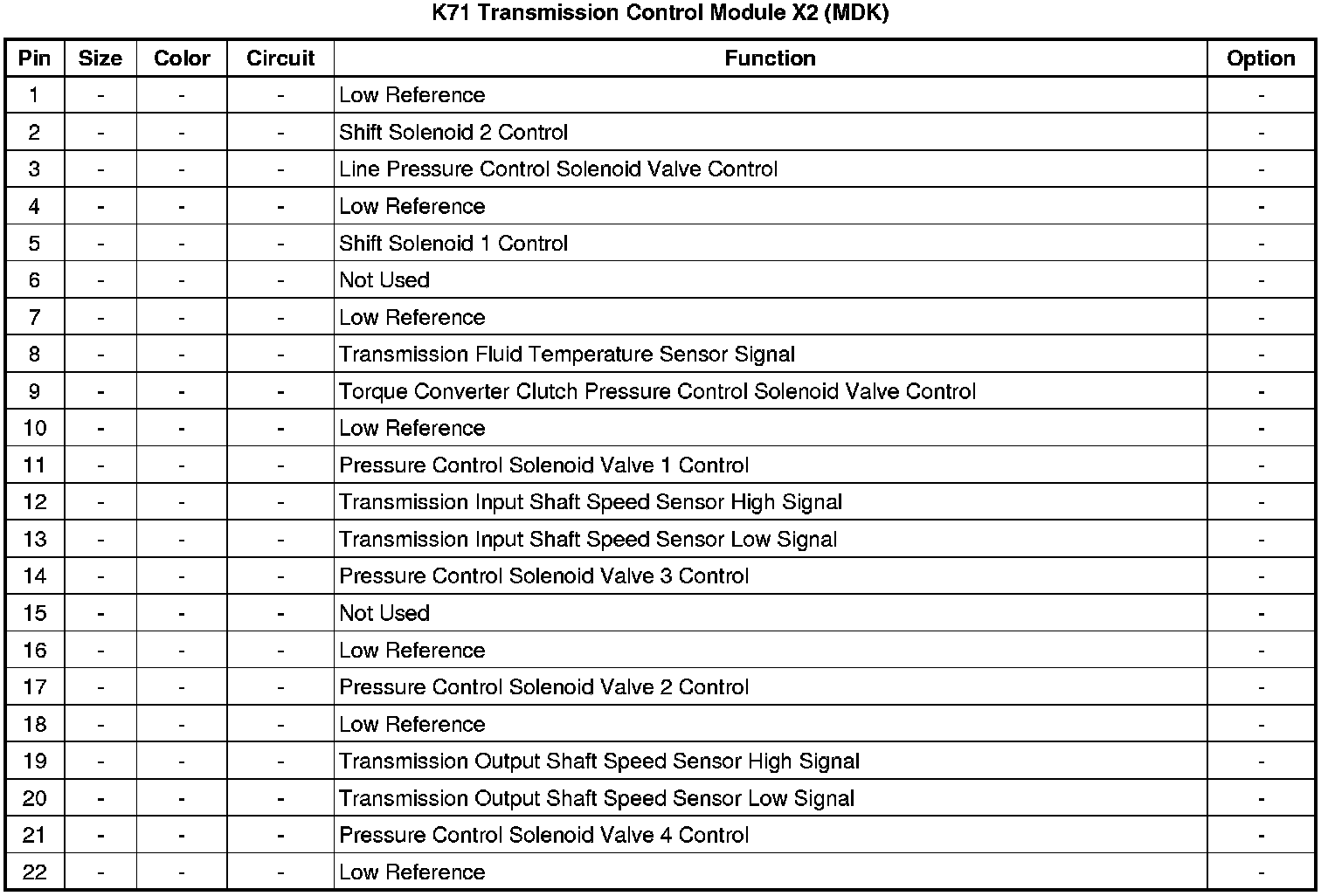

K71 Transmission Control Module X2 (MDK)
