Front and Rear Parking Assist Control Module X2 (UD5)

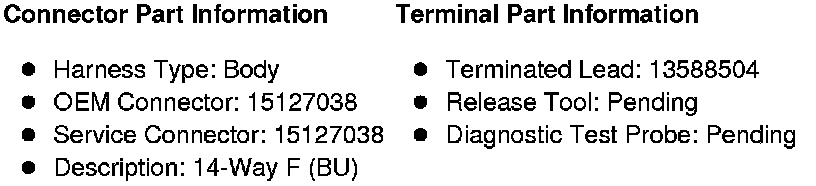

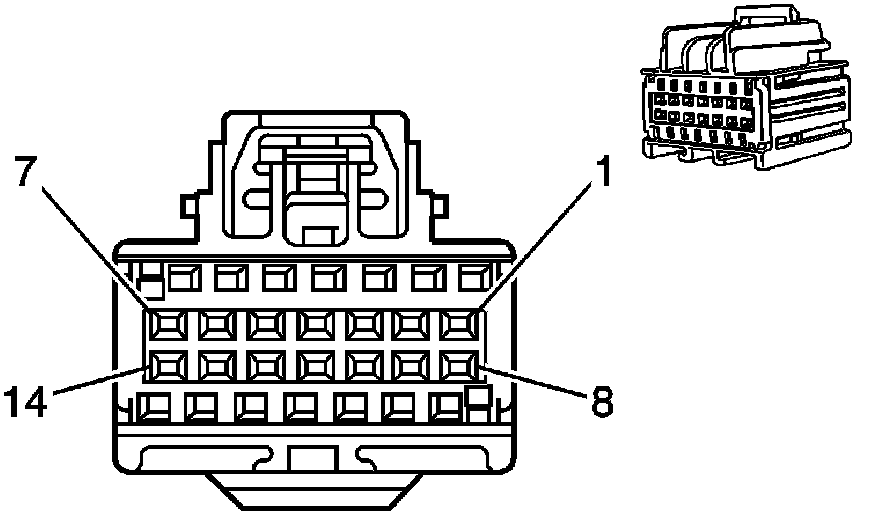

Component Connector End Views

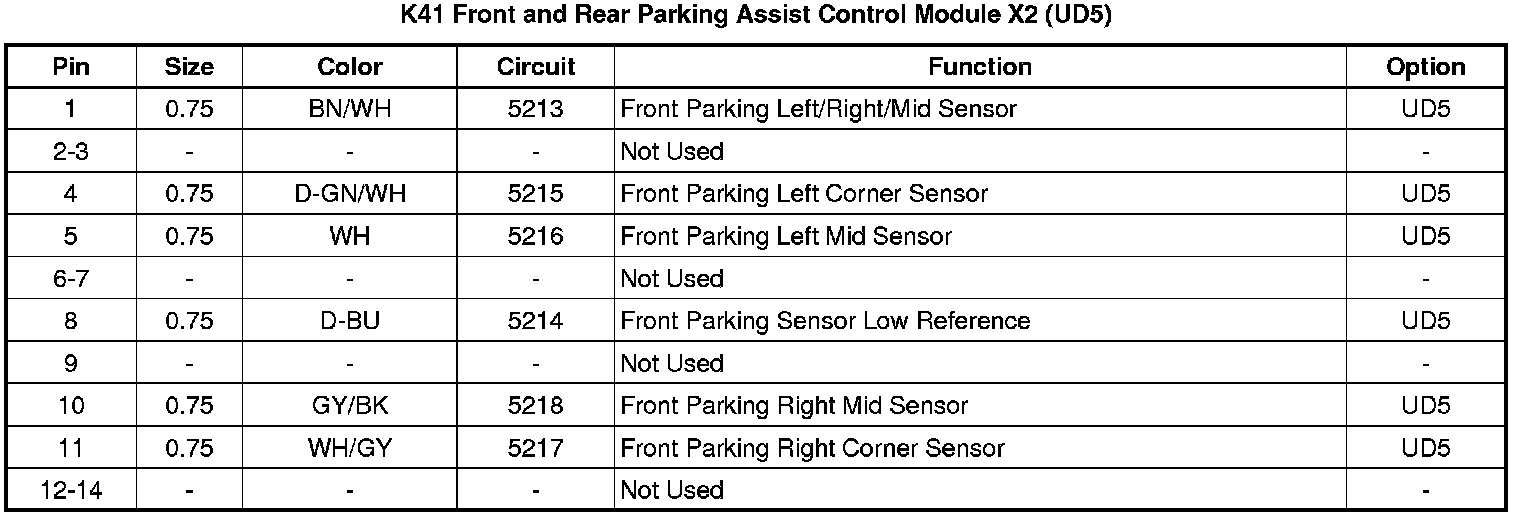

K41 Front and Rear Parking Assist Control Module X2 (UD5)
