HVAC Control Module

Instrument Panel/Center Console Component Views

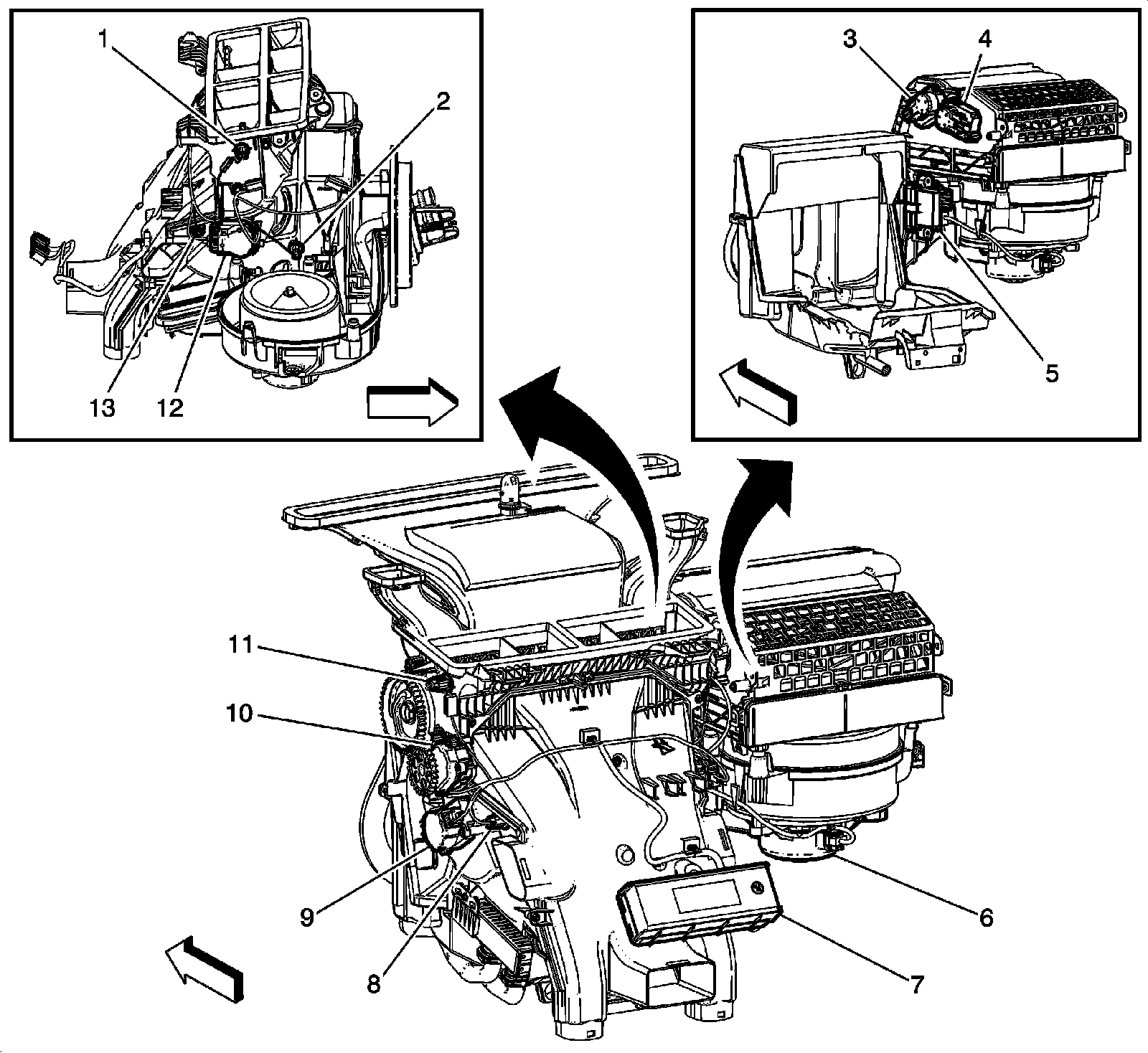

HVAC Module Components





1 - B7J Air Temperature Sensor - Duct Right Upper

2 - B39 A/C Evaporator Temperature Sensor

3 - M4 Air Inlet Door Actuator

4 - M46 Air Recirculation Door Actuator

5 - K8 Blower Motor Control Module

6 - M8 Blower Motor

7 - K33 HVAC Control Module

8 - B7D Air Temperature Sensor - Duct Left Lower

9 - M6L Air Temperature Door Actuator - Left

10 - M37 Mode Door Actuator

11 - B7H Air Temperature Sensor - Duct Left Upper

12 - M6R Air Temperature Door Actuator - Right

13 - B7E Air Temperature Sensor - Duct Right Lower
