Air Flow Meter/Sensor: Diagrams

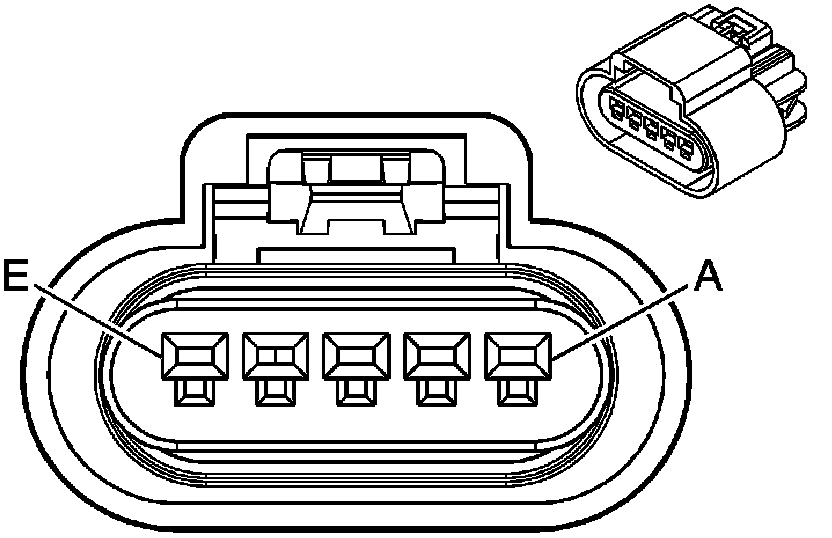

Component Connector End Views

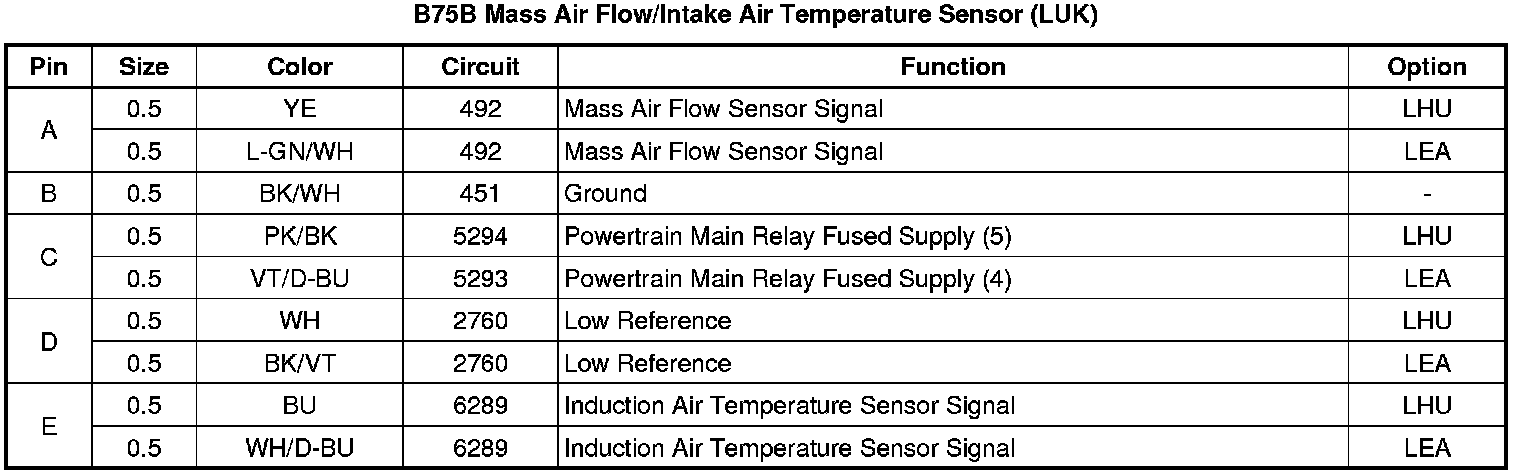

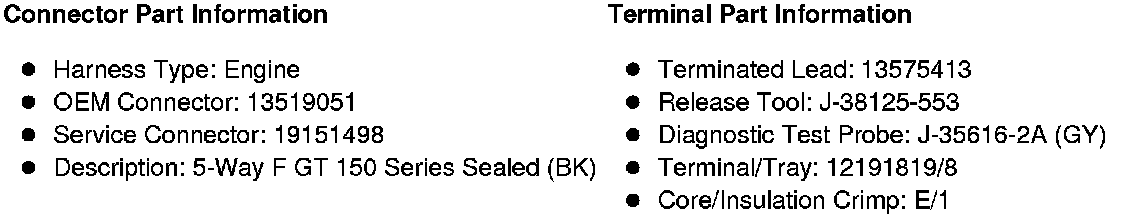

B75B Mass Air Flow/Intake Air Temperature Sensor (LUK)
