Air Flow Meter/Sensor: Locations

Front of Vehicle/Engine Compartment Component Views

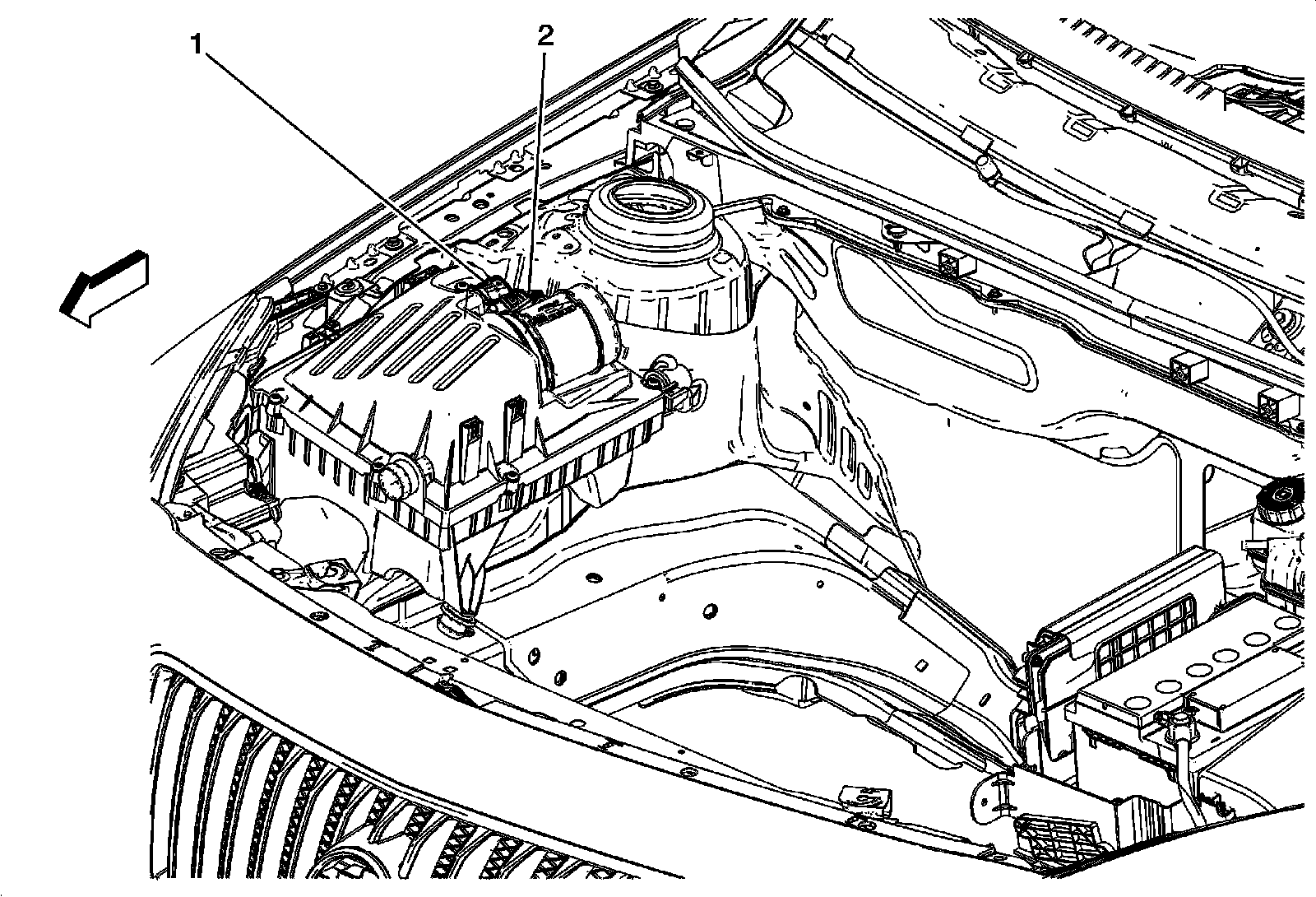

Right Side of Engine Compartment Components





1 - B17 Barometric Pressure Sensor

2 - B75B Mass Air Flow/Intake Air Temperature Sensor
