Data Link Connector: Locations

Instrument Panel/Center Console Component Views

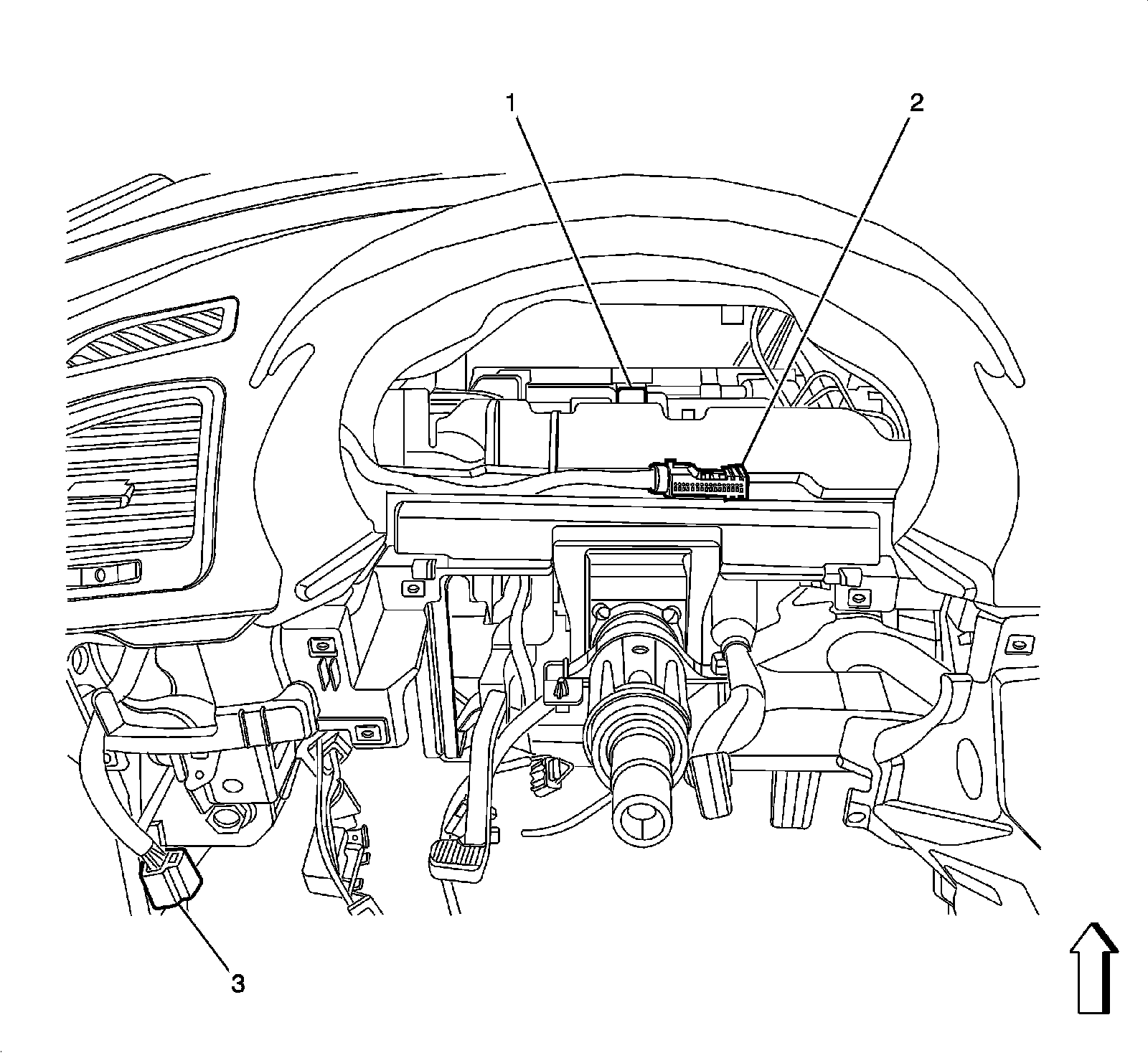

Behind Upper Left Side of the Instrument Panel Components





1 - R6 Data Link Resistor

2 - P16 Instrument Cluster Connector

3 - S30 Headlamp Switch Connector
