Body Control Module: Locations




Instrument Panel/Center Console Component Views

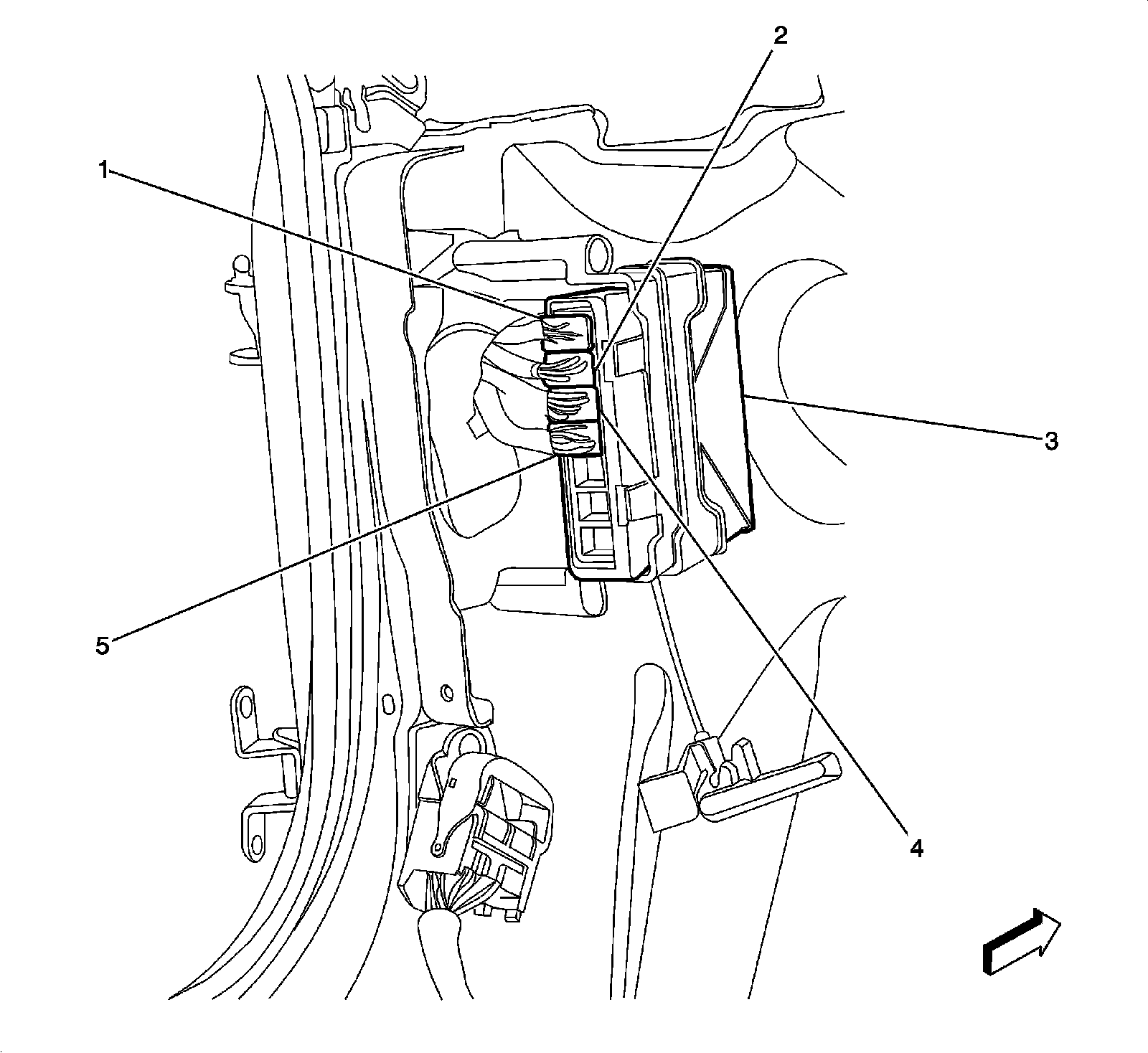

Behind Lower Left Side of the Instrument Panel Components





1 - K9 Body Control Module X7

2 - K9 Body Control Module X6

3 - K9 Body Control Module

4 - K9 Body Control Module X5

5 - K9 Body Control Module X4
