Wheel Alignment Specifications

Wheel Alignment Specifications

For descriptions see Description and Operation and Trim Height Inspection, refer to Trim Height Inspection Trim Height Inspection.

Condition: Full tank, no passengers and placed on plane ground.

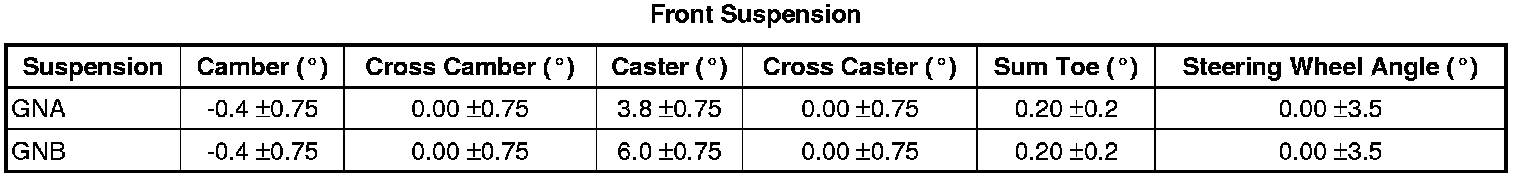

Front Suspension

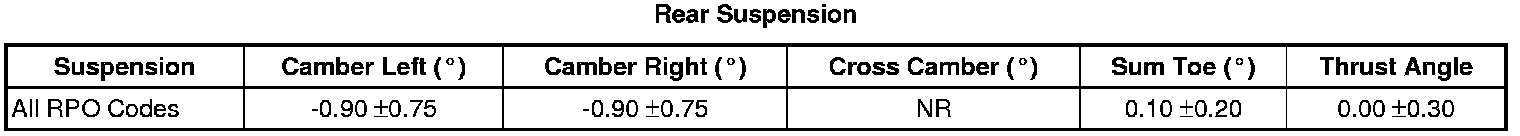

Rear Suspension
