Air Cleaner Assembly Replacement

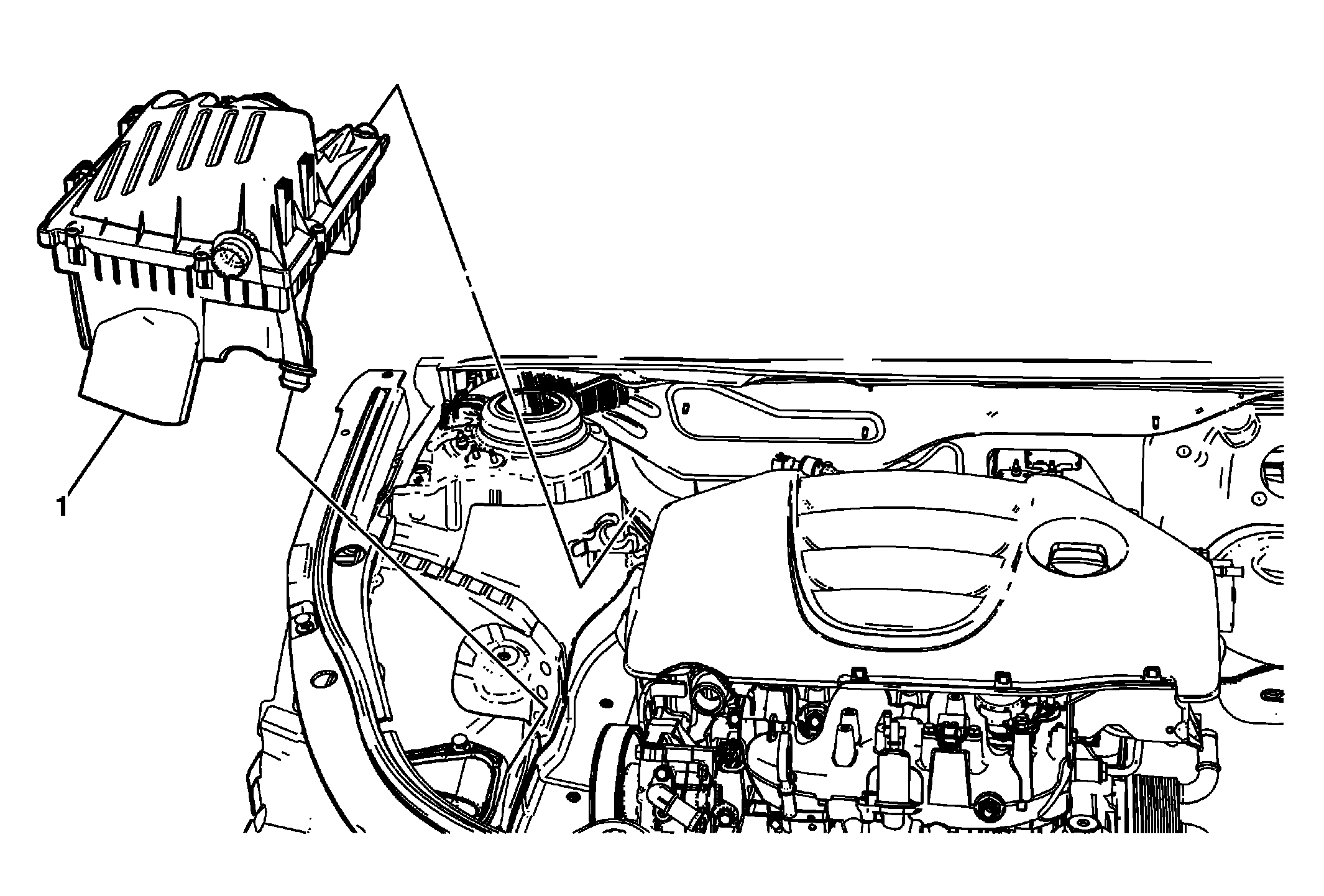

Fig 1: Air Cleaner Assembly
GM2321834Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Assembly Replacement

Callout Component Name
Preliminary Procedure
Disconnect the outlet duct from the air cleaner assembly. Refer to Air Cleaner Outlet Duct Replacement .
1 Air Cleaner Assembly

Procedure

  1. Lift upwards to dislodge the rubber grommet.
  2. Transfer parts as necessary.
