Air Cleaner Element Replacement

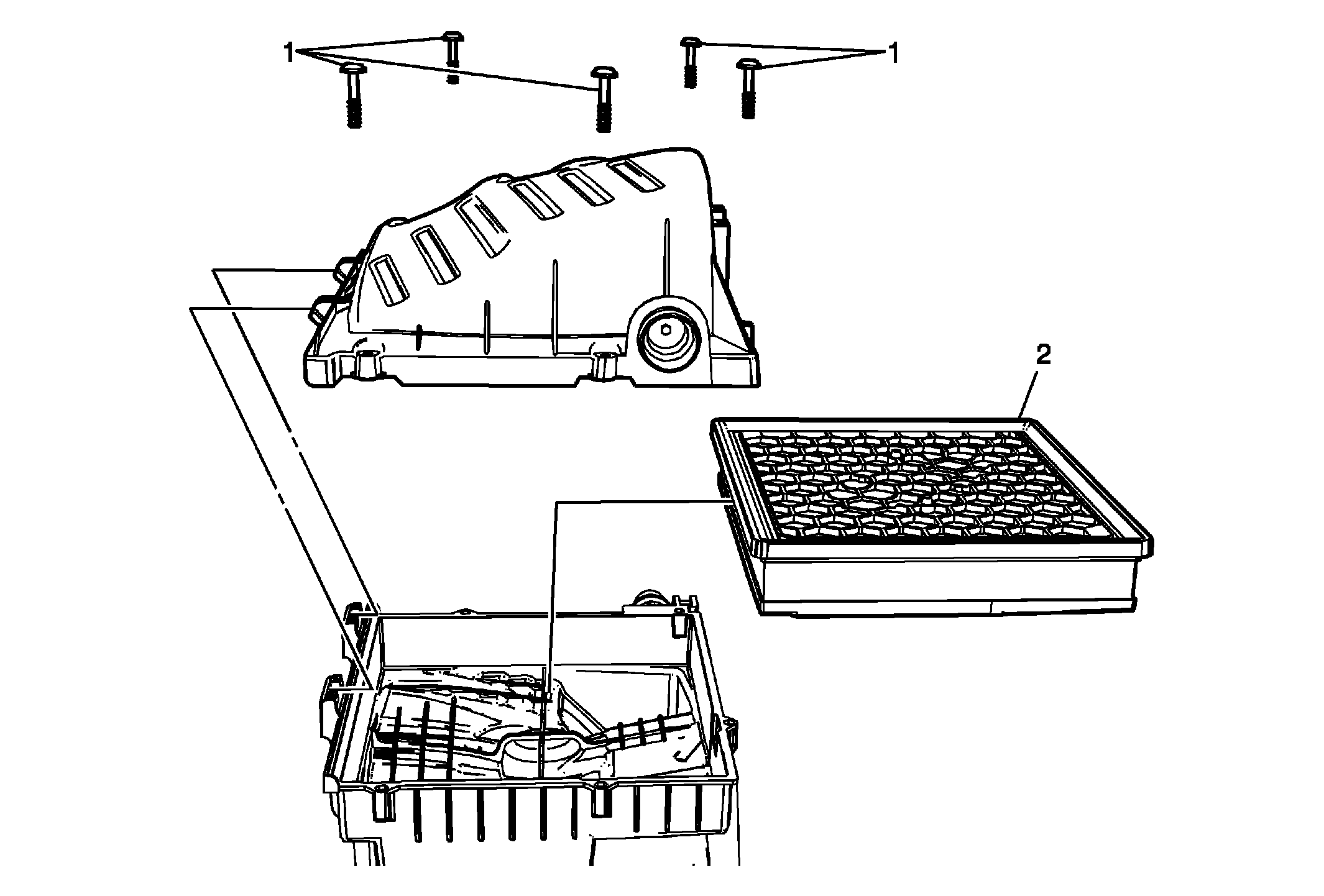

Fig 1: Air Cleaner Element
GM2321819Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Element Replacement

Callout Component Name
1 Air Cleaner Assembly Screws (Qty: 5)
CAUTION:

Refer to Fastener Caution .


Tighten
4 N.m (35 lb in)
2 Air Cleaner Element
