Camshaft Position Sensor Replacement - Intake

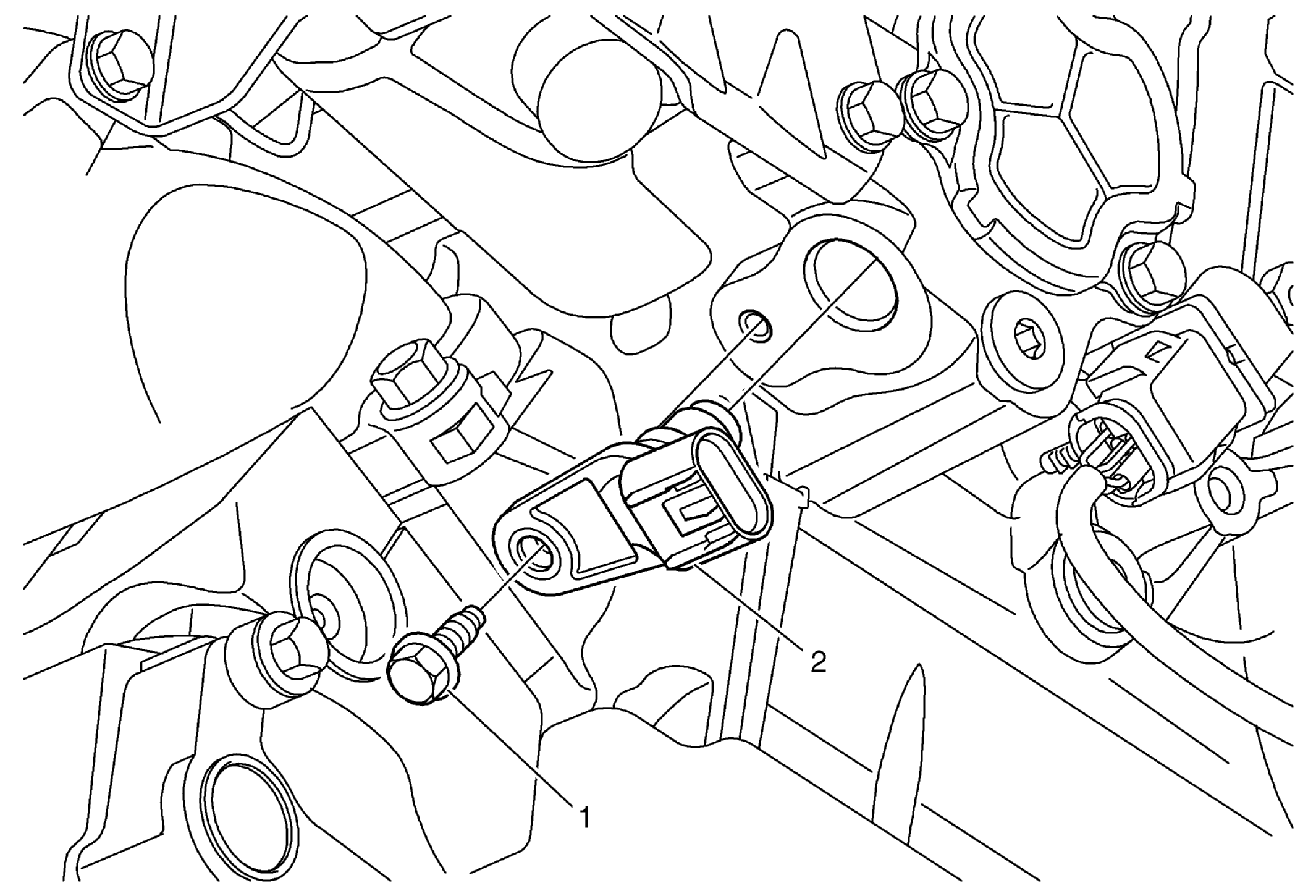

Fig 1: Camshaft Position Sensor - Intake
GM2019970Courtesy of GENERAL MOTORS COMPANY
Camshaft Position Sensor Replacement - Intake

Callout Component Name
Preliminary Procedure
Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1 Camshaft Position Sensor Fastener
CAUTION:

Refer to Fastener Caution .


Procedure
Disconnect the electrical connector.
Tighten
10 N.m (89 lb in)
2 Camshaft Position Sensor
