Charge Air Cooler Inlet Pipe Replacement

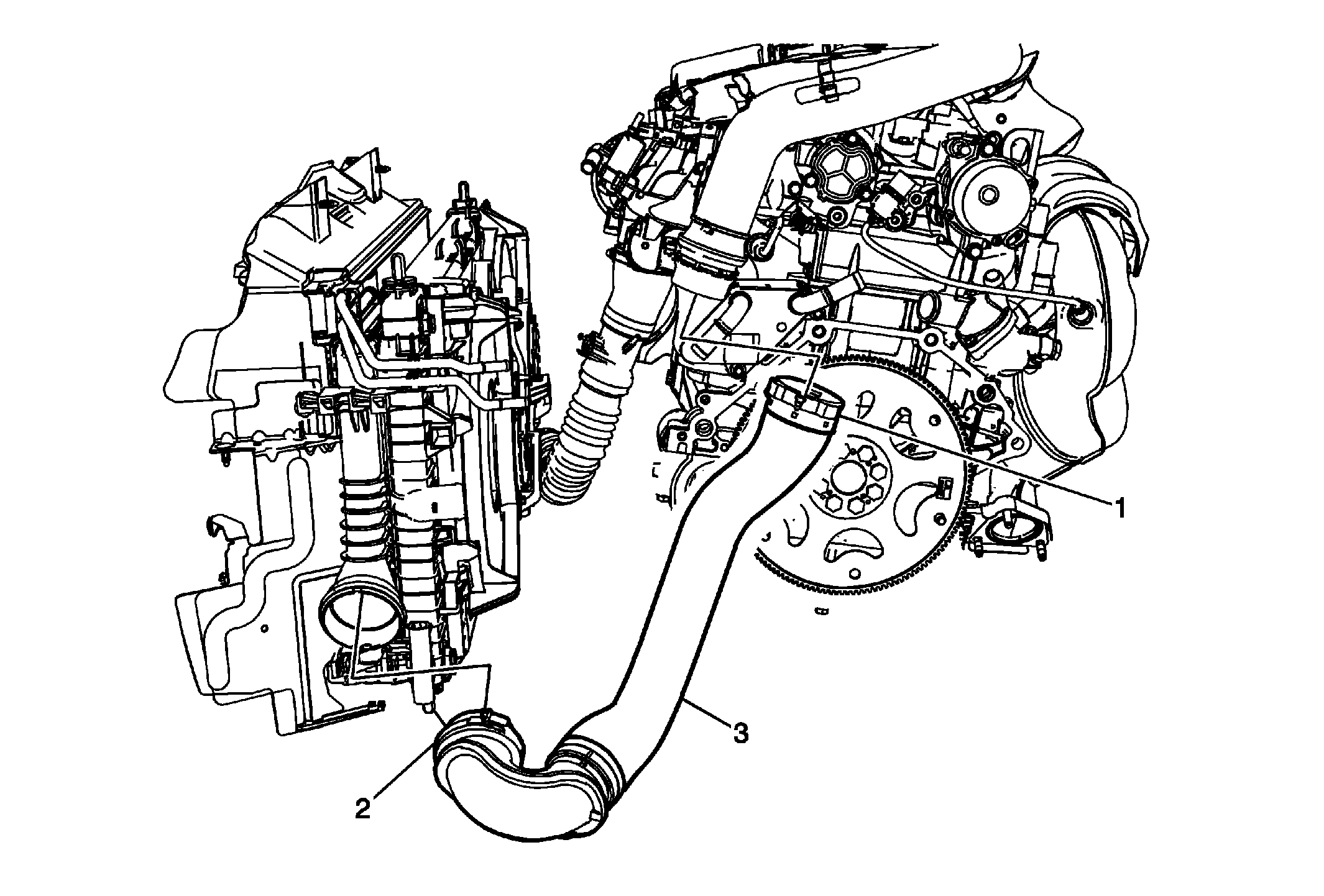

Fig 1: Charge Air Cooler Inlet Pipe
GM2321863Courtesy of GENERAL MOTORS COMPANY
Charge Air Cooler Inlet Pipe Replacement

Callout Component Name
1 Charge Air Cooler Inlet Pipe Retaining Clip
2 Charge Air Cooler Inlet Pipe Clamp
CAUTION:

Refer to Fastener Caution .


Tighten
2.7 N.m (24 lb in)
3 Charge Air Cooler Inlet Pipe
