Crankshaft Position Sensor Replacement

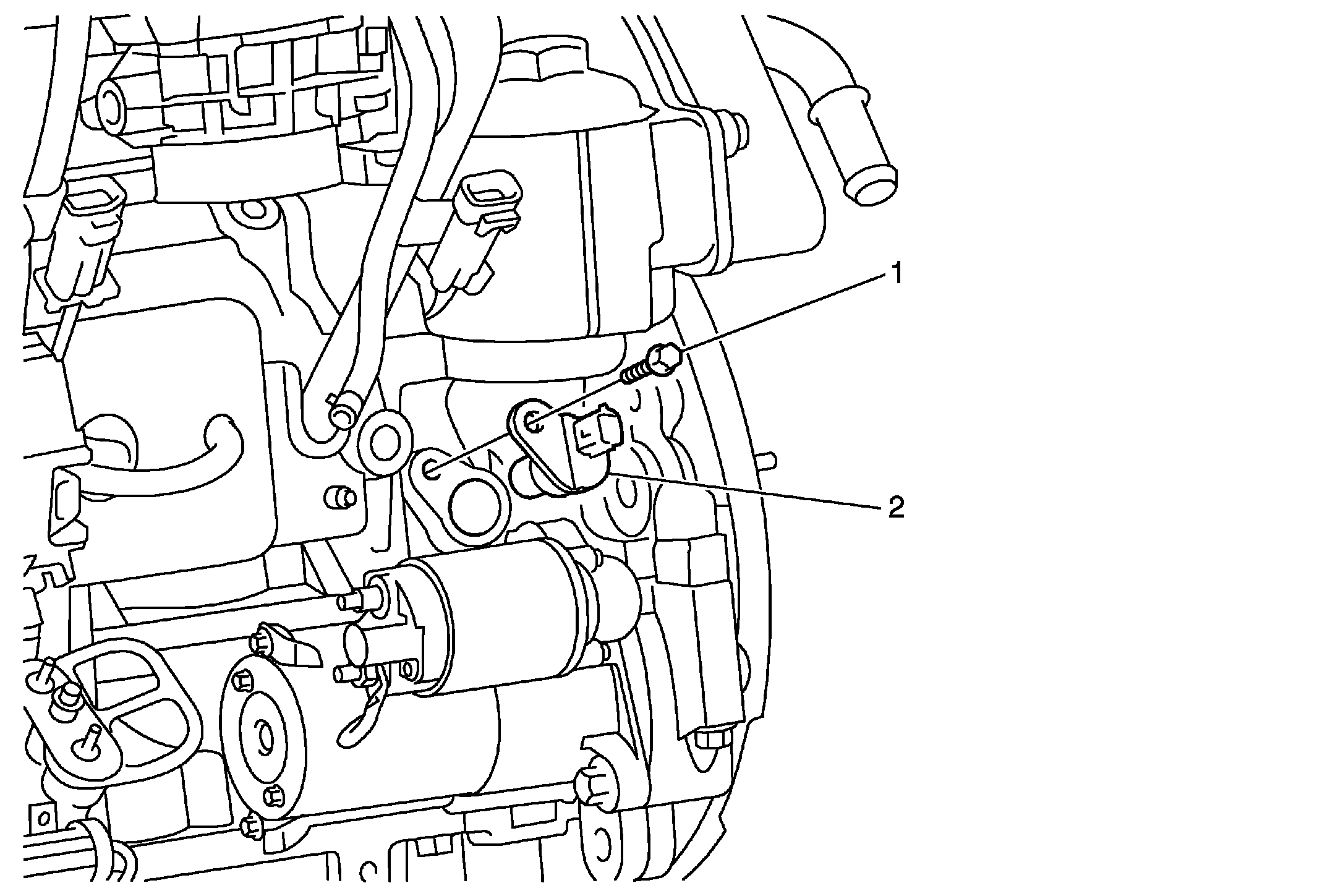

Fig 1: Crankshaft Position Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the starter motor. Refer to Starter Replacement (LDK Or LHU) , Starter Replacement (LEA) .
1	Crankshaft Position Sensor Fastener CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 10 N.m (89 lb in)
2	Crankshaft Position Sensor

Callout

Component Name

Preliminary Procedures

Crankshaft Position Sensor Fastener

CAUTION:

Procedure
Disconnect the electrical connector.
Tighten
10 N.m (89 lb in)

Crankshaft Position Sensor
