Direct Fuel Injector Replacement

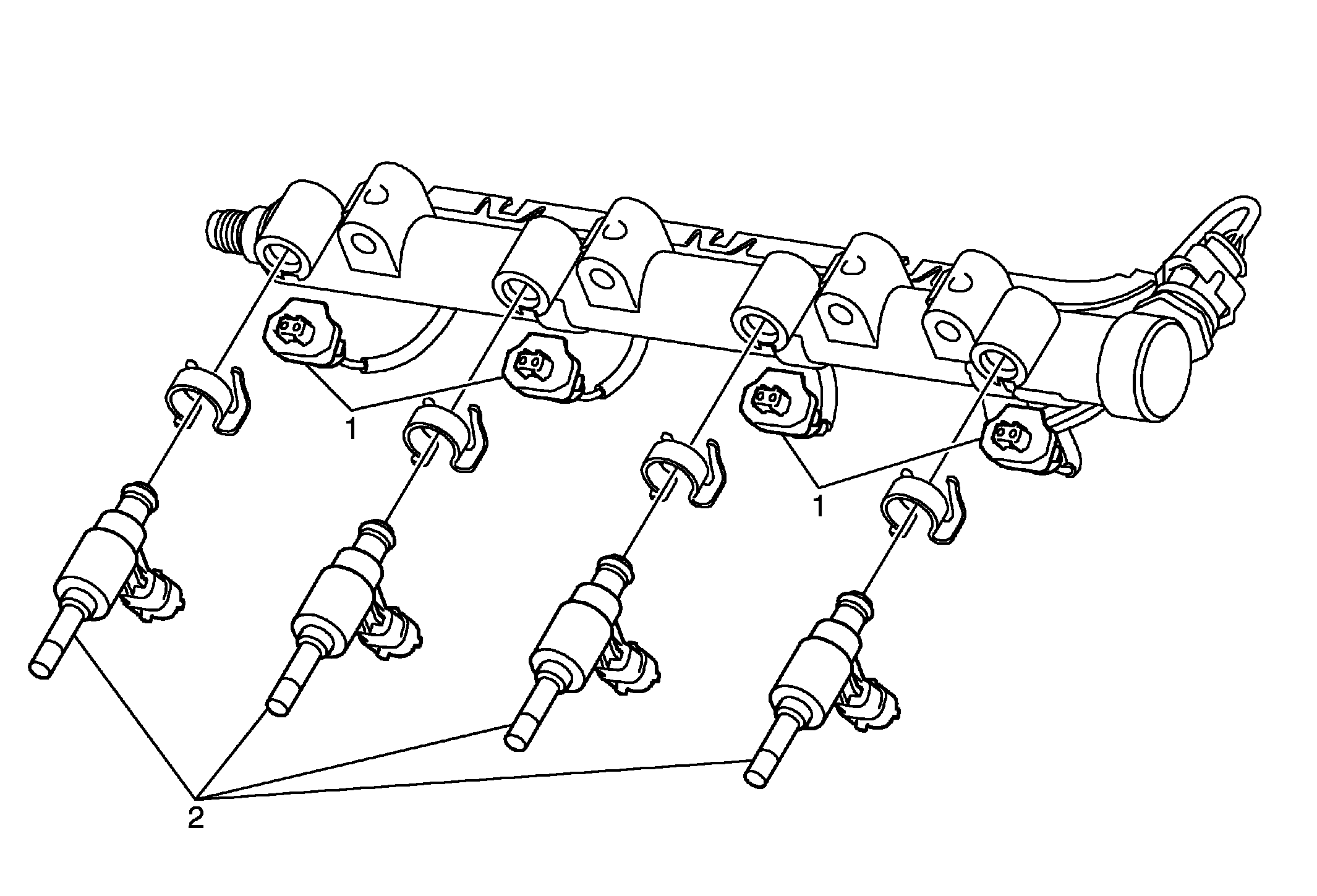

Fig 1: Direct Fuel Injectors

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the fuel injection fuel rail assembly. Refer to Fuel Injection Fuel Rail Assembly Replacement .
1	Direct Fuel Injector Procedure Disconnect the electrical connector.
2	Direct Fuel Injector Procedure Remove the injector with EN-37281-A injector remover and DT-2619-01 slide hammer. Special Tools EN-37281-A Injector Remover DT-2619-01 Slide Hammer For equivalent regional tools, refer to Special Tools (Diagnostic Tools) .

Callout

Component Name

Preliminary Procedure
Remove the fuel injection fuel rail assembly. Refer to Fuel Injection Fuel Rail Assembly Replacement .

Direct Fuel Injector
Procedure
Disconnect the electrical connector.

Direct Fuel Injector
Procedure
Remove the injector with EN-37281-A injector remover and DT-2619-01 slide hammer.

Special Tools

For equivalent regional tools, refer to Special Tools (Diagnostic Tools) .
