Engine Coolant Temperature Sensor Replacement

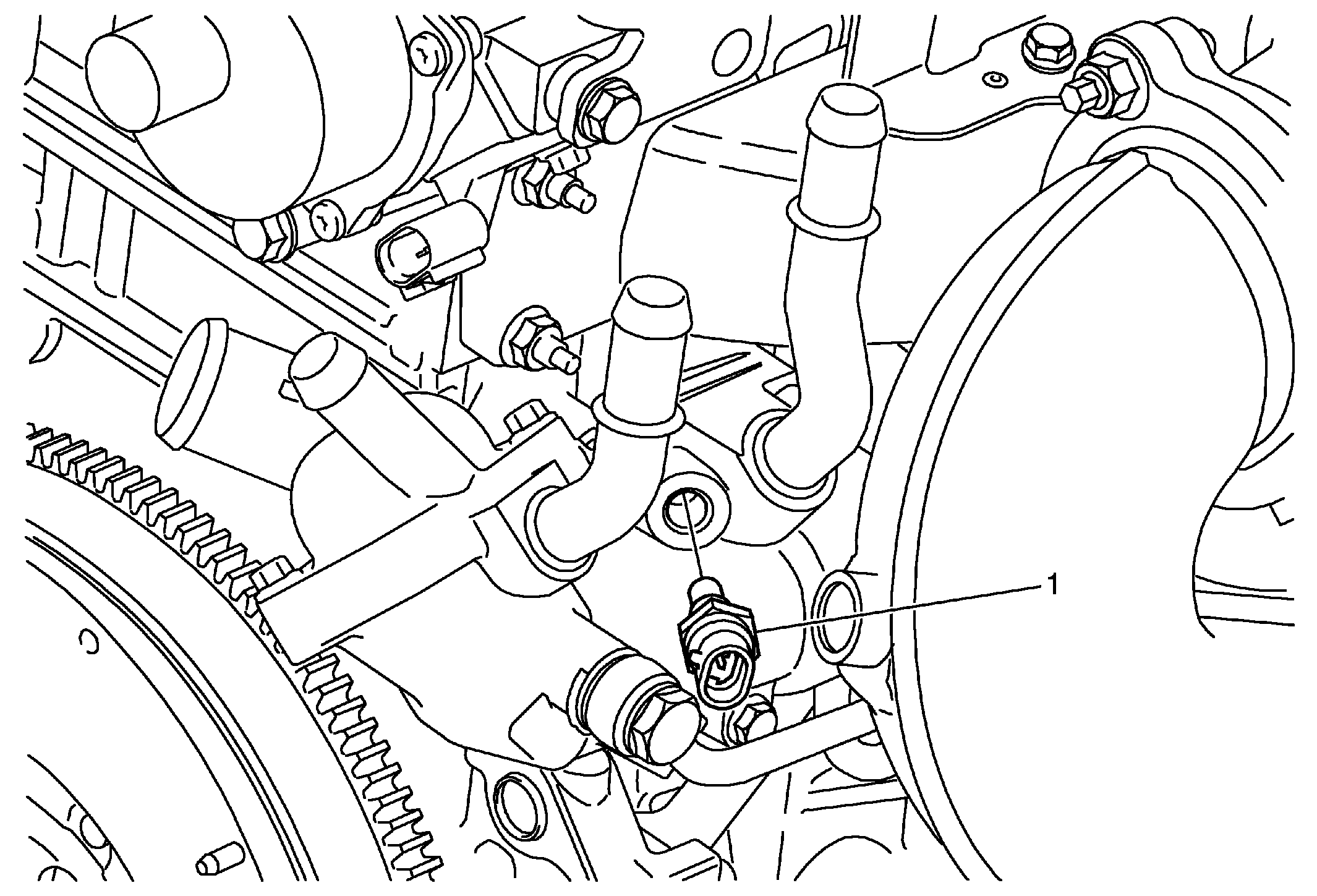

Fig 1: Engine Coolant Temperature Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Drain the cooling system. Refer to Cooling System Draining and Filling (Static Fill) , Cooling System Draining and Filling (GE 47716) .
1	Engine Coolant Temperature Sensor CAUTION: Refer to Fastener Caution . Procedure Use a new gasket. Disconnect the electrical connector. Tighten 20 N.m (15 lb ft)

Callout

Component Name

Preliminary Procedures

Engine Coolant Temperature Sensor

CAUTION:

Procedure

Tighten
20 N.m (15 lb ft)
