Fuel Feed Intermediate Pipe Replacement

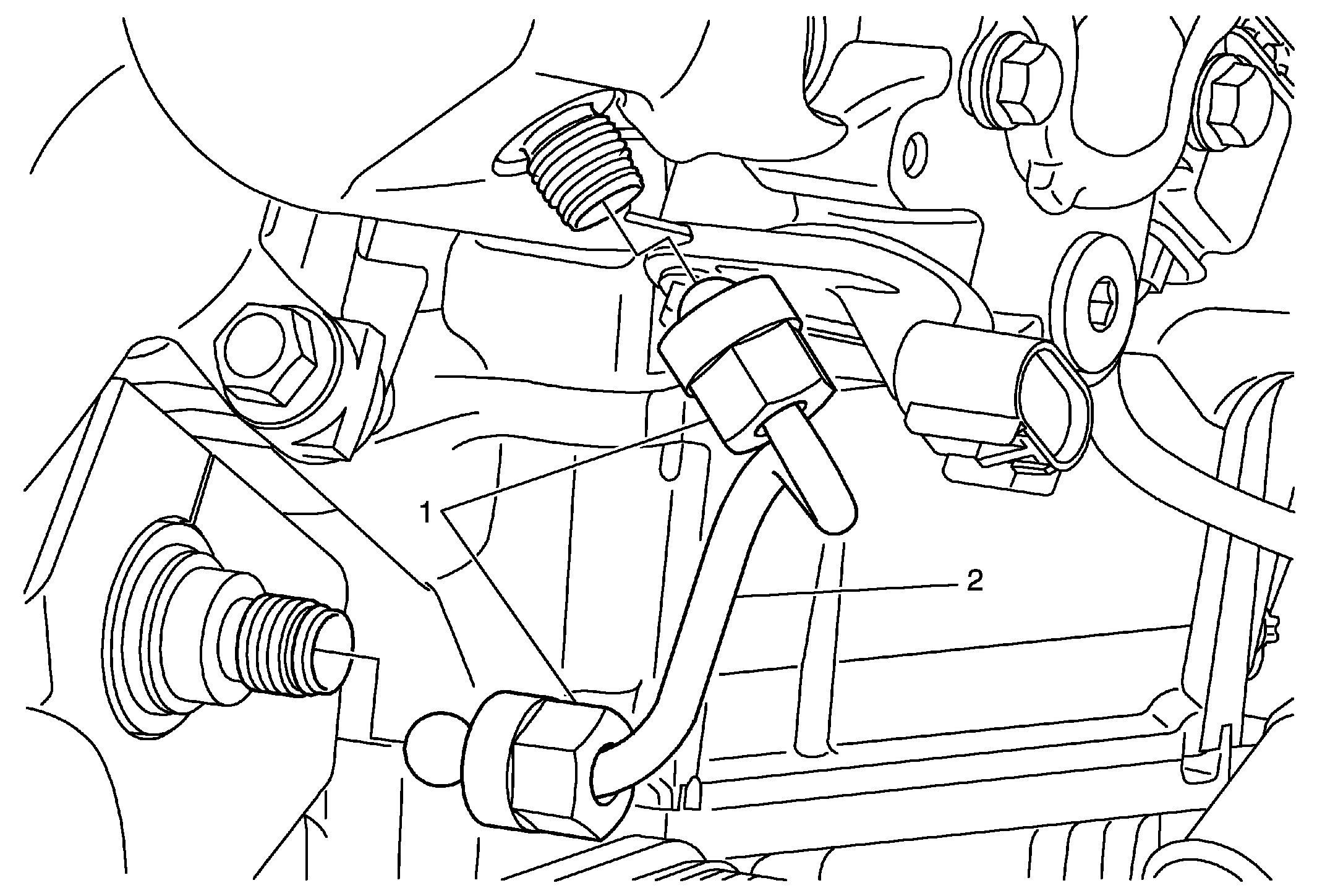

Fig 1: Fuel Feed Intermediate Pipe

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Relieve the fuel pressure. Refer to Fuel Pressure Relief . Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement .
1	Fuel Feed Intermediate Pipe Fastener (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 30 N.m (22 lb ft)
2	Fuel Feed Intermediate Pipe

Callout

Component Name

Preliminary Procedures

Fuel Feed Intermediate Pipe Fastener (Qty: 2)

CAUTION:

Tighten
30 N.m (22 lb ft)

Fuel Feed Intermediate Pipe
