Fuel Injection Fuel Rail Fuel Pressure Sensor Replacement

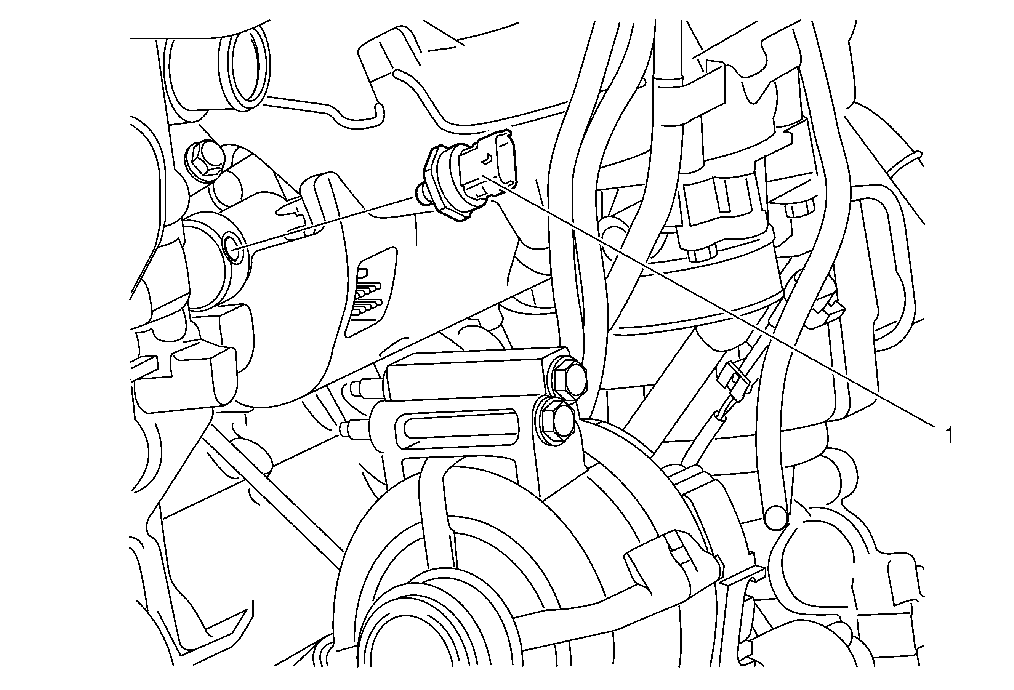

Fig 1: Fuel Injection Fuel Rail Fuel Pressure Sensor

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Remove the intake manifold cover. Refer to Intake Manifold Cover Replacement . Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement (LUK) , Radiator Inlet Hose Replacement (LHU) , Radiator Inlet Hose Replacement (LEA) .
1	Fuel Injection Fuel Rail Fuel Pressure Sensor CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 33 N.m (25 lb ft)

Callout

Component Name

Preliminary Procedures

Fuel Injection Fuel Rail Fuel Pressure Sensor

CAUTION:

Procedure
Disconnect the electrical connector.
Tighten
33 N.m (25 lb ft)
