Knock Sensor Replacement (Right Side)

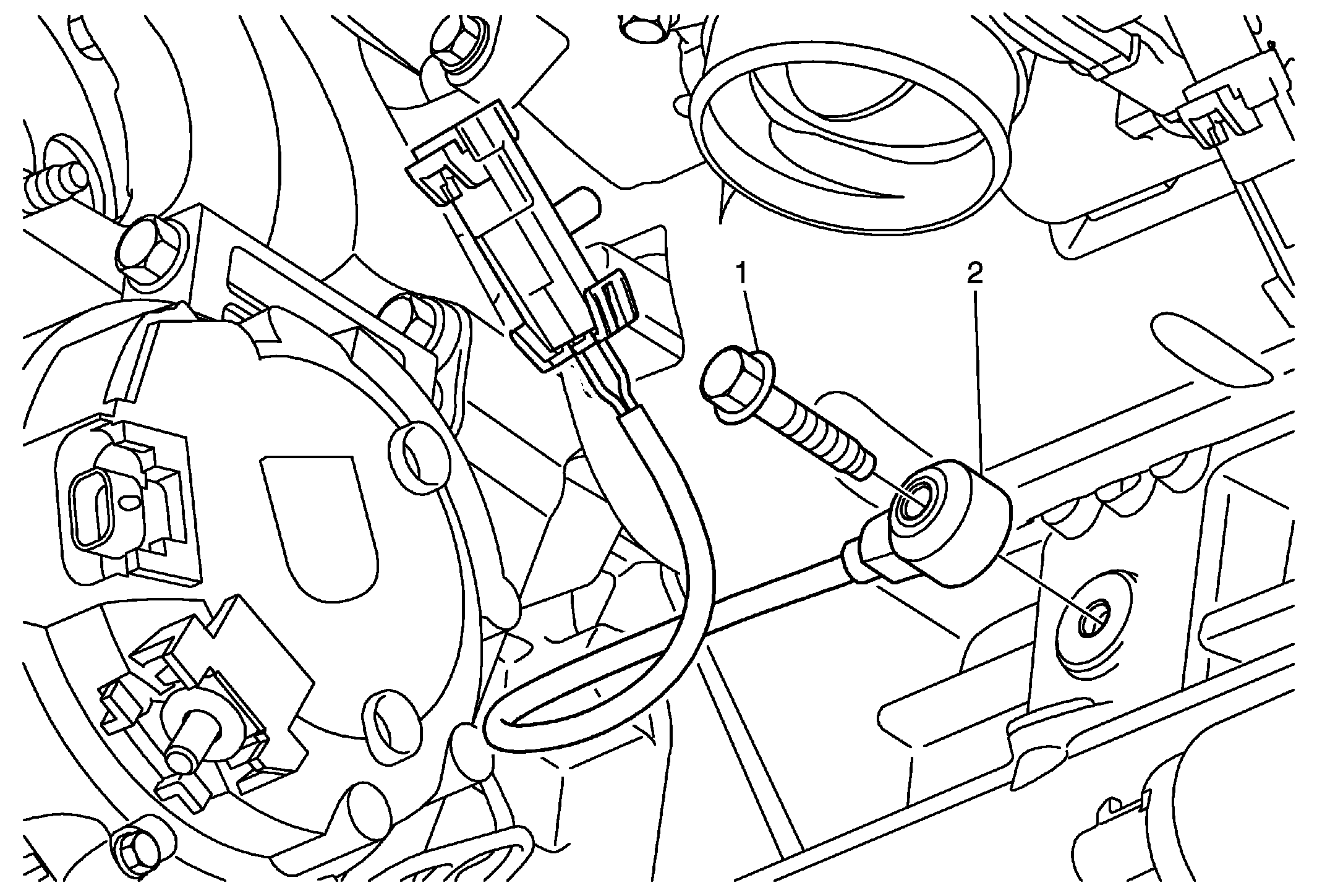

Fig 1: Knock Sensor (Right Side)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection . Remove the oil level indicator and tube.
1	Knock Sensor Fastener CAUTION: Refer to Fastener Caution . Procedure Disconnect the electrical connector. Tighten 25 N.m (18 lb ft)
2	Knock Sensor

Callout

Component Name

Preliminary Procedures

Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
Remove the oil level indicator and tube.

Knock Sensor Fastener

CAUTION:

Procedure
Disconnect the electrical connector.
Tighten
25 N.m (18 lb ft)

Knock Sensor
