Knock Sensor Replacement (Left Side)

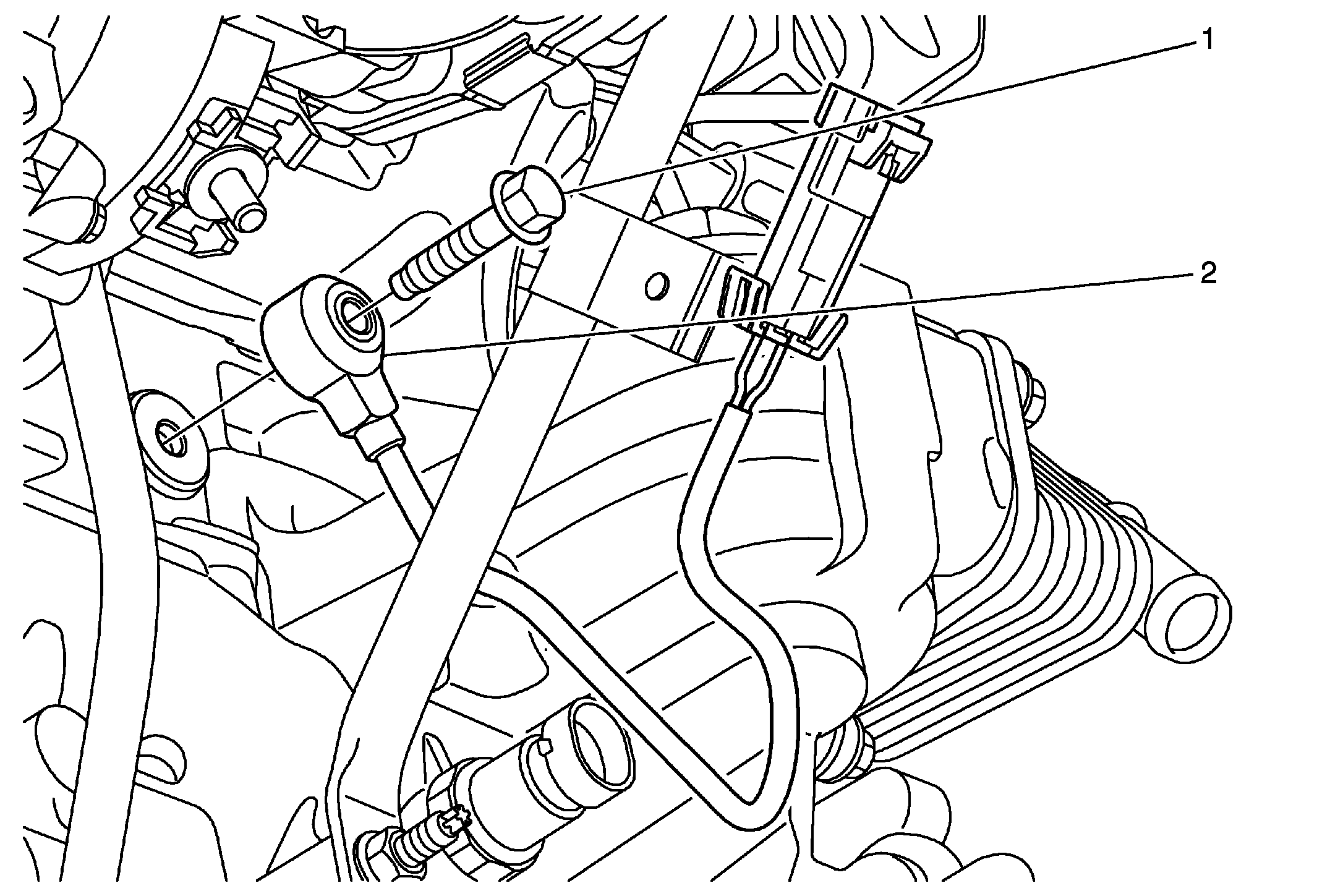

Fig 1: Knock Sensor (Left Side)
GM2020562Courtesy of GENERAL MOTORS COMPANY
Knock Sensor Replacement (Left Side)

Callout Component Name
Preliminary Procedure
Disconnect the negative battery cable. Refer to Battery Negative Cable Disconnection and Connection .
1 Knock Sensor Fastener
CAUTION:

Refer to Fastener Caution .


Tighten
25Y (18 lb in)
2 Knock Sensor
Procedure
Disconnect the electrial connector.
