Ambient Temperature Sensor / Switch HVAC

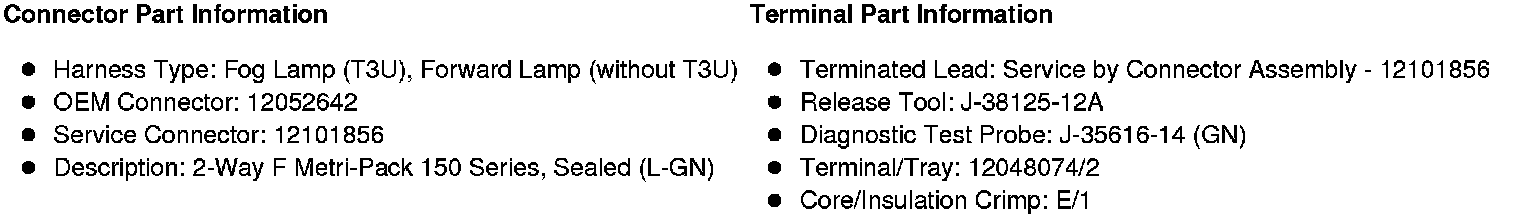

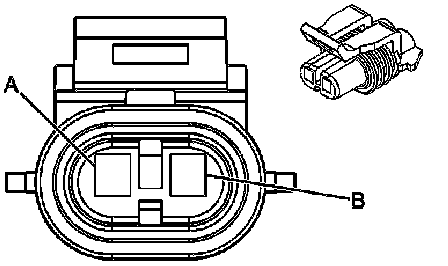

Component Connector End Views

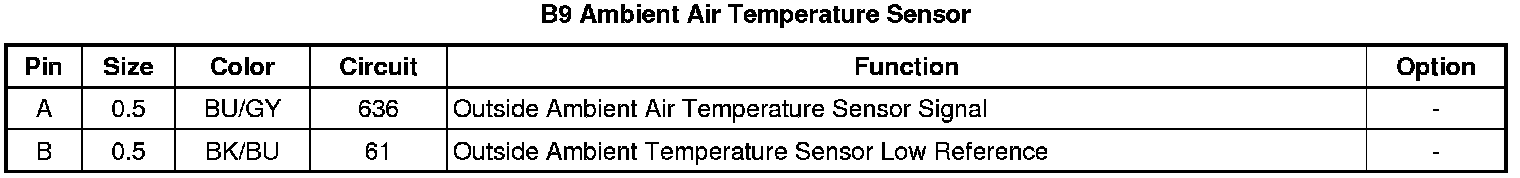

B9 Ambient Air Temperature Sensor
