Telematics Communication Interface Control Module X2 (UE1)

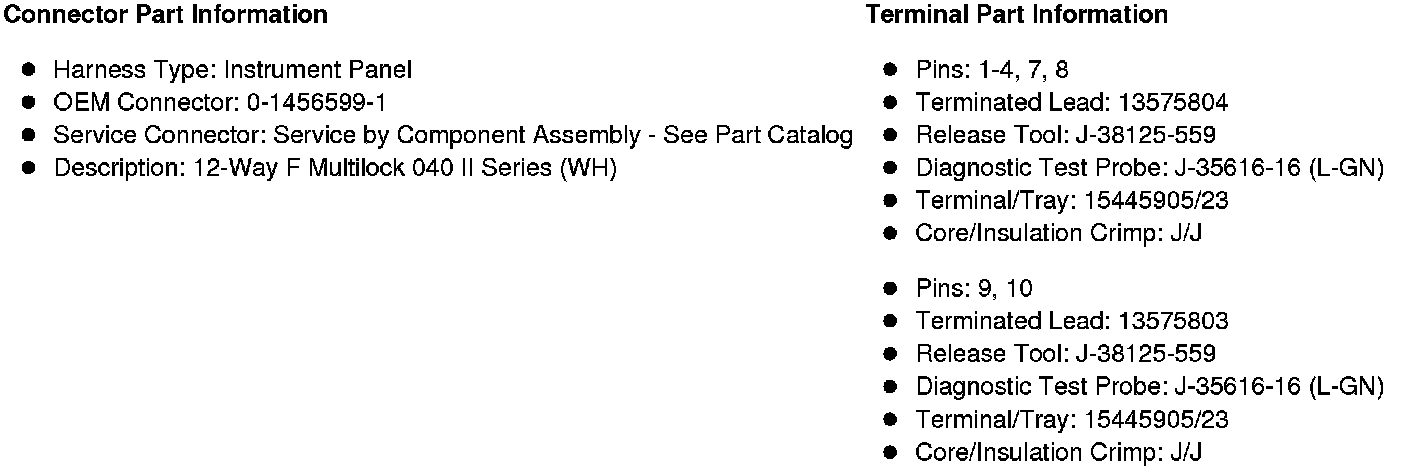

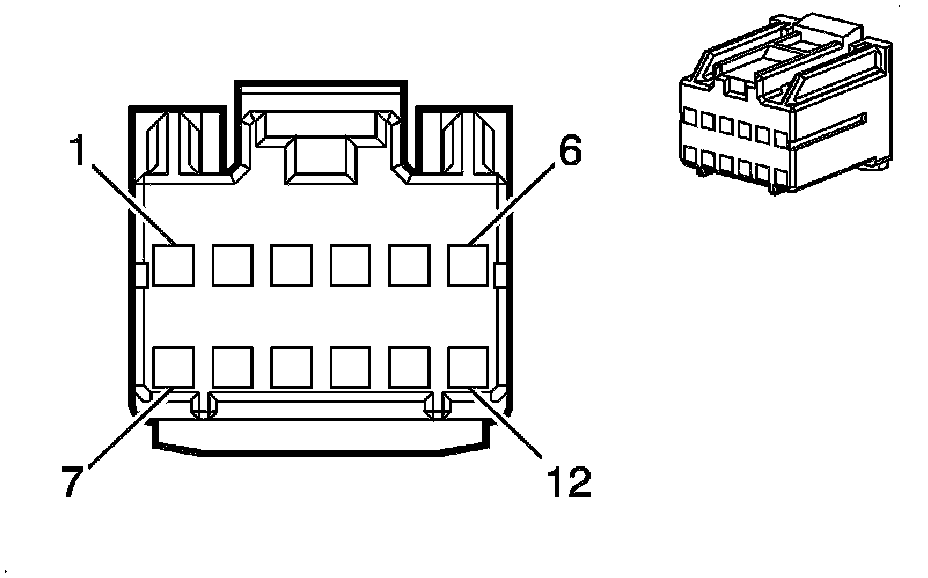

Component Connector End Views

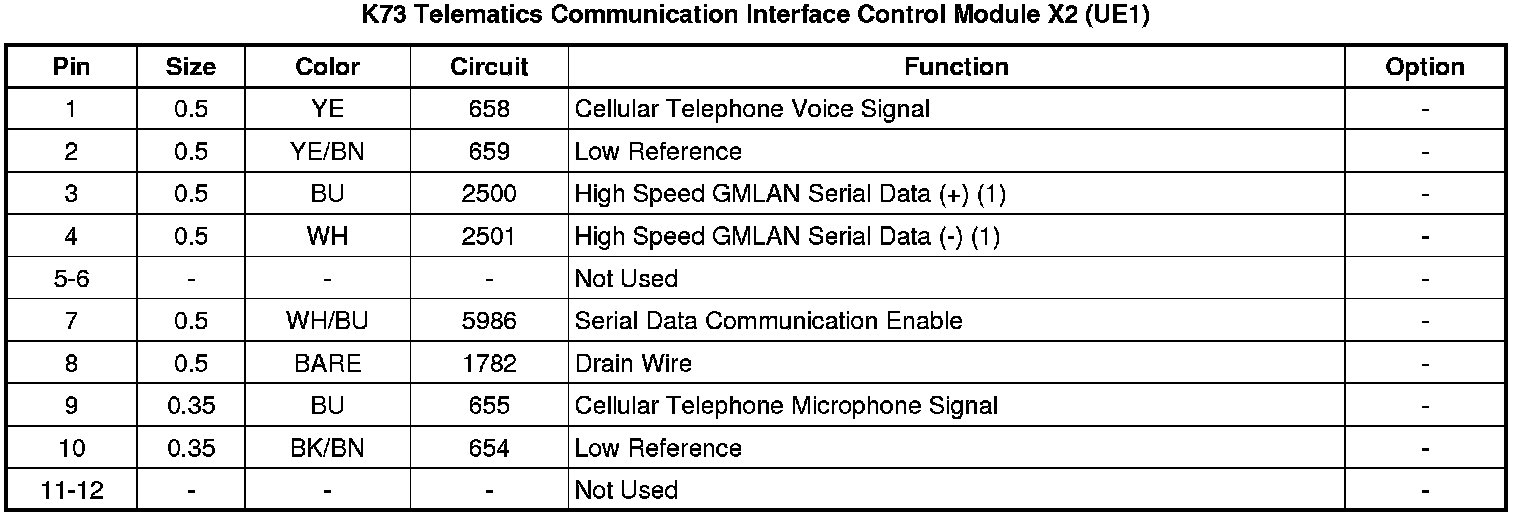

K73 Telematics Communication Interface Control Module X2 (UE1)
