Engine - Coolant Temperature Sensor/Switch

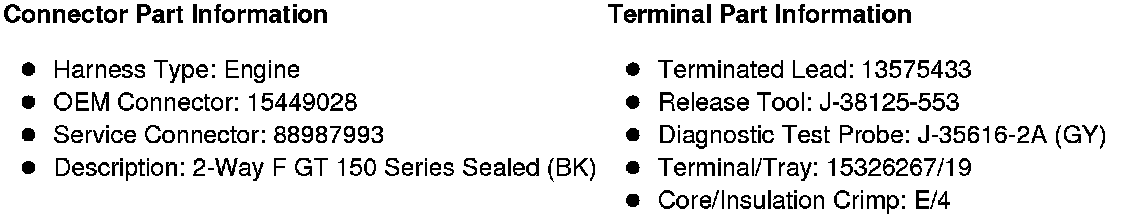

Component Connector End Views

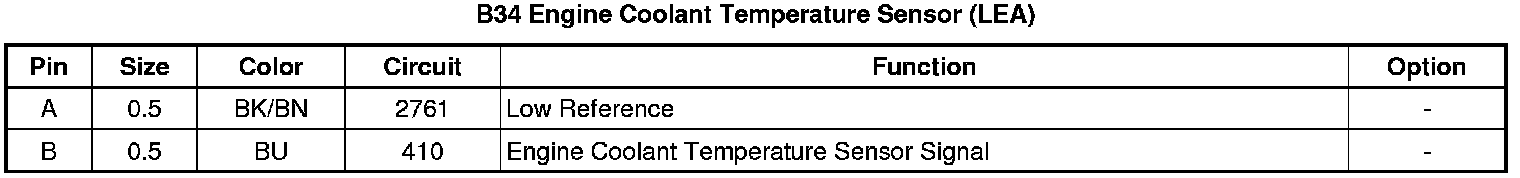

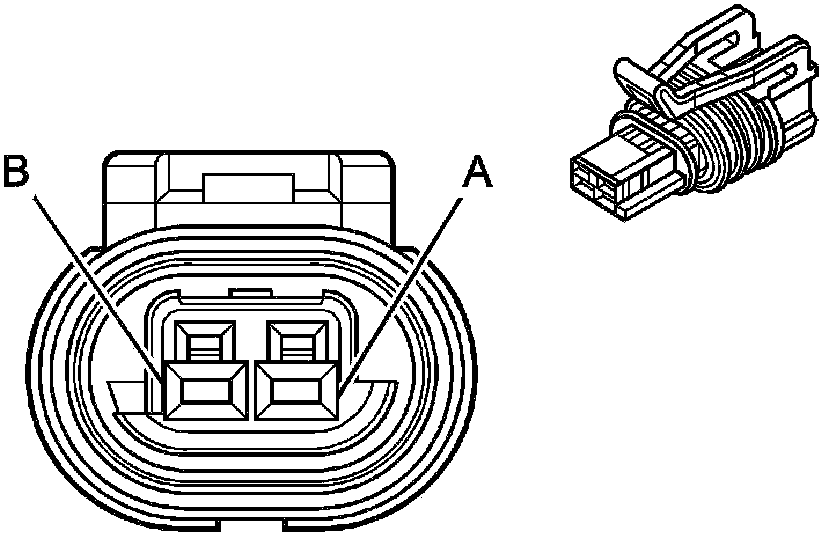

B34 Engine Coolant Temperature Sensor (LEA)
