Transmission Shift Position Indicator Lamp

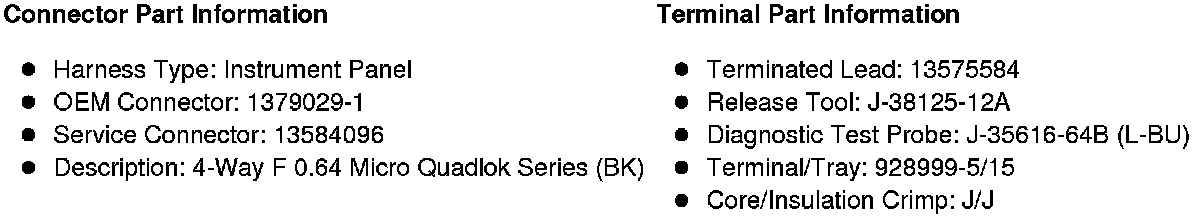

Component Connector End Views

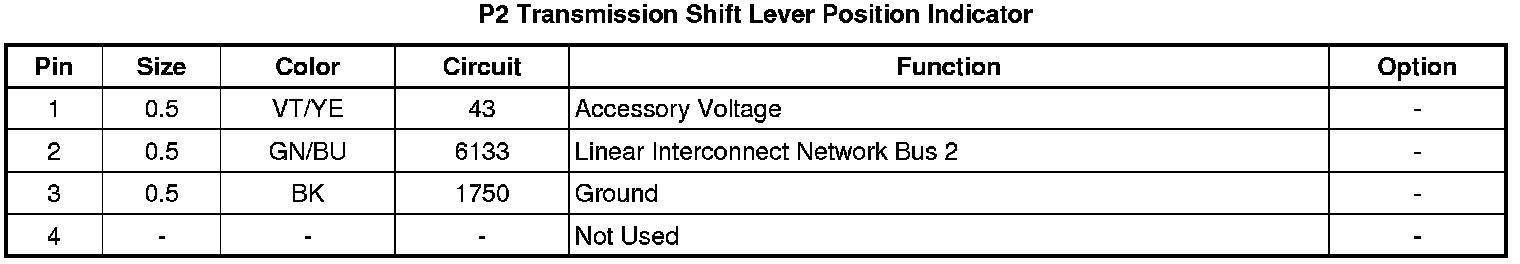

P2 Transmission Shift Lever Position Indicator
