Keyless Entry Transmitter




Remote Function Schematics

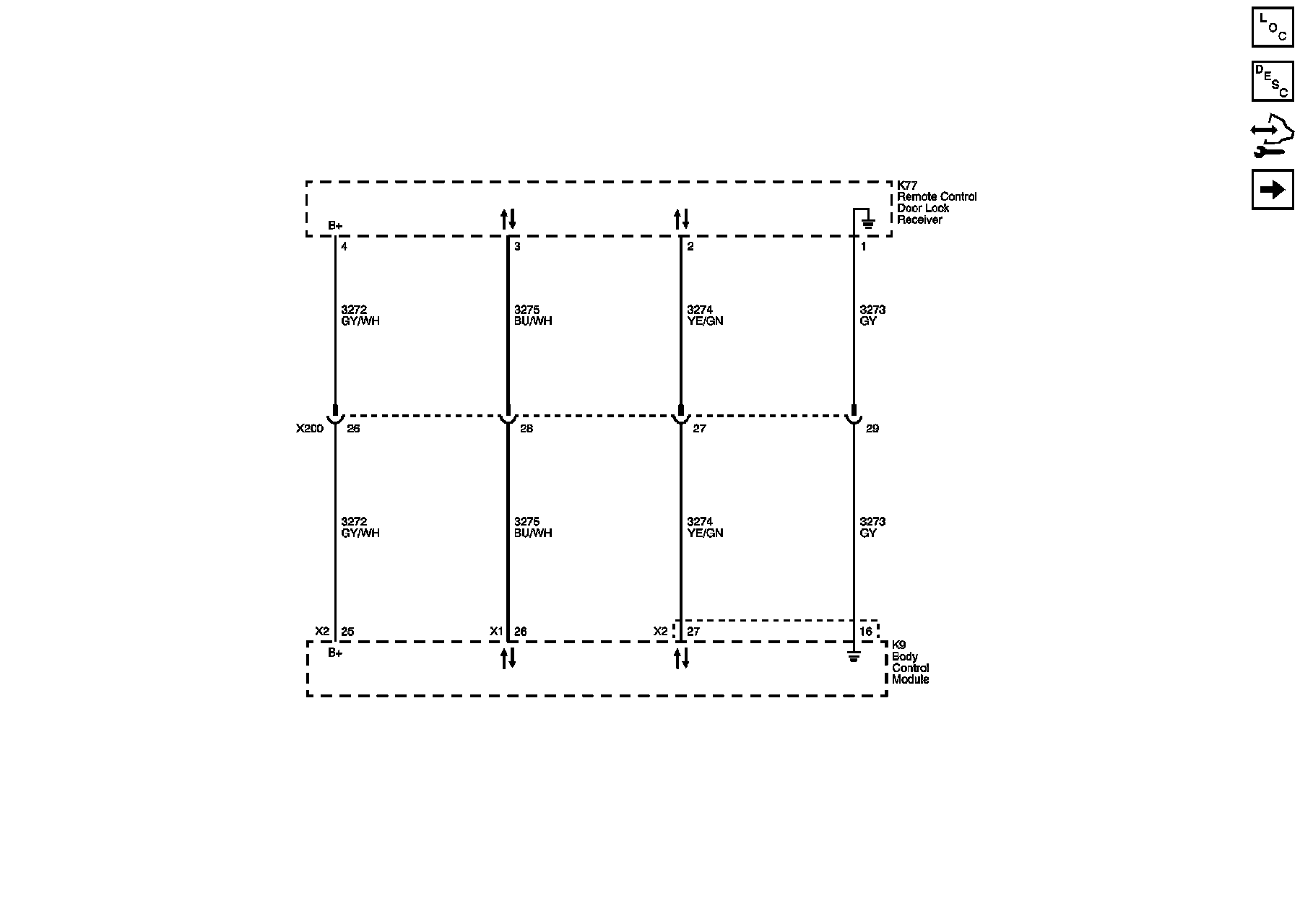

Keyless Entry

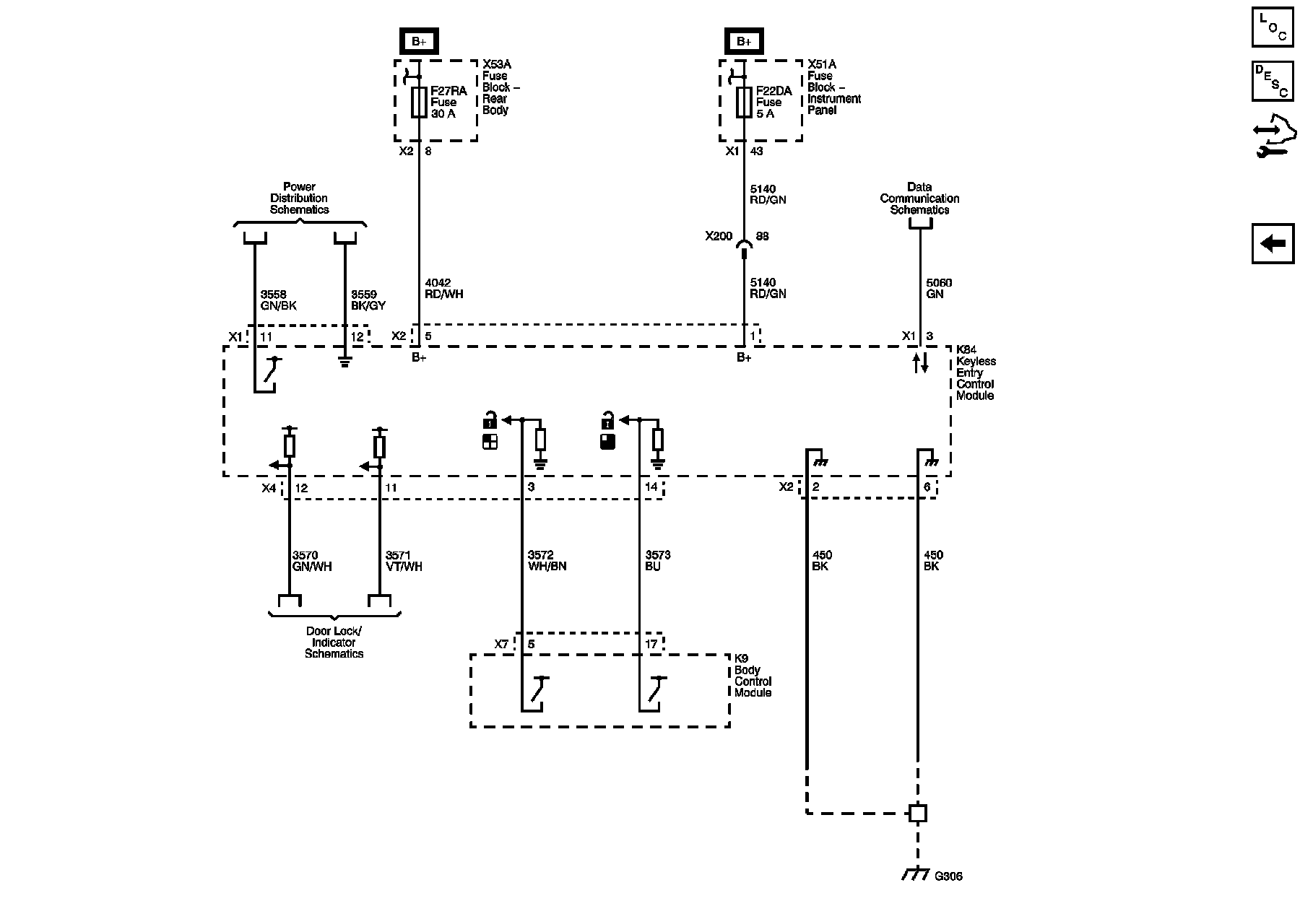

Passive Entry (ATH with BTM)

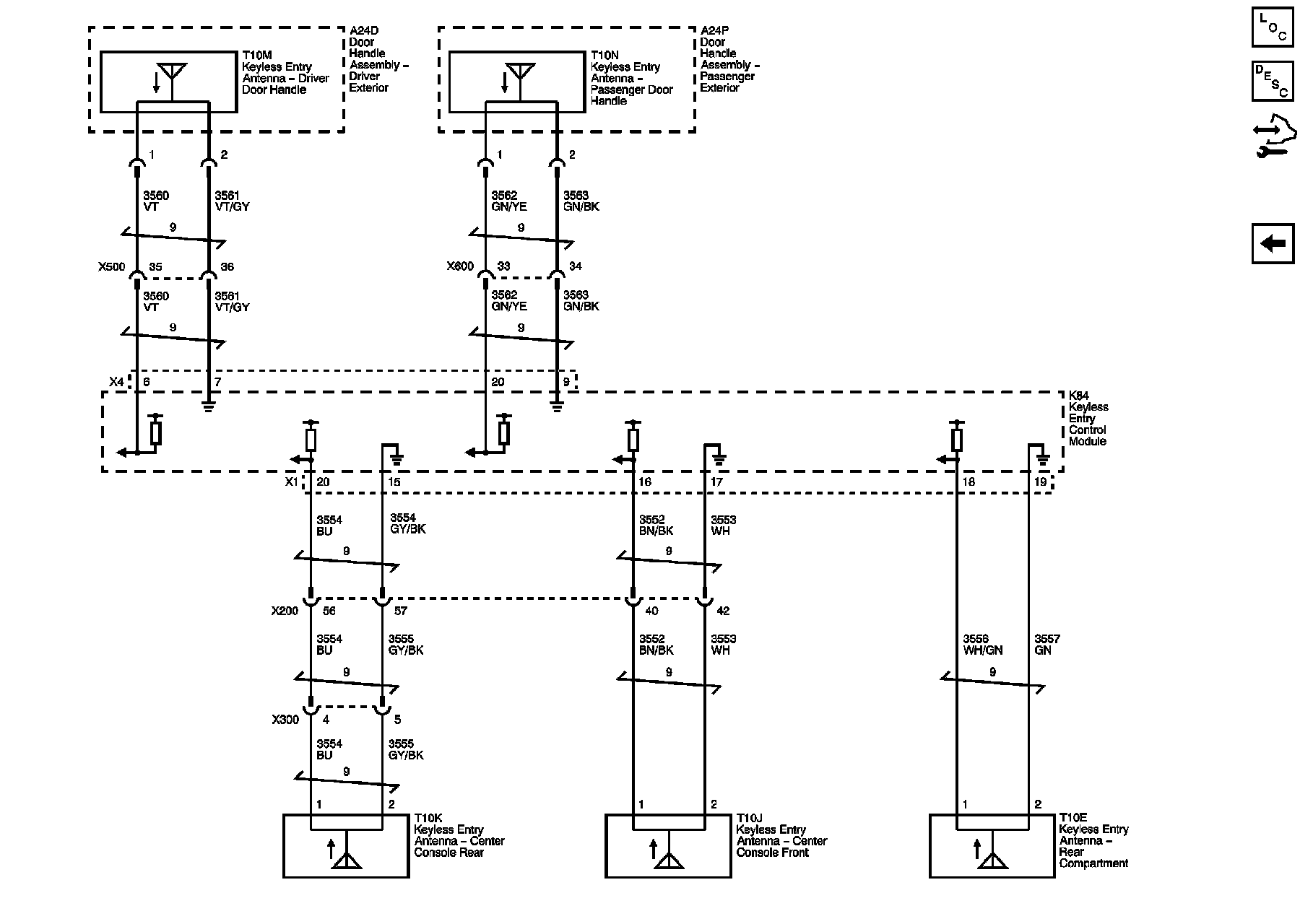

Passive Entry and Passive Start Antennas (ATH wth BTM)
