Timing Chain Guide Replacement

Timing Chain Guide Replacement

Removal Procedure

1. Remove the engine front cover. Refer to Engine Front Cover Replacement Service and Repair.

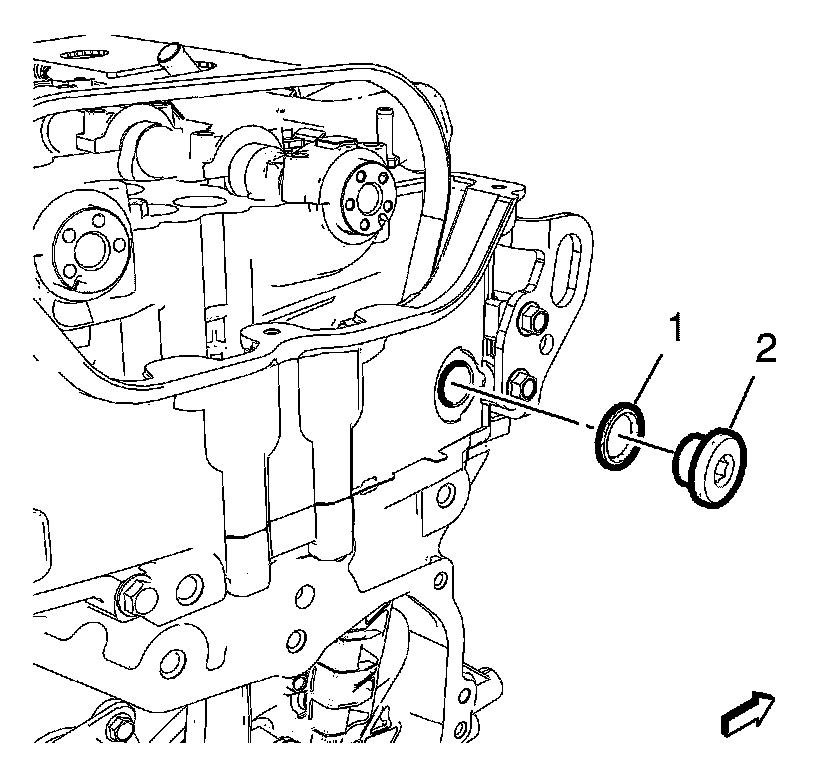

2. Remove the timing chain guide access hole plug (1) and the washer (2).

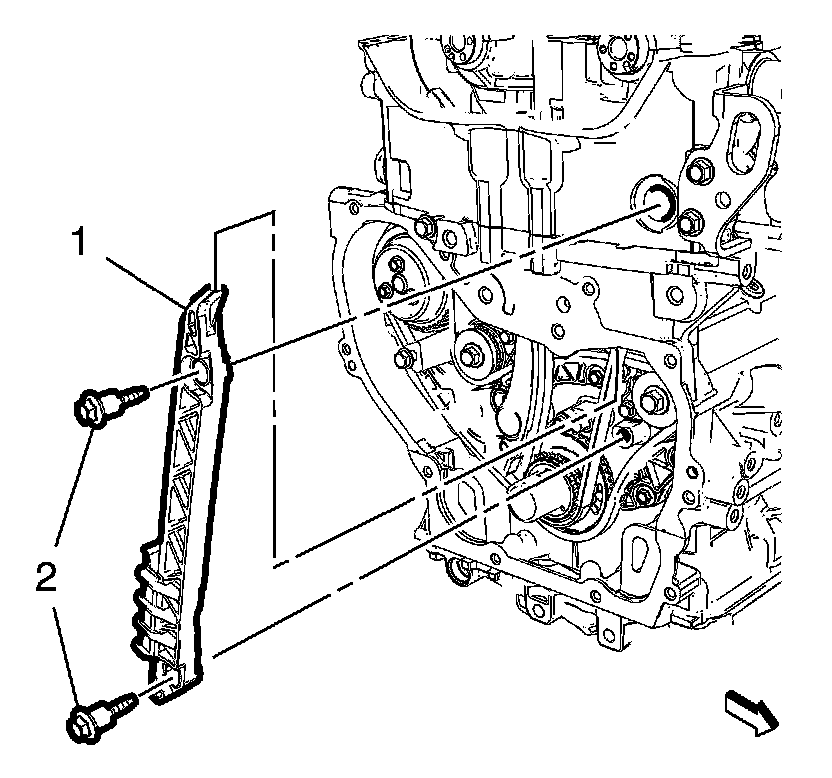

3. Remove the timing chain guide bolts (2) and the timing chain guide (1).

Installation Procedure





Caution:
Refer to Fastener Caution Fastener Caution.

1. Install the timing chain guide (1) and the timing chain guide bolts (2) and tighten to 12 Nm (106 lb in).





2. Install the timing chain guide access hole plug (1) and the NEW washer (2) and tighten to 75 Nm (55 lb ft).

3. Install the engine front cover. Refer to Engine Front Cover Replacement Service and Repair.
