Compressor Control Valve Assembly: Locations

Powertrain Component Views

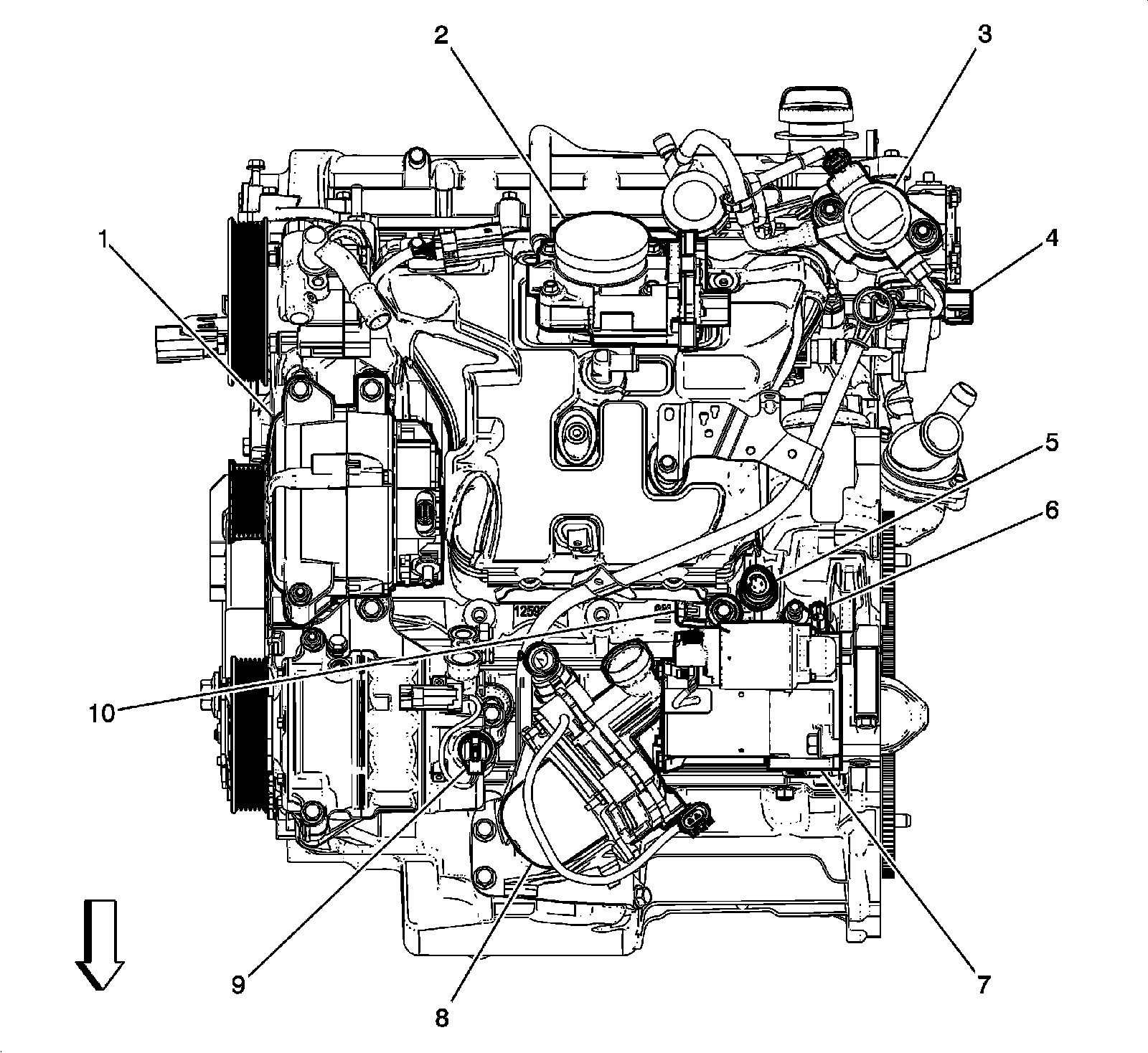

Front of Engine Components (1 of 2)





1 - G13 Generator

2 - Q38 Throttle Body

3 - G18 High Pressure Fuel Pump

4 - B23F Camshaft Position Sensor - Intake

5 - B37 Engine Oil Pressure Switch

6 - B68 Knock Sensor

7 - B26 Crankshaft Position Sensor

8 - M64 Starter Motor

9 - G21 Secondary Air Injection Pump (NU6)

10 - Q46 A/C Compressor Solenoid Valve
