HVAC Control Module

Instrument Panel/Center Console Component Views

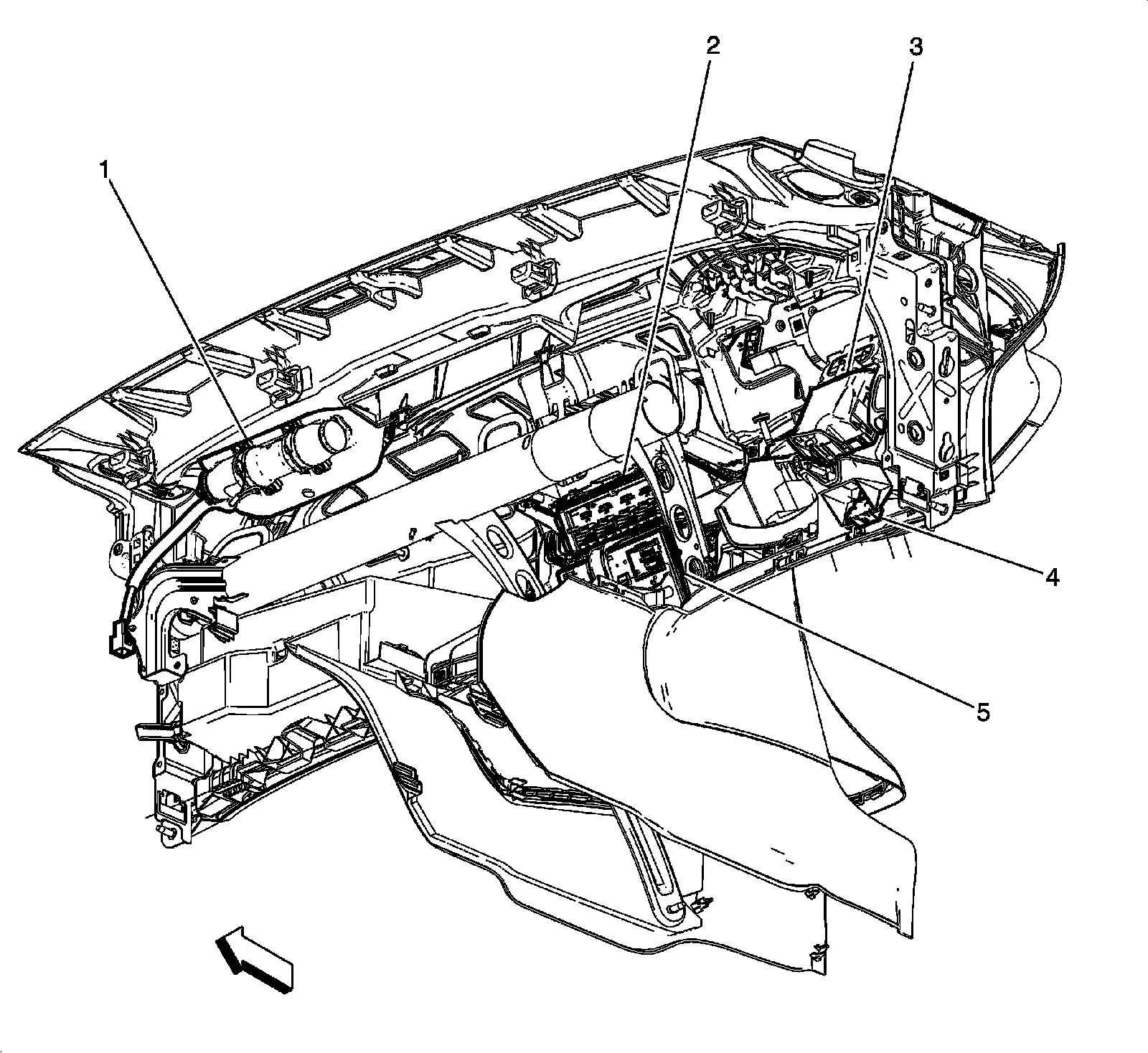

Behind the Instrument Panel Components





1 - F101 Passenger Instrument Panel Air Bag

2 - K33 HVAC Control Module

3 - X51A Fuse Block - Instrument Panel

4 - X84 Data Link Connector

5 - A11 Radio
