Instrument Panel Components

Instrument Panel/Center Console Component Views

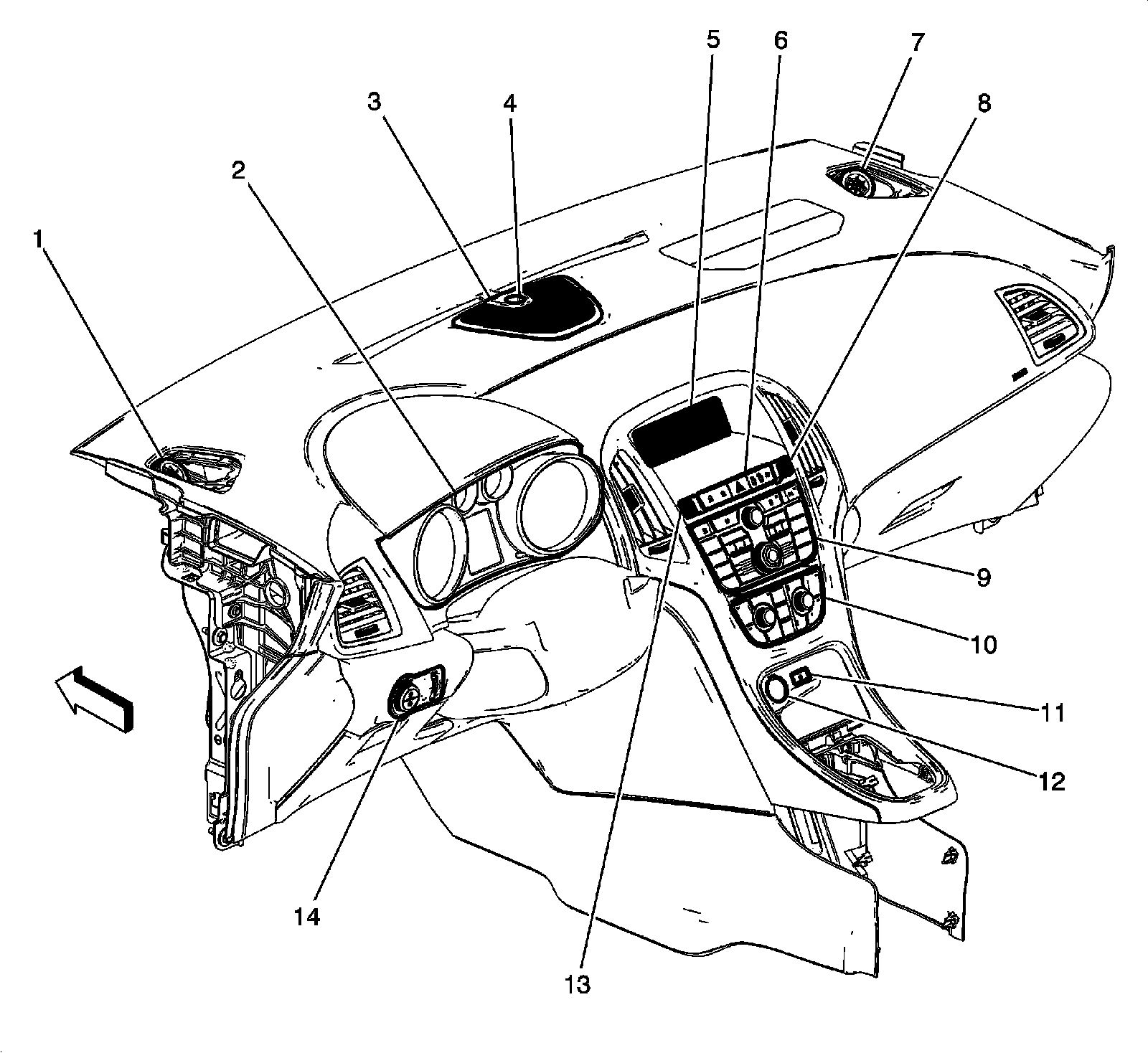

Instrument Panel Components





1 - P19AH Speaker - Right Front Door

2 - P16 Instrument Cluster

3 - P19B Speaker - Center Instrument Panel

4 - B10B Ambient Light/Sunload Sensor

5 - P17 Info Display Module

6 - S48A Multifunction Switch - Instrument Panel

7 - P19V Speaker - Right Front Tweeter

8 - S58B Rear Compartment Lid Unlatch Switch - Interior

9 - A22 Radio Controls

10 - A26 HVAC Controls

11 - X83

12 - E32 Cigarette Lighter Receptacle

13 - S38 Ignition Mode Switch (ATH)

14 - S30 Headlamp Switch
