Left HVAC Components

Instrument Panel/Center Console Component Views

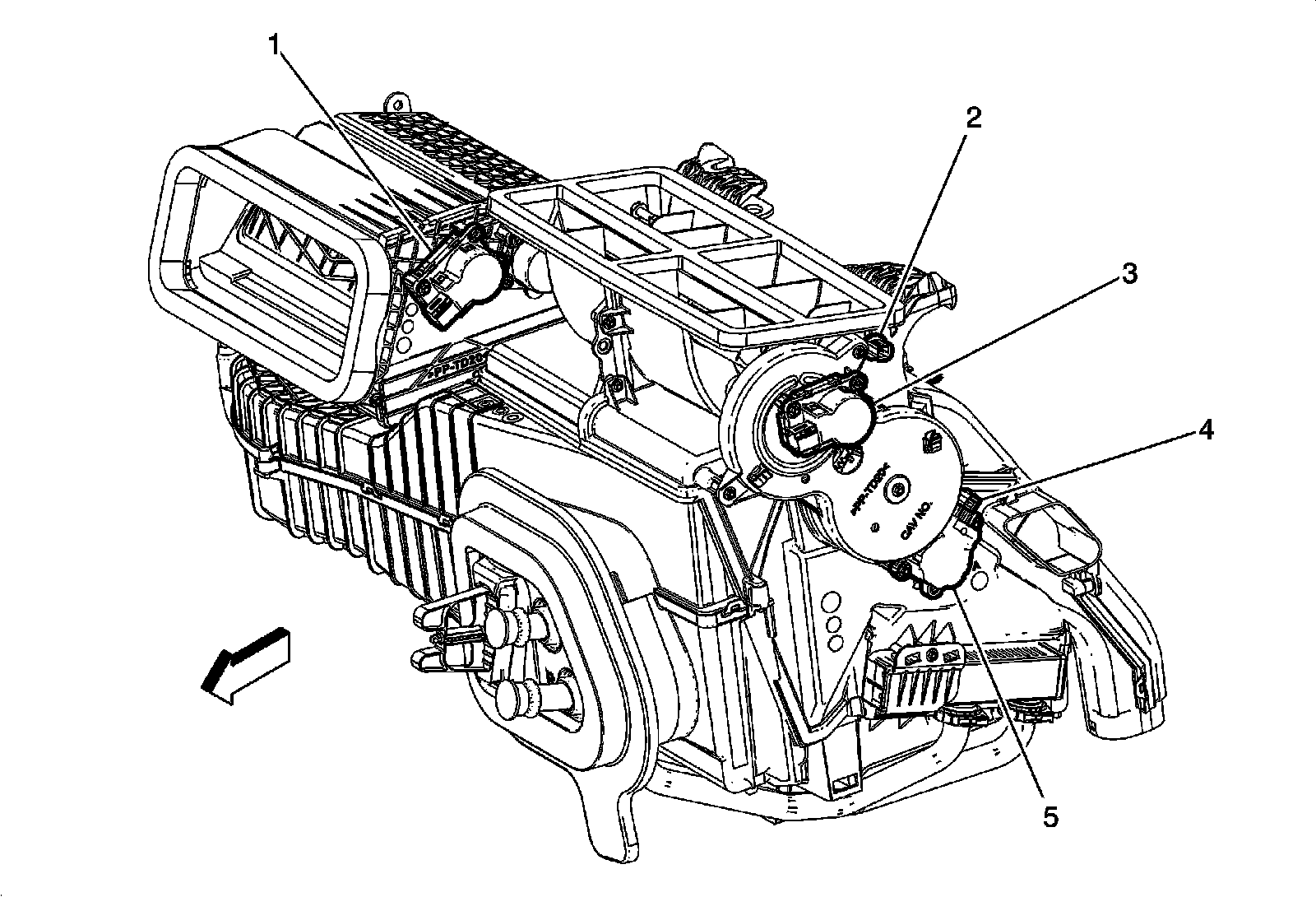

Left HVAC Components





1 - M4 Air Inlet Door Actuator

2 - B7H Air Temperature Sensor - Duct Left Upper

3 - M37B Mode Door Actuator - Auxiliary

4 - B7D Air Temperature Sensor - Duct Left Lower

5 - M6B Air Temperature Door Actuator - Auxiliary
