Right HVAC Components

Instrument Panel/Center Console Component Views

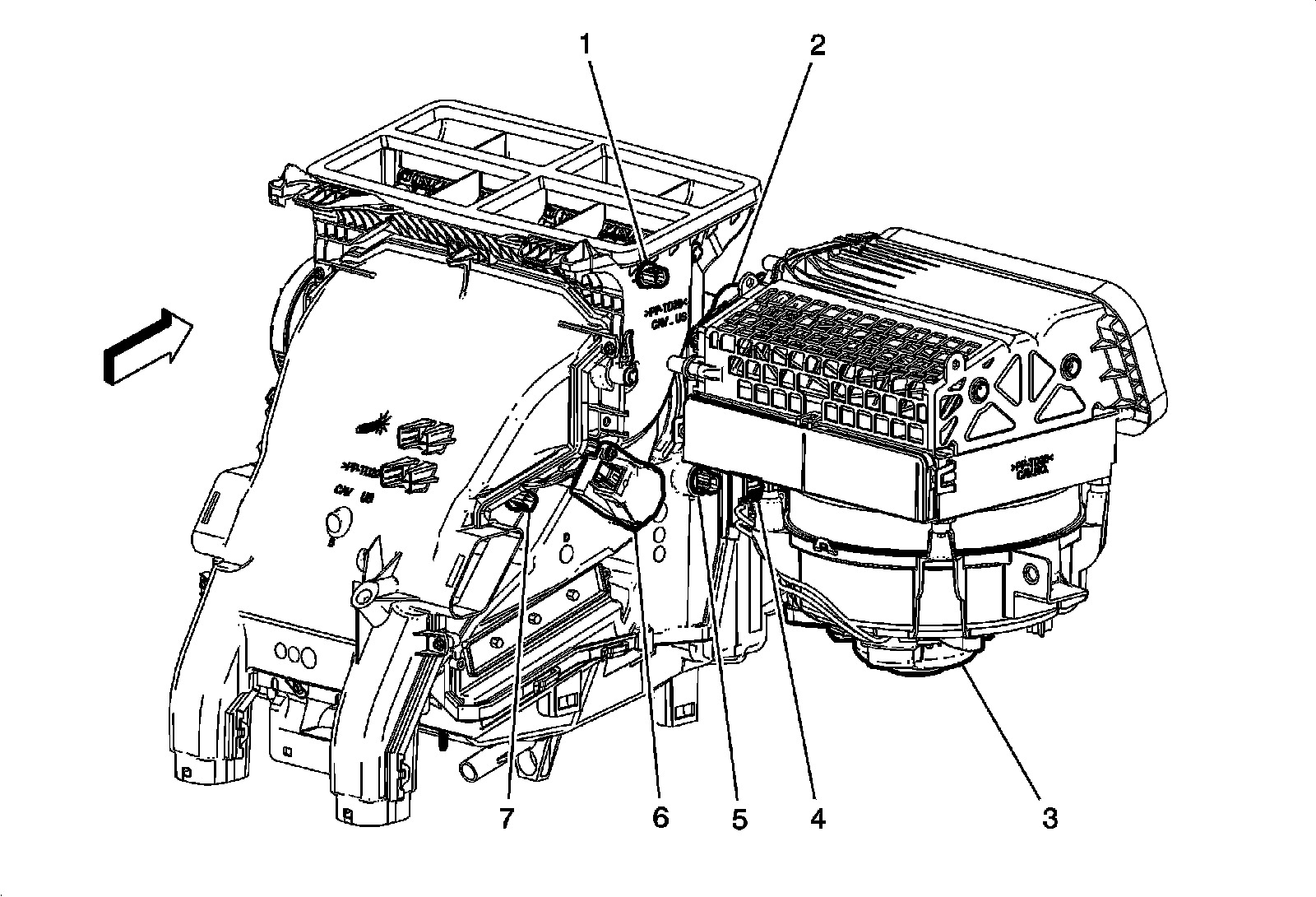

Right HVAC Components





1 - B7H Air Temperature Sensor - Duct Left Upper

2 - M4 Air Inlet Door Actuator

3 - M8 Blower Motor

4 - K8 Blower Motor Control Module

5 - B39 A/C Evaporator Temperature Sensor

6 - M6 Air Temperature Door Actuator

7 - B7J Air Temperature Sensor - Duct Right Upper
