Wheels/Vehicle Underbody Component Views




Wheels/Vehicle Underbody Component Views

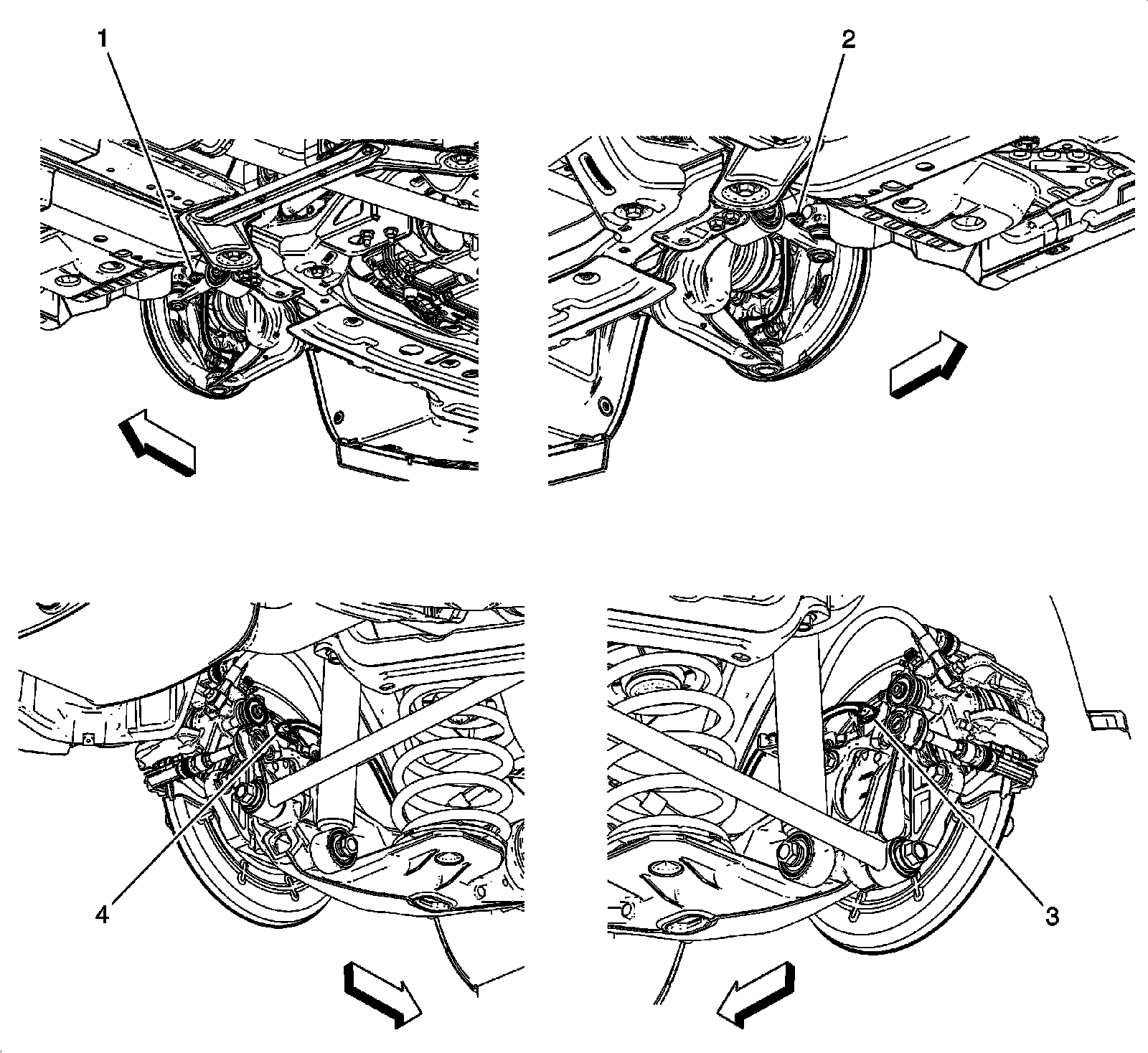

Wheel Components





1 - B5LF Wheel Speed Sensor - Left Front

2 - B5RF Wheel Speed Sensor - Right Front

3 - B5LR Wheel Speed Sensor - Left Rear

4 - B5RR Wheel Speed Sensor - Right Rear
