Front Compartment Fuse Block Housing Replacement

Front Compartment Fuse Block Housing Replacement

Removal Procedure

1. Remove front compartment fuse block. Refer to Front Compartment Fuse Block Replacement Front Compartment Fuse Block Replacement.

2. Remove windshield washer solvent container filler tube.

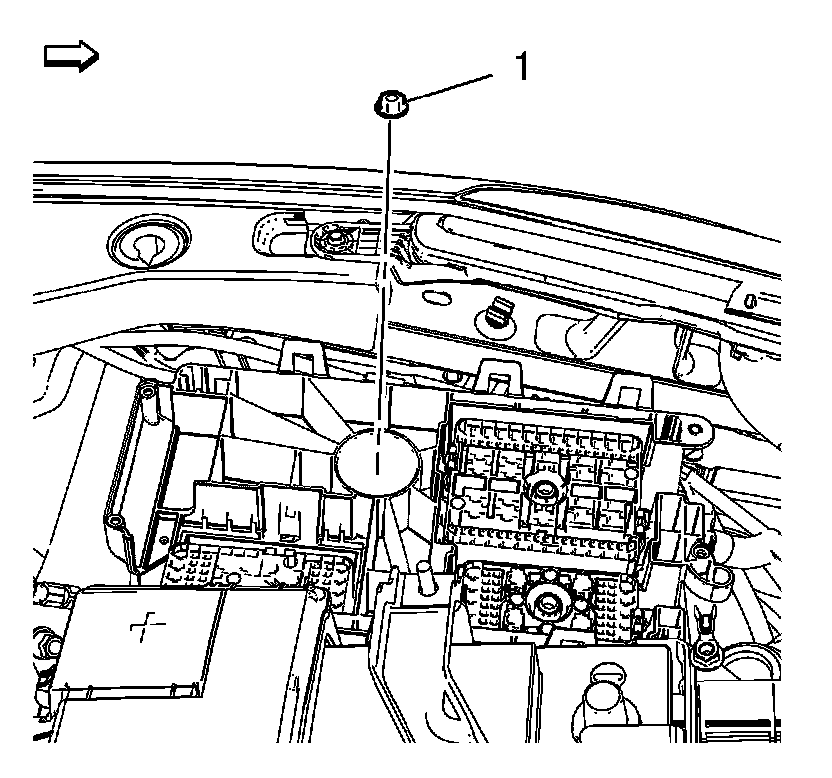

3. Remove front compartment fuse block housing nut (1).

4. Remove front compartment fuse block housing.

* Remove 3 connector from front compartment fuse block housing

* Remove attaching parts.

Installation Procedure

1. Install front compartment fuse block housing.

* Install attaching parts

* Install 3 connector.

Caution:
Refer to Fastener Caution Fastener Caution.

2. Install wiring harness and install nut, tighten to 22 Nm (16 lb ft).

3. Install windshield washer solvent container filler tube.

4. Install front compartment fuse block. Refer to Front Compartment Fuse Block Replacement Front Compartment Fuse Block Replacement.
