Fuel Tank Pressure Sensor: Service and Repair

Fuel Tank Pressure Sensor Replacement

Removal Procedure

1. Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection Battery Negative Cable Disconnection and Connection.

2. Remove the fuel tank. Refer to Fuel Tank Replacement Fuel Tank Replacement.

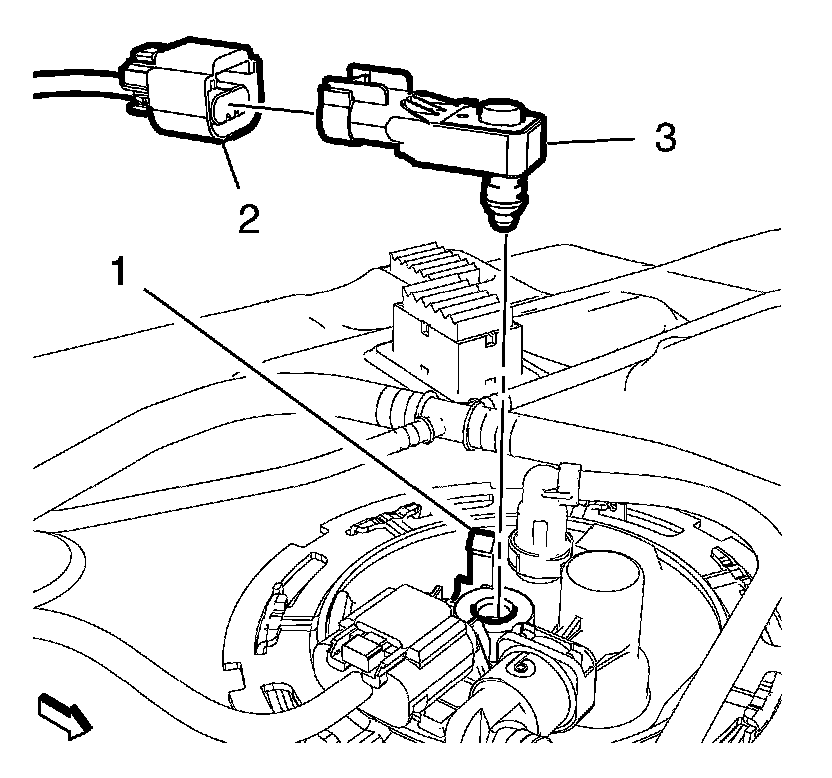

3. Disconnect the fuel tank pressure sensor wiring harness plug (2).

4. Unclip the fuel tank pressure sensor (3) from the fuel tank pump module clip (1).

Installation Procedure





1. Clip the fuel tank pressure sensor (3) to the fuel tank pump module clip (1).

2. Connect the fuel tank pressure sensor wiring harness plug (2).

3. Install the fuel tank. Refer to Fuel Tank Replacement Fuel Tank Replacement.

4. Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection Battery Negative Cable Disconnection and Connection.
