Electrical Diagrams
Data Communication Schematics

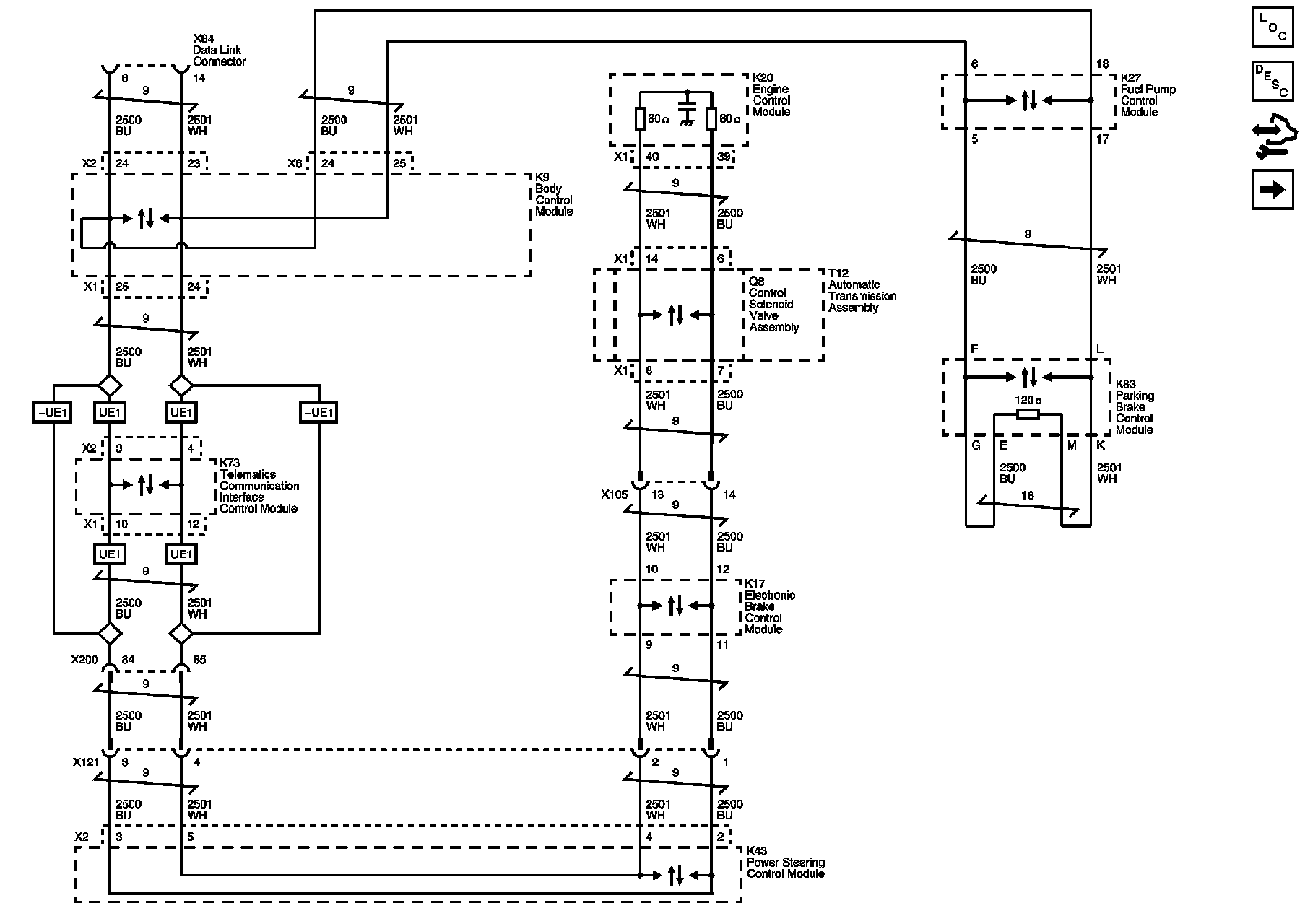

High Speed Bus 1

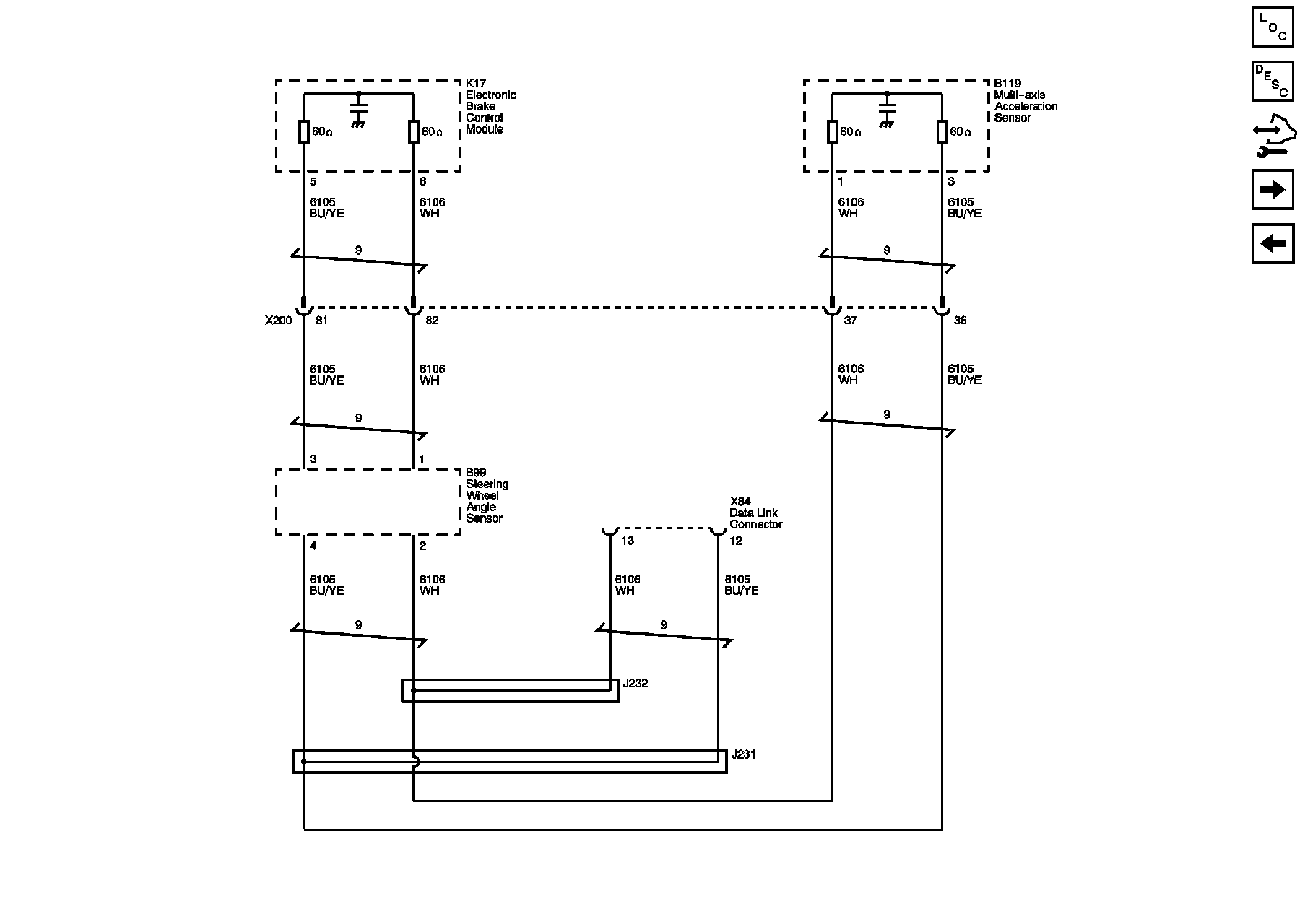

High Speed Bus 2

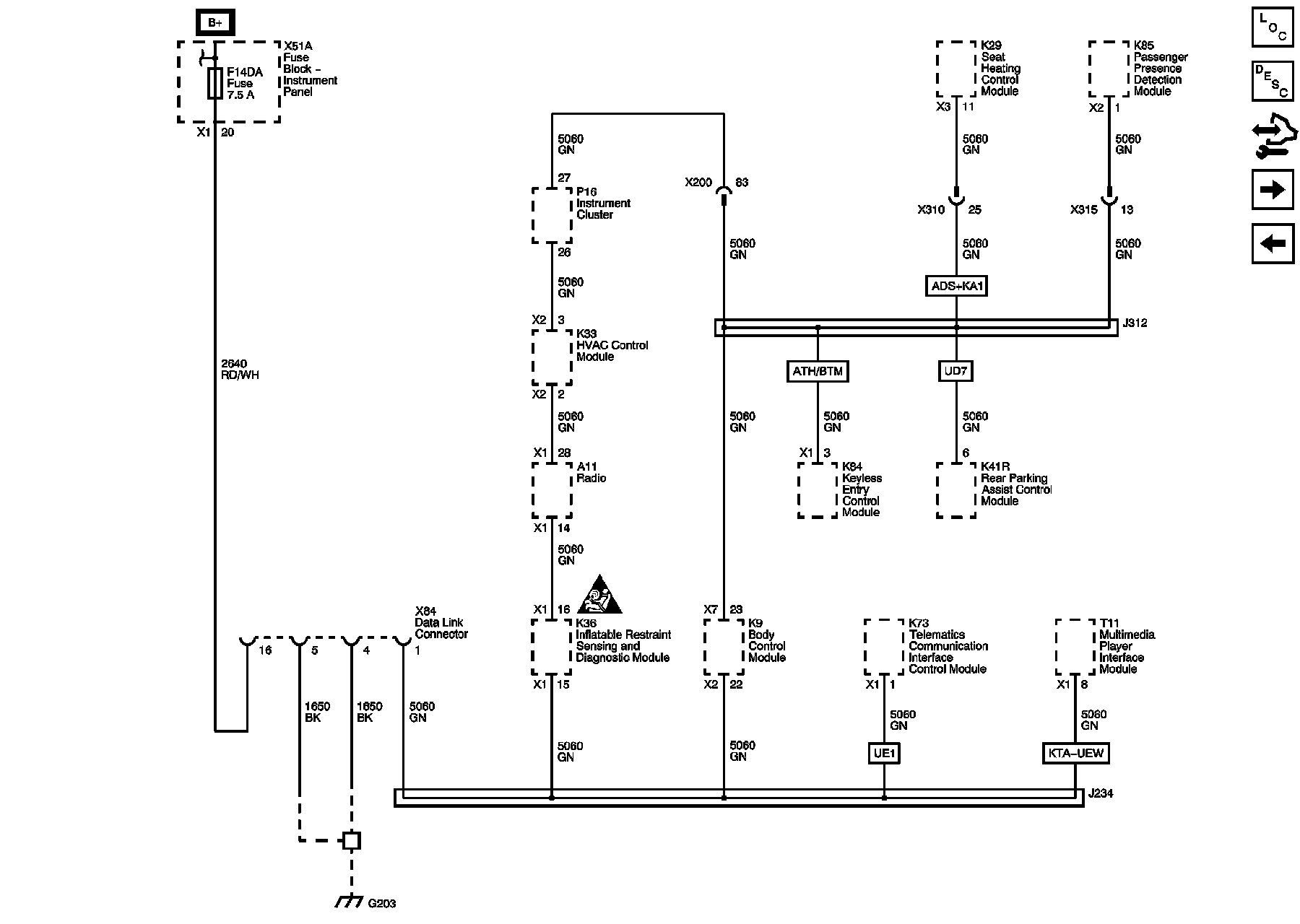

Low Speed Bus

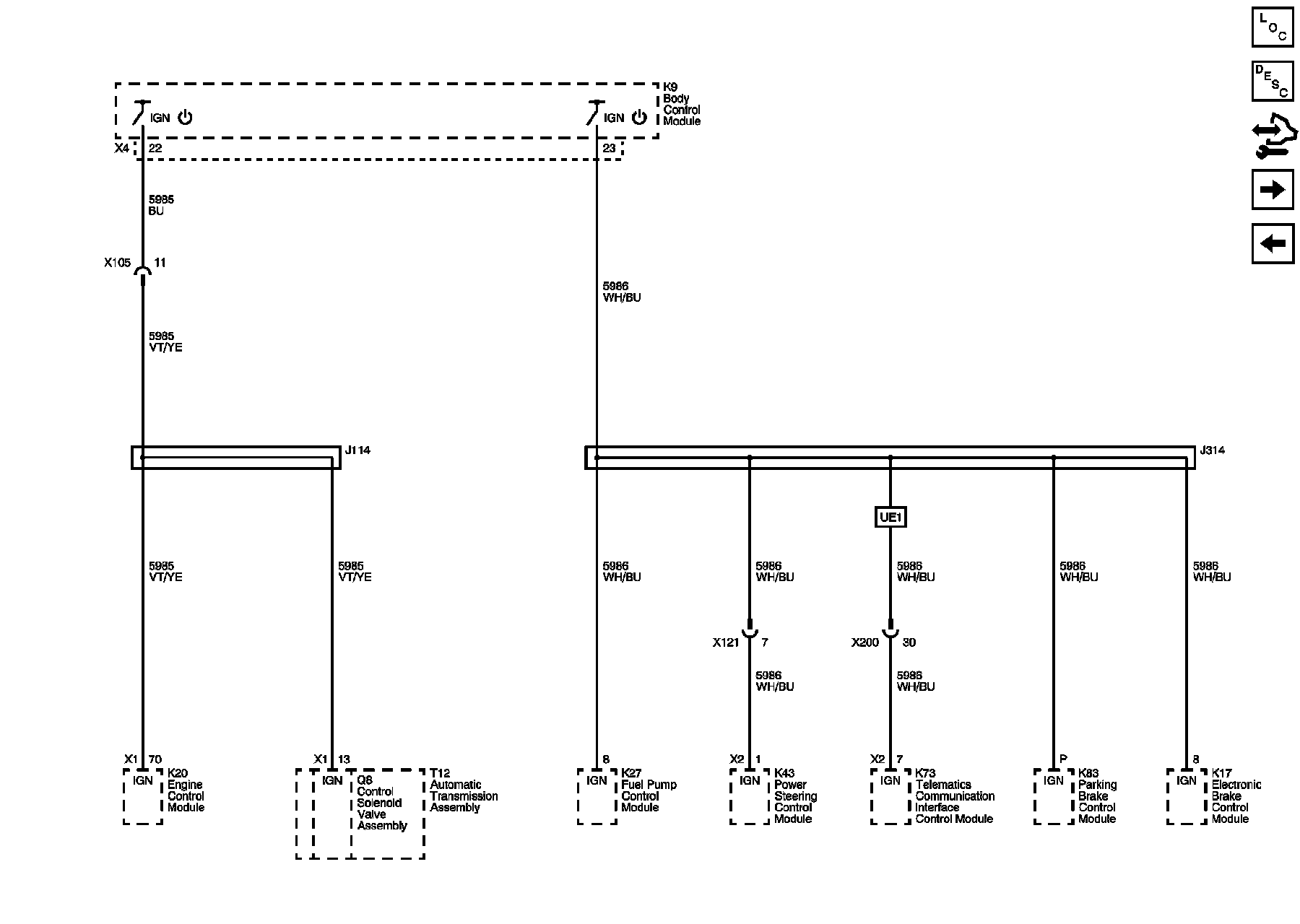

Serial Data Communication Enable

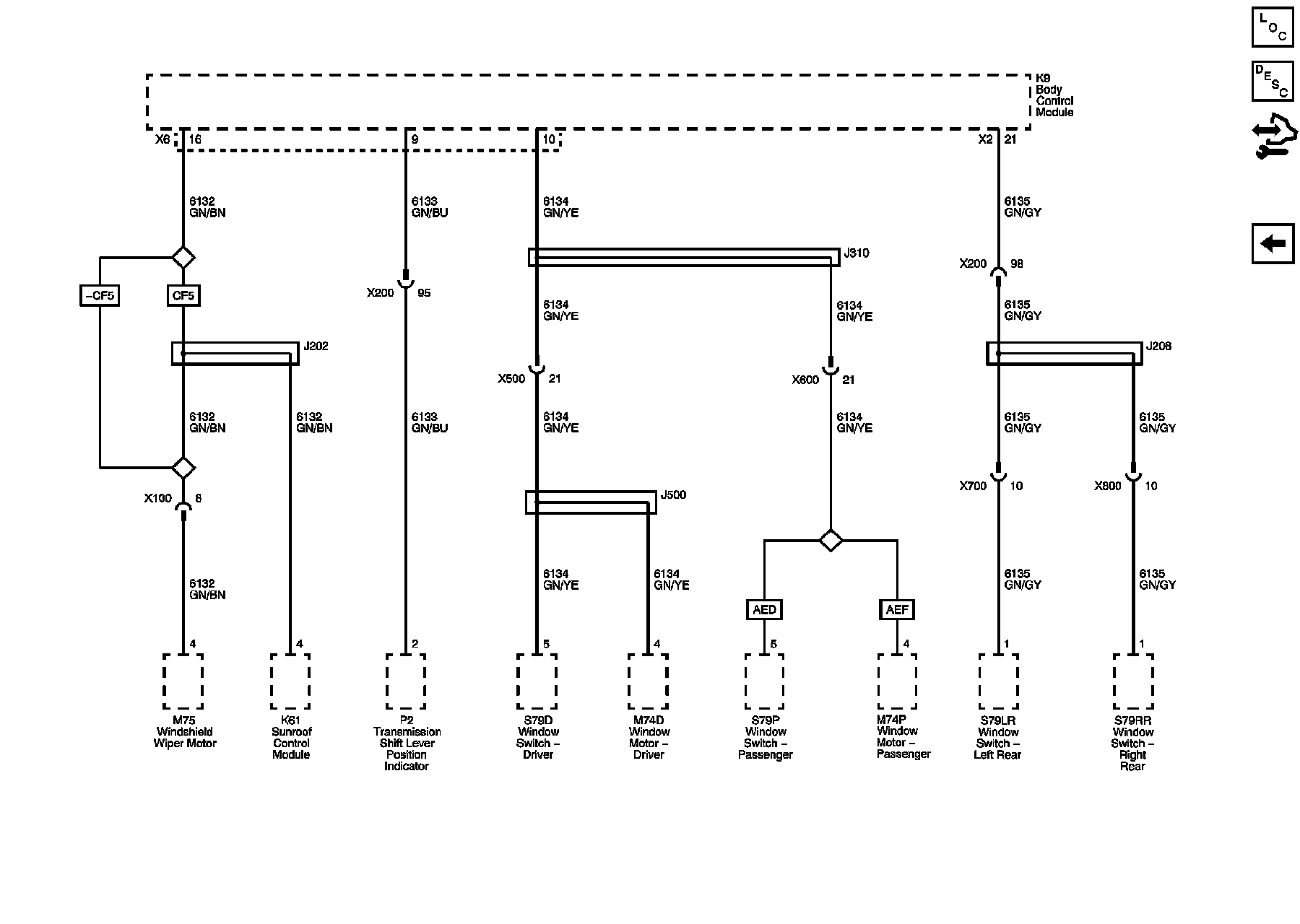

Linear Interconnect Network (LIN)
Data Communication Schematics
High Speed Bus 1
High Speed Bus 2
Low Speed Bus
Serial Data Communication Enable
Linear Interconnect Network (LIN)
