Body Control Module: Locations

Passenger Compartment/Roof Component Views

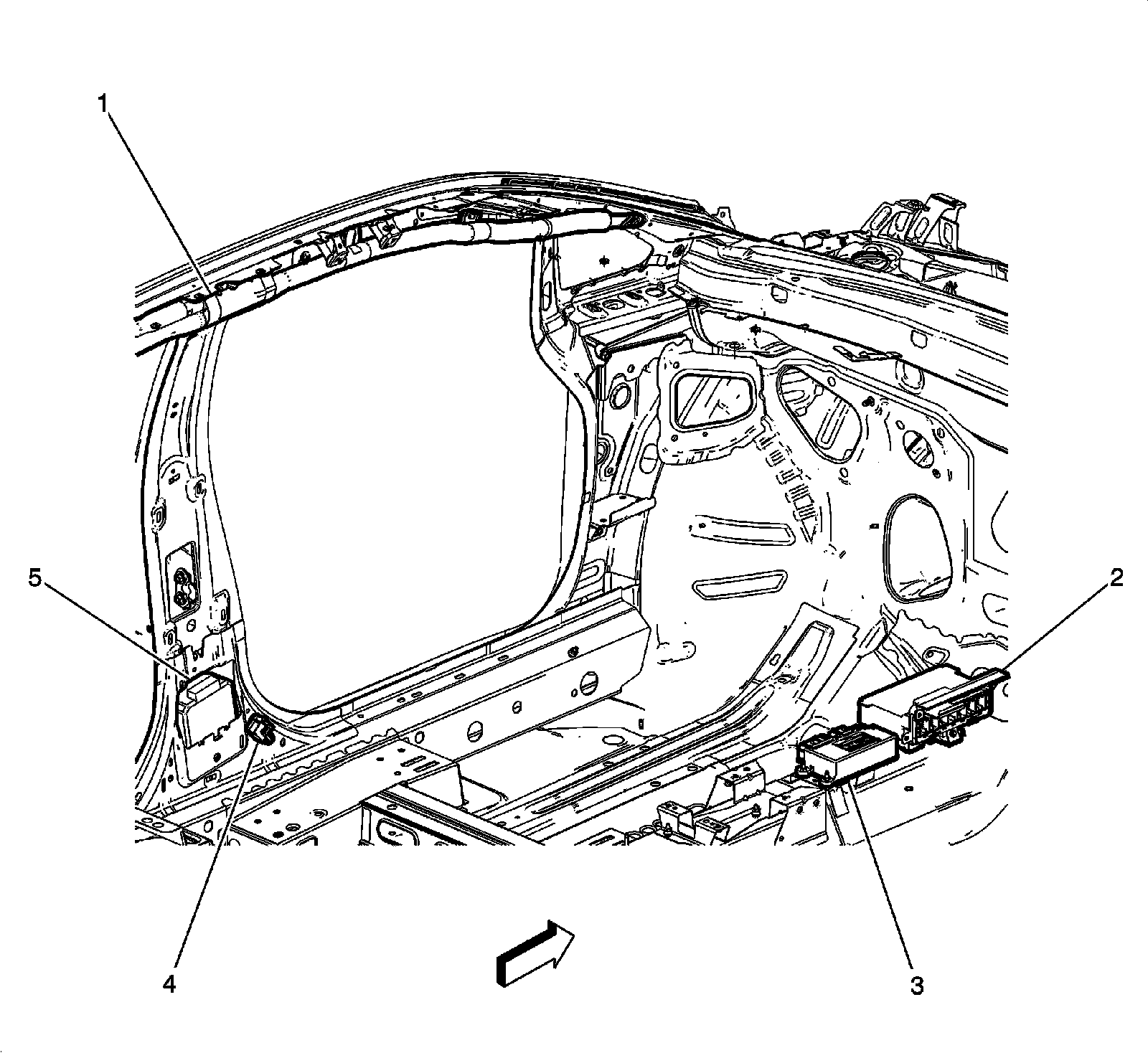

Left Front of Passenger Compartment Components





1 - F105L Roof Rail Air Bag - Left

2 - K9 Body Control Module

3 - K36 Inflatable Restraint Sensing and Diagnostic Module

4 - B63LF Side Impact Sensor - Left Front

5 - F112D Seat Belt Retractor Pretensioner - Driver
