Automatic Transmission Components

Automatic Transmission Components

Component Name Callout
B15 Transmission Internal Mode Switch 1
B14A Transmission Output Shaft Speed Sensor 2
B14C Transmission Input Shaft Speed Sensor 3
Q8 Control Solenoid Valve Assembly 4

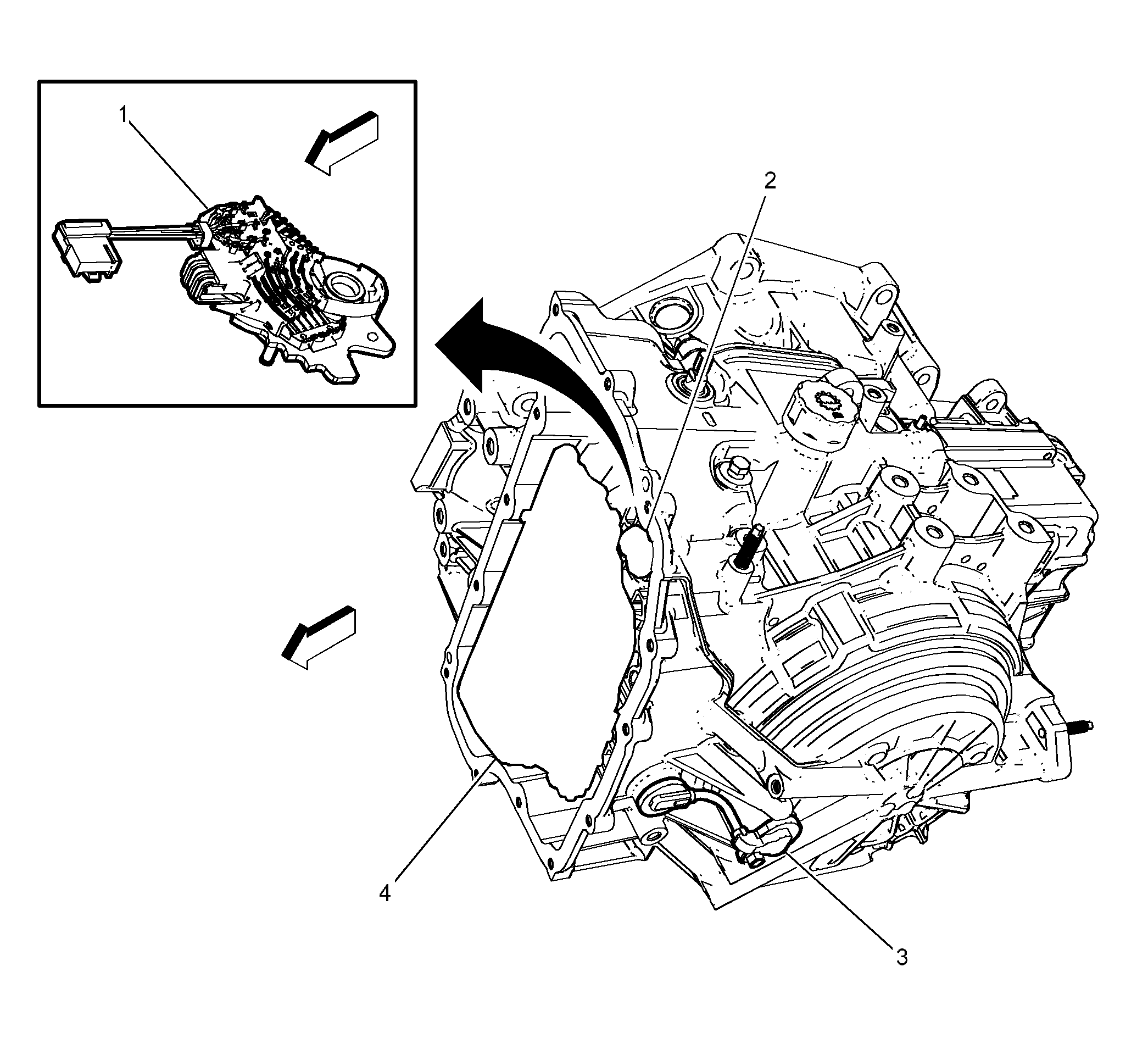

Fig 1: Automatic Transmission Components
GM2701736Courtesy of GENERAL MOTORS COMPANY
