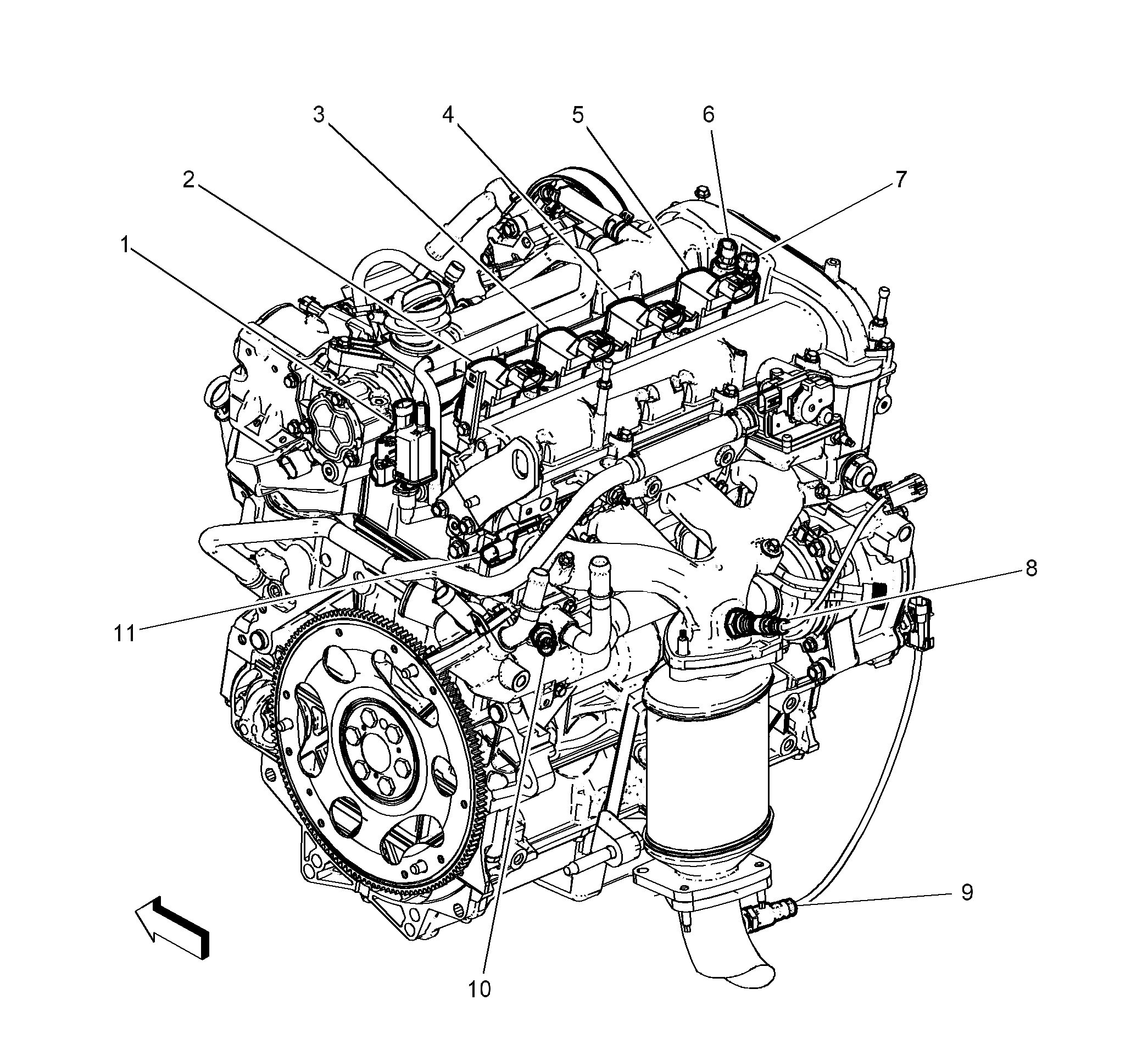

Left Rear Engine Components
Left Rear Engine Components
| Component Name | Callout |
|---|---|
| Q12 Evaporative Emission Purge Solenoid Valve | 1 |
| T8D Ignition Coil 4 | 2 |
| T8C Igntion Coil 3 | 3 |
| T8B Igntion Coil 2 | 4 |
| T8A Igntion Coil 1 | 5 |
| Q6F Camshaft Position Actuator Solenoid Valve - Intake | 6 |
| Q6E Camshaft Position Actuator Solenoid Valve - Exhaust | 7 |
| Q29 Secondary Air Injection Solenoid Valve (NU6) | 8 |
| B52A Heated Oxygen Sensor 1 | 9 |
| B52B Heated Oxygen Sensor 2 | 10 |
| B34 Engine Coolant Temperature Sensor | 11 |
| B23E Camshaft Position Sensor - Exhaust | 12 |
