Accelerator Pedal with Position Sensor Assembly Replacement

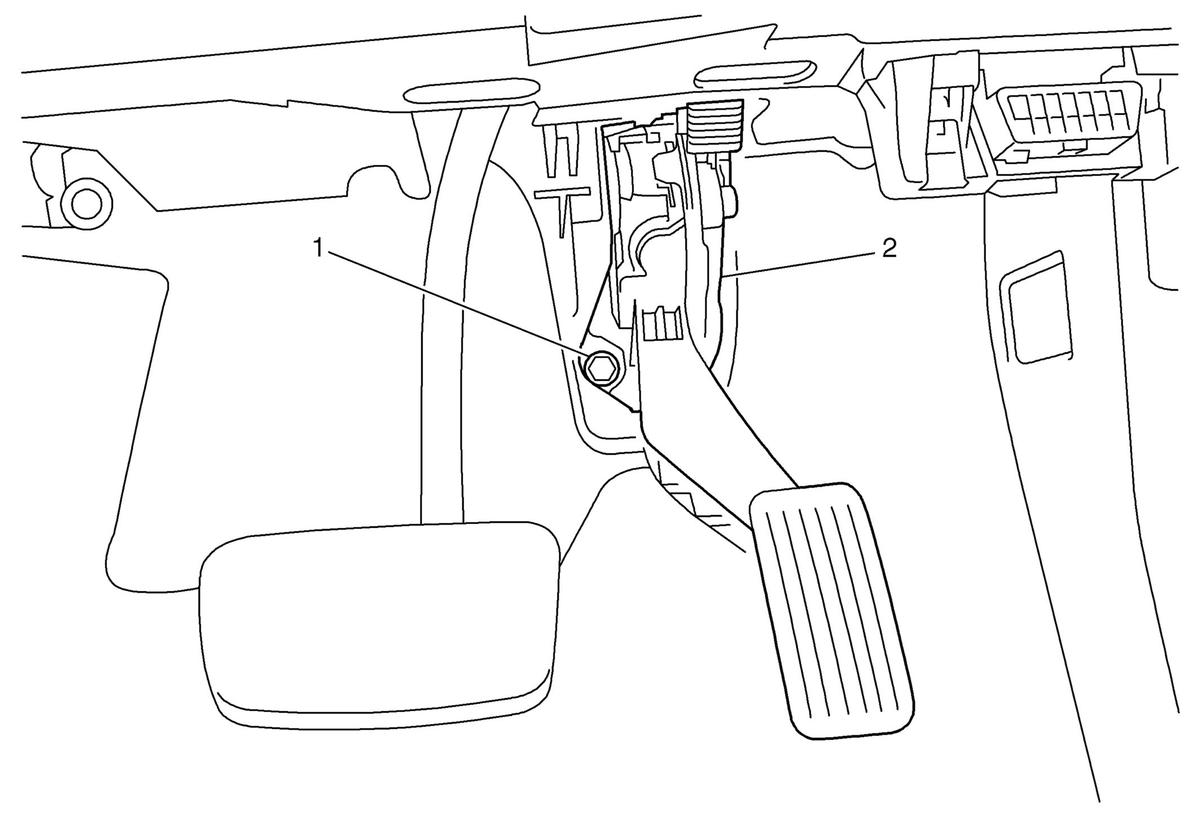

Fig 1: Accelerator Pedal Position Sensor & Fastener

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Accelerator Pedal Position Sensor Fastener CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Accelerator Pedal Position Sensor Procedure Disconnect electrical connector. After replacement of the accelerator pedal position sensor, use a scan tool to speed up learn functions. Refer to Engine Control Module Programming and Setup (LAF, LEA or LUK) .

Callout

Component Name

Accelerator Pedal Position Sensor Fastener

CAUTION:

Tighten
10 N.m (89 lb in)

Accelerator Pedal Position Sensor

Procedure

Disconnect electrical connector.
After replacement of the accelerator pedal position sensor, use a scan tool to speed up learn functions. Refer to Engine Control Module Programming and Setup (LAF, LEA or LUK) .
