Air Cleaner Assembly Replacement

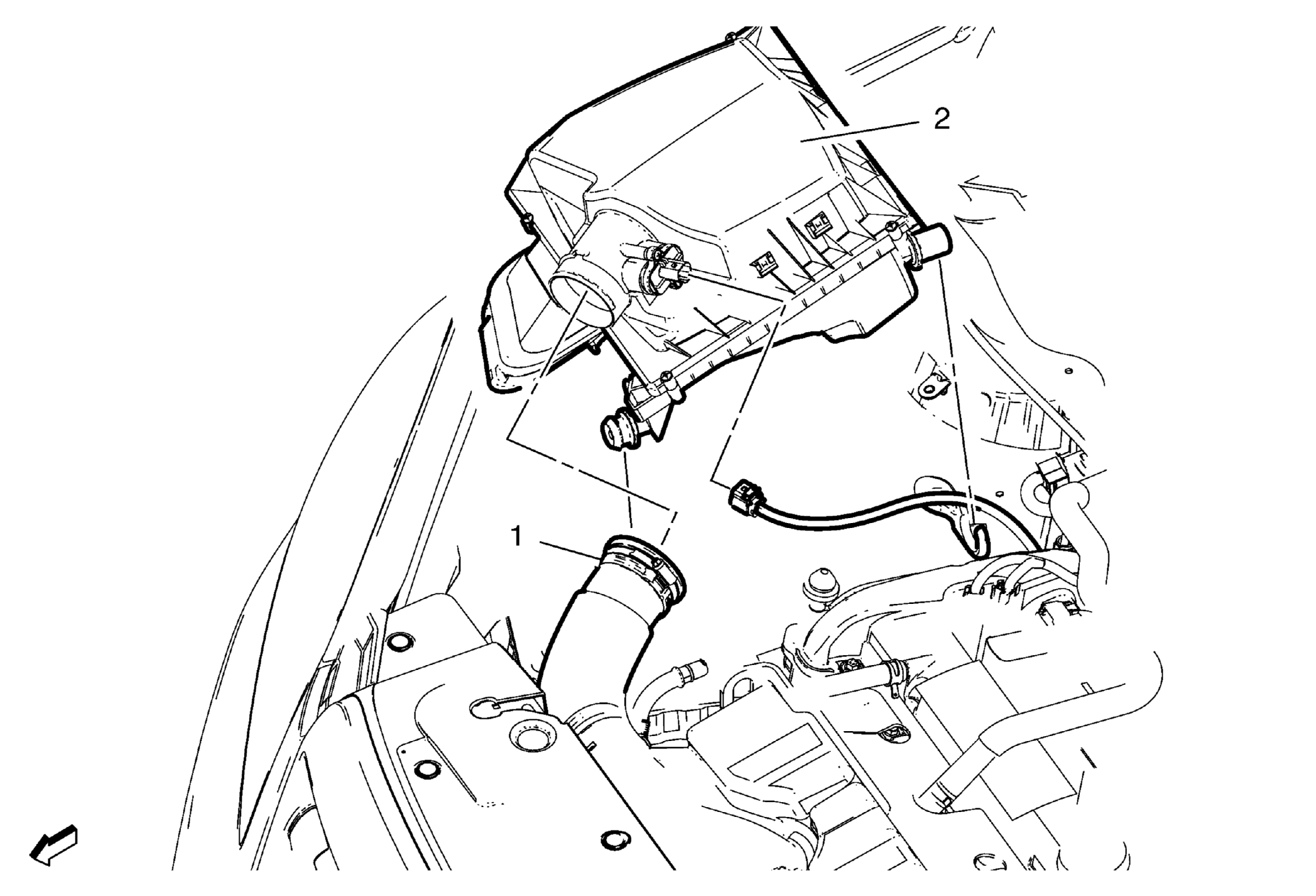

Fig 1: Air Cleaner Assembly & Outlet Duct
GM2549921Courtesy of GENERAL MOTORS COMPANY
Air Cleaner Assembly Replacement

Callout Component Name
1 Air Cleaner Outlet Duct
Procedure
Loosen the clamp and disconnect the duct from the air cleaner assembly.
2 Air Cleaner Assembly

Procedure

  1. Disconnect the mass air flow sensor electrical connector.
  2. Disconnect the water drain hose from the air cleaner assembly if equipped.
